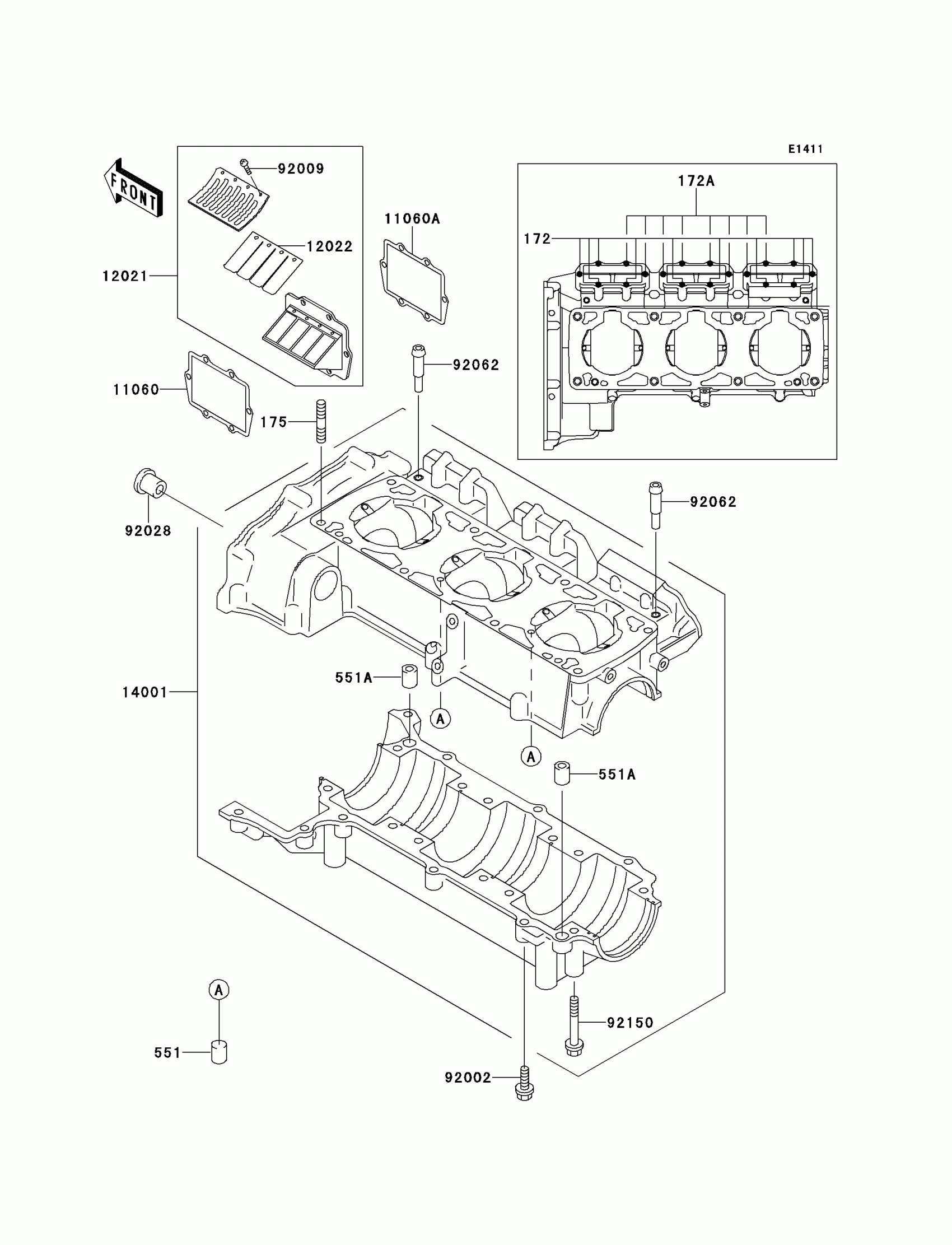

Kawasaki 1100 STX Crankcase Diagram

Description

Price

172

BOLT-STUD,6X20

172R0620

$6.25

172A

BOLT-STUD,6X30

172R0630

Unavailable

175

BOLT-STUD-FINE,10X35

175R1035

$8.41

551

PIN-DOWEL

551R0612

$3.57

551A

PIN-DOWEL

551R1012

$5.71

11060

GASKET,REED VALVE

11060-3717

$14.40

11060A

GASKET,REED VALVE

11060-3757

$14.40

12021

VALVE-ASSY-REED

12021-3709

$161.08

12022

VALVE-REED

12022-3703

$20.43

14001

SET-CRANKCASE

14001-5348

Unavailable

92002

BOLT,6X30

92002-3726

$3.57

92009

SCREW,3X6

92009-1371

$3.34

92028

BUSHING

92028-3718

$7.18

92062

NOZZLE

92062-3705

$6.73

92150

BOLT,8X65

92150-3708

$12.14
