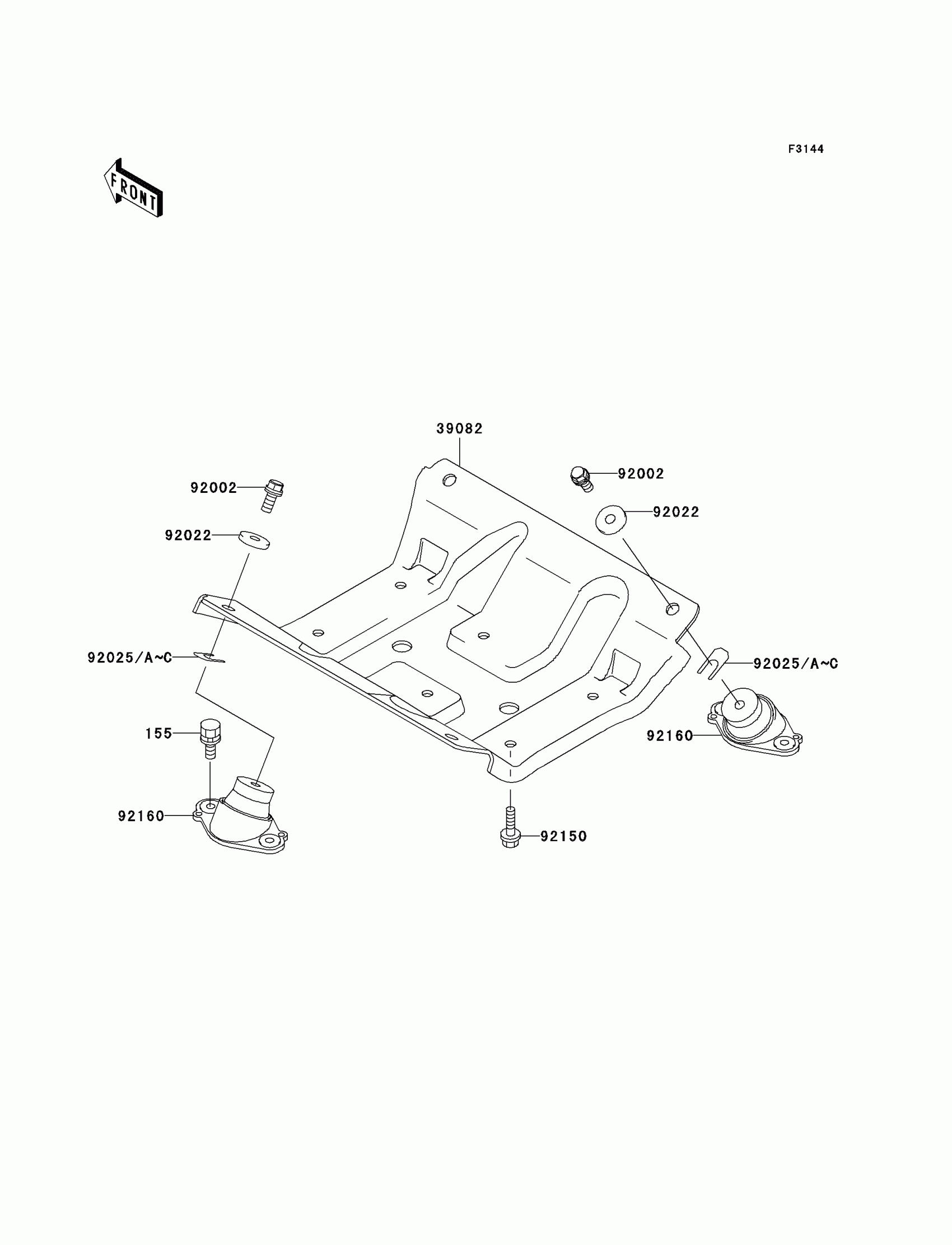

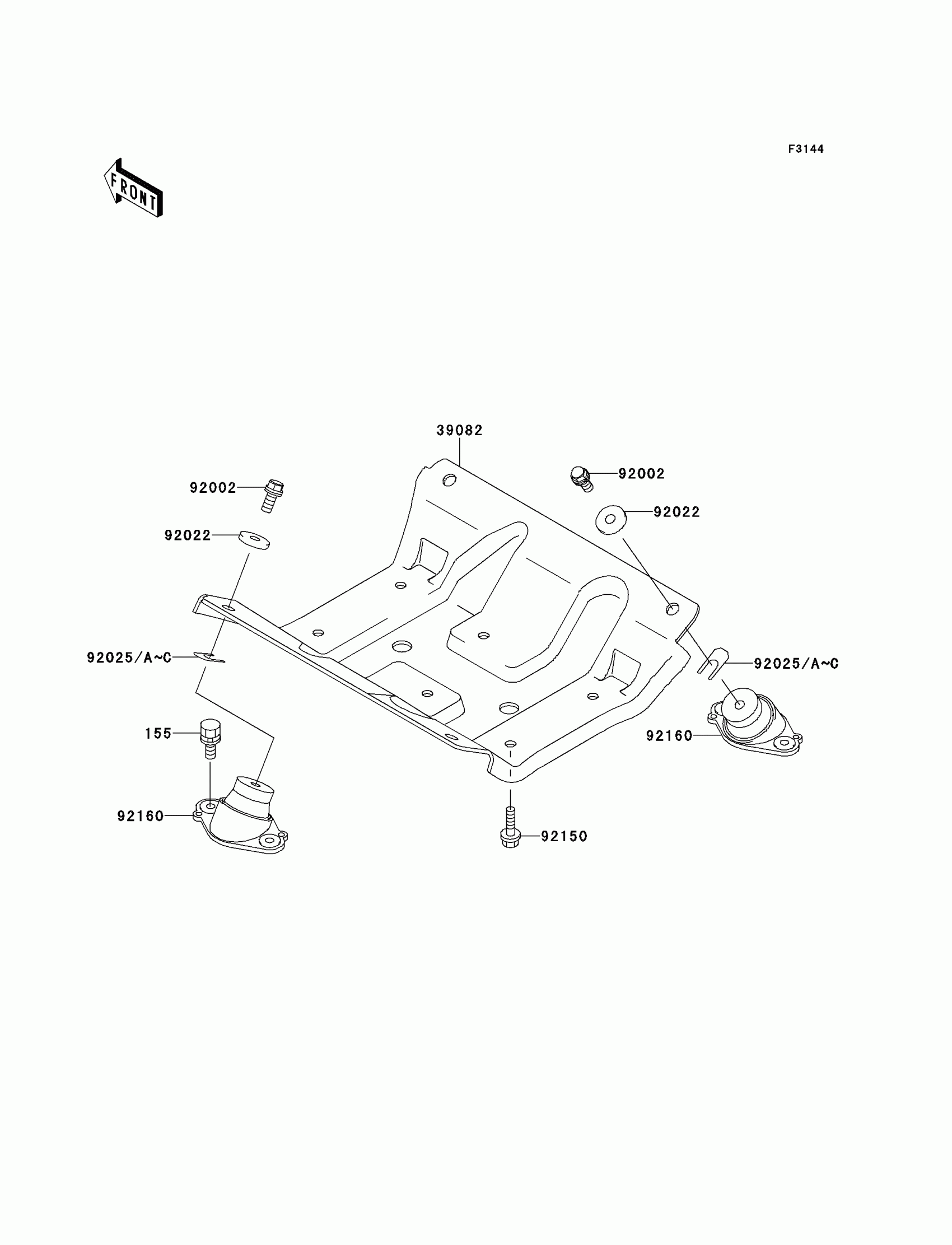

Kawasaki 1100 STX Engine Mount Diagram

#

Description
Price

155

BOLT-WSP-SMALL,8X20

155R0820

$4.81

39082

MOUNT-ENGINE

39082-3710

$166.15

92002

BOLT,10X25

92002-3770

$8.41

92022

WASHER,32X10.5X4

92022-3023

$6.74

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92150

BOLT,10X25

92150-3818

$5.25

92160

DAMPER,ENGINE MOUNT

92160-3838

$100.50
