Description

Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.14

670

"0" RING,36MM

670B3036

$0.84

671

O RING,65MM

671B2565

$6.75

11009

GASKET,TANK CAP

11009-3020

$10.26

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER,TUBE

13091-3758

$10.75

13091B

HOLDER,FILTER

13091-3795

$9.47

27012

HOOK

27012-3802

Unavailable

49019

FILTER-FUEL

49019-3712

$44.32

51004

TANK-FUEL

51004-3721

$152.59

51023

TAP-ASSY,FUEL

51023-3727

Unavailable

51049

CAP-TANK,FUEL

51049-3714

$34.34

59231

FILLER,FUEL TANK

59231-3716

Unavailable

92011

SCREW

92011-562

$1.23

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER

92022-563

$0.90

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3009

$3.25

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92072

BAND,FUEL TANK

92072-3794

Unavailable

92190

TUBE,"RETURN"

92190-3988

$58.32

92191

TUBE,"ON",5.8X10.8X270

92191-3708

$12.17

92191A

TUBE,"ON",5.8X10.8X940

92191-3715

$25.07

92191B

TUBE

92191-3735

Unavailable

92191C

TUBE,5.8X10.8X1000

92191-3736

Unavailable

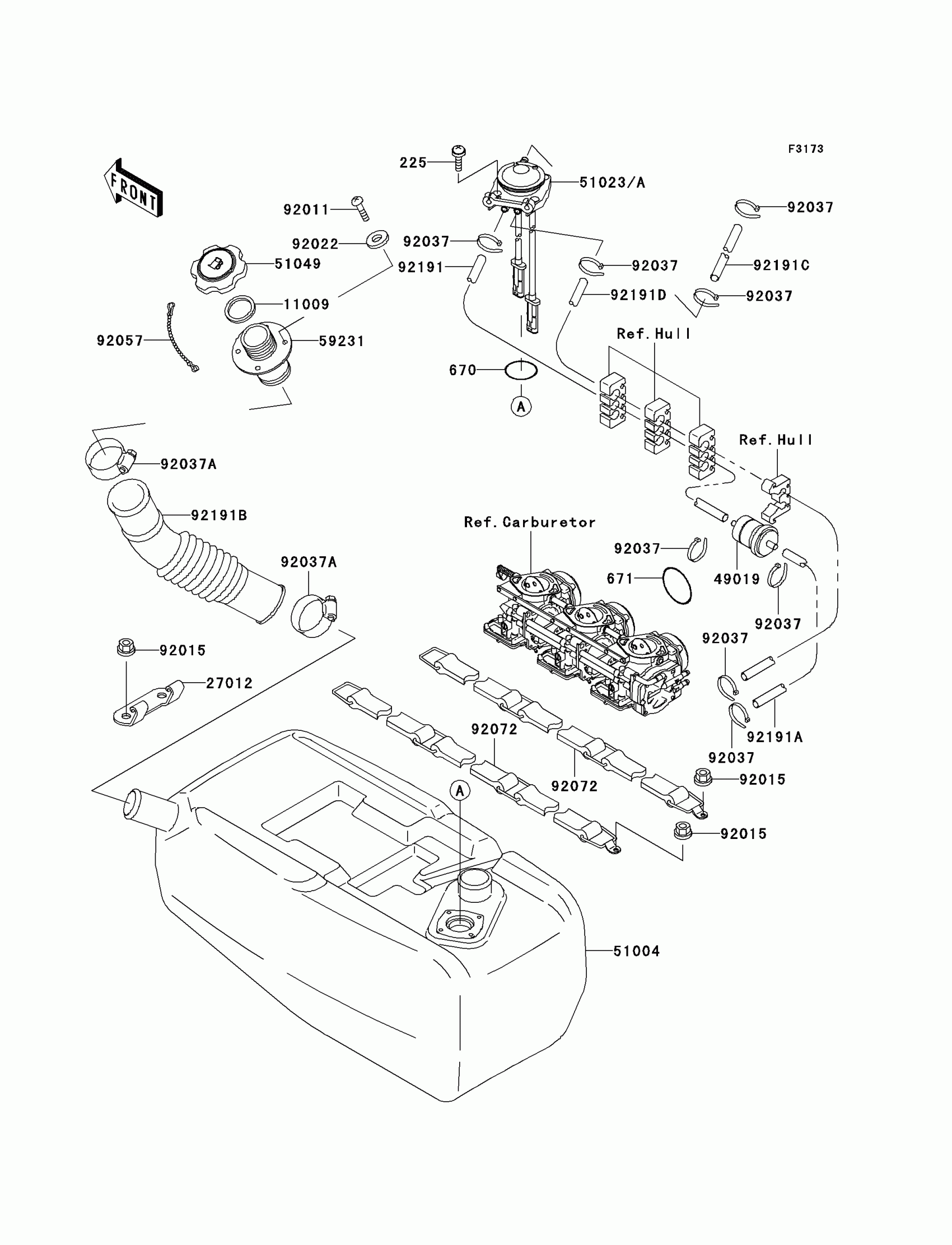

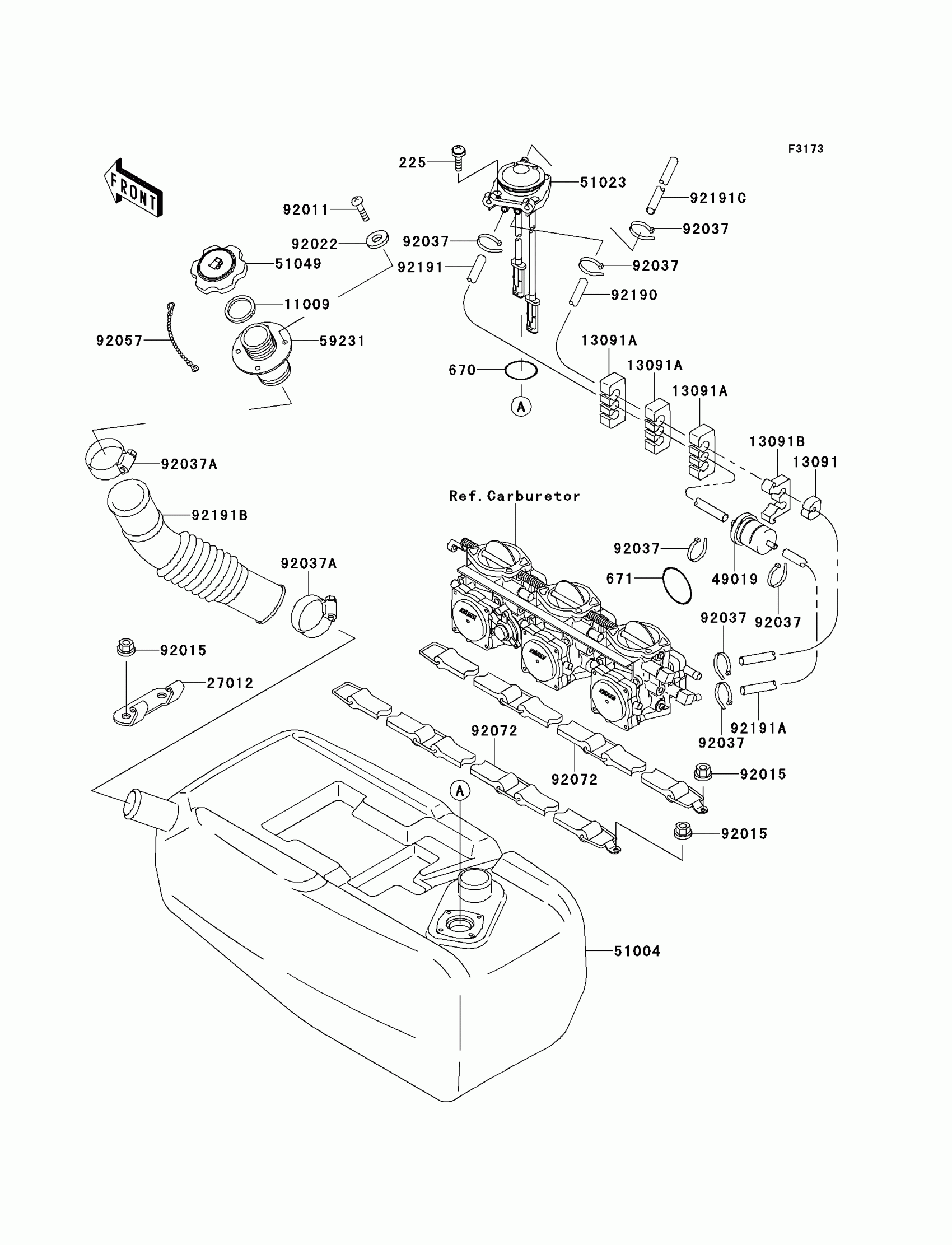

Kawasaki 1100 STX Fuel Tank Diagram

SCREW-PAN-WSP-CROS,5X20

"0" RING,36MM

O RING,65MM

GASKET,TANK CAP

HOLDER

HOLDER,TUBE

HOLDER,FILTER

HOOK

FILTER-FUEL

TANK-FUEL

TAP-ASSY,FUEL

CAP-TANK,FUEL

FILLER,FUEL TANK

SCREW

NUT,6MM

WASHER

CLAMP

CLAMP

CHAIN,COVER,L=100

BAND,FUEL TANK

TUBE,"RETURN"

TUBE,"ON",5.8X10.8X270

TUBE,"ON",5.8X10.8X940

TUBE

TUBE,5.8X10.8X1000
