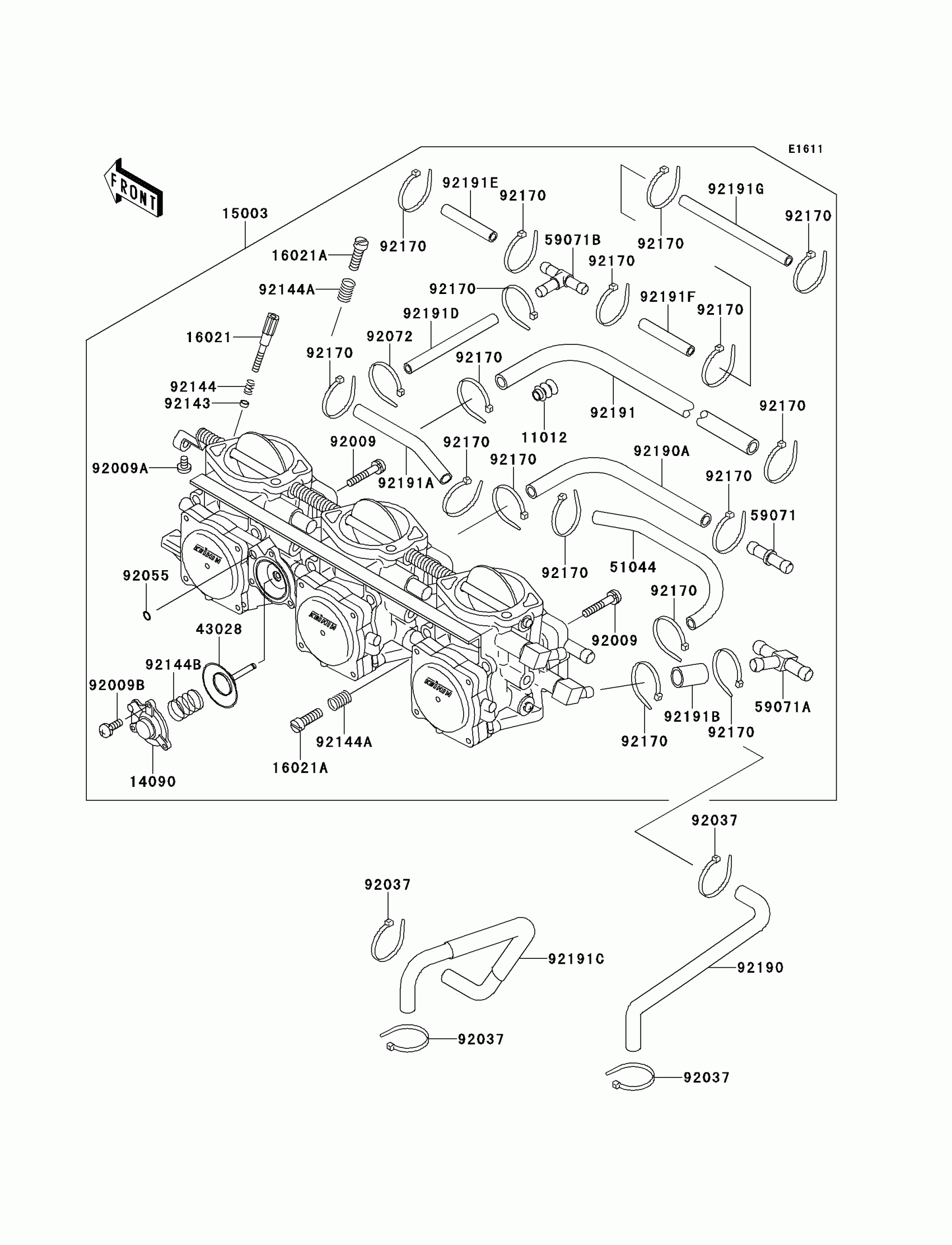

Kawasaki 1100 STX Carburetor Diagram

#

Description
Price

11012

CAP,ACCELERATOR

11012-3793

Unavailable

14090

COVER,ACCELERATOR PUMP

14090-3791

Unavailable

15003

CARBURETOR-ASSY

15003-3722

$1,447.83

16021

SCREW-THROTTLE STOP

16021-3702

Unavailable

16021A

SCREW-THROTTLE STOP

16021-3704

$43.71

43028

DIAPHRAGM,ACCELERATOR PUMP

43028-3710

Unavailable

51044

TUBE-ASSY,5.3X10.5X180

51044-3701

Unavailable

59071

JOINT,PIPE

59071-3740

Unavailable

59071A

JOINT

59071-3741

Unavailable

59071B

JOINT,3WAY,T

59071-3752

$7.76

92009

SCREW,5X28

92009-3783

Unavailable

92009A

SCREW,4X6

92009-3786

$3.98

92009B

SCREW,4X12

92009-3832

Unavailable

92037

CLAMP

92037-1173

$2.58

92055

RING-O,ACCELERATOR PUMP

92055-3747

Unavailable

92072

BAND

92072-3807

Unavailable

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

Unavailable

92144

SPRING,THROTTLE STOP SCREW

92144-3706

$7.41

92144A

SPRING,THROTTLE STOP SCREW

92144-3745

$7.81

92144B

SPRING,ACCELERATOR PUMP

92144-3762

Unavailable

92170

CLAMP,TUBE

92170-3740

$4.61

92190

TUBE

92190-3949

Unavailable

92190A

TUBE

92190-3997

Unavailable

92191

TUBE

92191-3710

Unavailable

92191A

TUBE

92191-3711

$6.69

92191B

TUBE

92191-3712

Unavailable

92191C

TUBE

92191-3784

Unavailable

92191D

TUBE,2.5X7X85

92191-3787

Unavailable

92191E

TUBE,2.5X7X33

92191-3788

Unavailable

92191F

TUBE,2.5X7X60

92191-3789

Unavailable

92191G

TUBE,2.5X7X108

92191-3790

Unavailable
