Description

Price

4000

Chassis Wiring Harness

710009154

$629.99

ACC 1

Housing JAE 2 Circuits

278002856

$14.29

ACC 1

Female Terminal

278002857

$0.92

ACC 1 C

Housing 2 Circuits

515177488

$14.29

ACC 2

Housing JAE 2 Circuits

278002856

$14.29

ACC 2

Female Terminal

278002857

$0.92

ACC 2 C

Housing 2 Circuits

515177488

$14.29

AUX LIGHT

Female Housing, 2 Circuits

515177192

$9.12

AUX LIGHT

Wire Seal

710001163

$7.69

AUX LIGHT

Female Terminal

710001164

$8.89

BAT(+)

Protector Cap

710000393

$9.59

BFS

Connector 2 Pins with CPA

710005827

$23.49

BFS

Female Terminal

515178018

$1.19

BLS

Female Housing, 4 circuits

278003535

$25.99

BLS

Female Terminal

515178572

$2.29

BLS

Female Terminal

515178573

$2.29

CF

Female Housing, 2 Circuits

278000217

$9.59

CF

Wire Seal

278001065

$7.69

CF

Male Terminal | XT Models

278000222

$3.19

CH GND

Open Barrel

278000992

$2.21

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CRZ

Housing

515177178

$15.28

CRZ

Housing

710001853

$15.29

CRZ C

Housing

515177179

$13.70

DLC1

Female Housing 6 Circuits

710002706

$20.49

DLC1

Lock

710002705

$4.44

DLC1

Female Terminal

710005438

$4.29

DLC1

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

ECMB

Terminal

710001728

$6.79

ENG GND

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

F1

Little Fuse, 7.5 Amperes

710000743

$8.49

F2

Little Fuse, 20 Amperes

710000746

$8.49

F3

Little Fuse, 7.5 Amperes

710000743

$8.49

F4

Little Fuse, 15 Ampere

710000745

$8.49

F5

Little Fuse, 20 Amperes

710000746

$8.49

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 15 Ampere

710000745

$8.49

FB

Fusebox Ass'y

710005623

$49.49

FB

Seal Plug

278002880

$7.86

FB

Cap

710001631

$1.09

FB

Seal Plug

278002880

$7.86

FB

Cap

710001631

$1.09

FB

Wire Seal

278001065

$7.69

FB

Wire Seal

278000218

$4.39

FB

Seal Joint

710003134

$1.39

FB

Terminal Joint

710001905

$2.09

FB

Seal Joint

710007566

$4.65

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FB

Terminal

710001630

$2.09

FB

Terminal

710001906

$2.54

FB

M Terminal

710003135

$2.79

FB C

Fuse Box Cover Ass'y

710008071

$30.49

FB C

Little Fuse, 5 Amperes

710000742

$8.79

FB C

Little Fuse, 7.5 Amperes

710000743

$8.49

FB C

Little Fuse, 10 Amperes

710000744

$8.79

FB C

Little Fuse, 15 Ampere

710000745

$8.49

FB C

Little Fuse, 20 Amperes

710000746

$8.49

FLF

Female Housing, 3 Circuits

515178538

$16.99

FLF

Female Terminal

278002857

$0.92

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FRF

Female Housing, 3 Circuits

515178538

$16.99

FRF

Female Terminal

278002857

$0.92

HIC

Housing 6 Circuits

278002894

$13.77

HIC

Sealing Cap

278002860

$1.79

HIC

Female Terminal

515178014

$2.39

HIC

Female Terminal

515178018

$1.19

HN

Female Terminal

409010300

$4.39

HO2S1

Housing

710002466

$3.19

HO2S1

Connector Holder

710002033

$3.39

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

J1

Fuse, 40 AMP

710001047

$11.80

J2

Fuse, 25 AMP

710001046

$3.91

J4

Fuse 30 amp.

710001200

$7.20

J5

Fuse, 50 AMP

710001048

$5.08

LHL

Female Housing

710004010

$6.79

LHL

Terminal

515177217

$15.79

LOCK

Female Housing

515177441

$17.59

LOCK

Female Terminal

278002857

$0.92

LOCK C

Male Housing, 4 Circuits

515177442

$13.18

MSL

Block 12

515178578

$13.16

MSL

Sealing Cap

278002860

$1.79

MSL

Male Terminal

515178013

$3.19

MSR

Male Housing Connector 4 Pins

515178347

$14.28

MSR

Male Terminal

515178013

$3.19

PGV

Female Housing 2 Way

710005327

$3.59

PGV

Seal

278001482

$3.19

PGV

Female Terminal

278001481

$3.49

PL

Female Terminal

409010300

$4.39

PRS

Connector 2 Pins with CPA

710005827

$23.49

PRS

Female Terminal

515178018

$1.19

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Seal

710000881

$17.99

REG

Seal

278003685

$16.79

REG

Female Terminal

710000877

$9.12

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RHL

Female Housing

710004010

$6.79

RHL

Terminal

515177217

$15.79

RLFL

Female Housing

515177441

$17.59

RLFL

Female Terminal

278002857

$0.92

RRFL

Female Housing

515177441

$17.59

RRFL

Female Terminal

278002857

$0.92

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

SAS

Housing

710003731

$8.59

SAS

Plug

710001938

$2.46

SAS

Wire Seal

710001118

$1.16

SAS

Female Terminal

710003862

$2.43

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89

STS (+)

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

STS (+)

Protector Cap

710000393

$9.59

TAS

Housing 6 Circuits

278003866

$13.75

TAS

Male Terminal

515178013

$3.19

USB

Female Terminal

409010300

$4.39

VCM

Connector Cover, 90 Degree

710005425

$2.53

VCM

Housing

710002768

$17.59

VCM

Plug

710001258

$3.29

VCM

Wire Seal

278000999

$3.19

VCM

Wire Seal

710001159

$6.35

VCM

Wire Seal

710006230

$1.49

VCM

Female Terminal

710000837

$5.39

VCM

Terminal

710002773

$2.09

VCM

Terminal

710002775

$0.74

VSS 1

Connector 2 Pins

710005669

$2.24

VSS 1

Seal

710005689

$2.09

VSS 1

Female Terminal 18-20 AWG

515178348

$2.09

VSS 2

Connector 2 Pins

710005669

$2.24

VSS 2

Seal

710005689

$2.09

VSS 2

Female Terminal 18-20 AWG

515178348

$2.09

VSS 3

Connector

710007484

$12.16

VSS 3

Seal

710005689

$2.09

VSS 3

Female Terminal 18-20 AWG

515178348

$2.09

YRS

Housing

710003730

$14.83

YRS

Wire Seal

710001118

$1.16

YRS

Female Terminal

710003862

$2.43

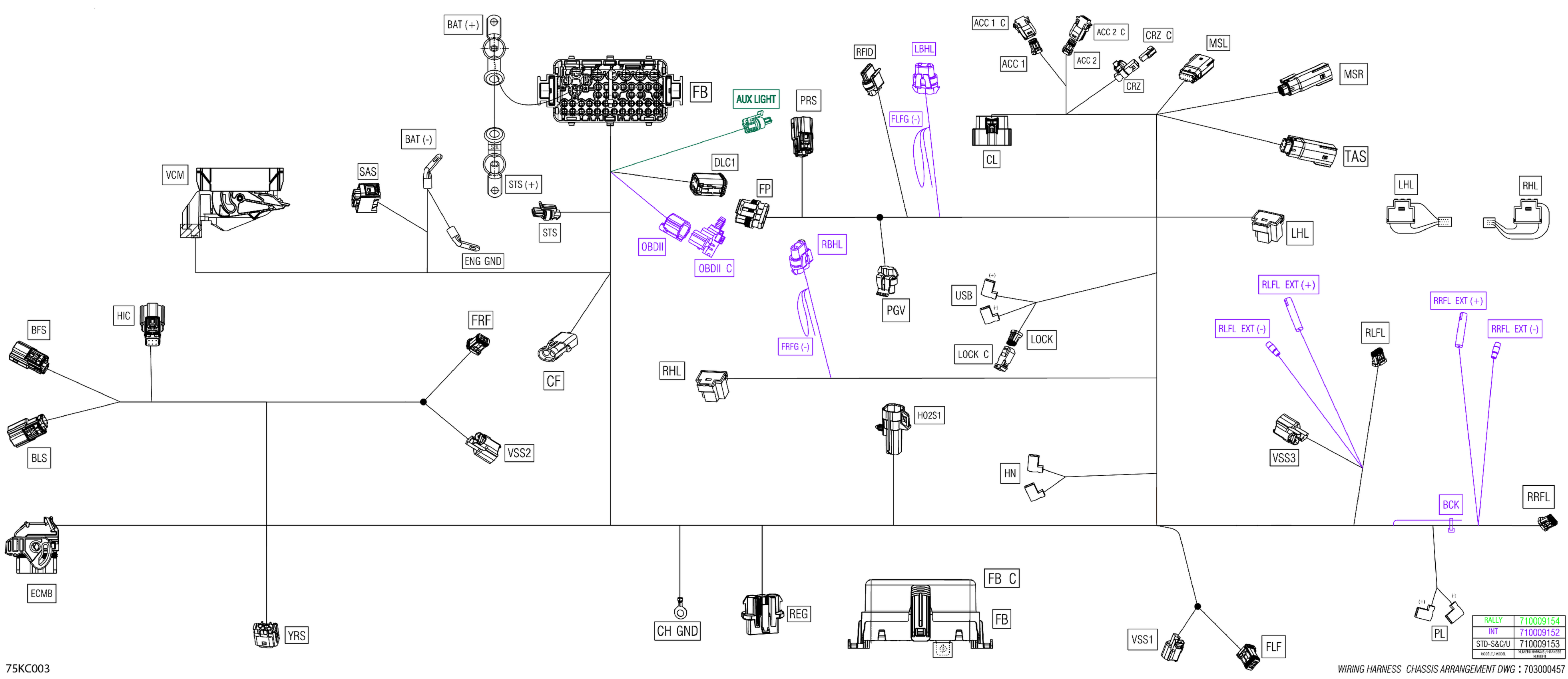

Can-Am RYKER RALLY 900 ACE, North America (F3PA), 2023 Electric - Main Harness - 710009154 Diagram

Chassis Wiring Harness

Housing JAE 2 Circuits

Female Terminal

Housing 2 Circuits

Housing JAE 2 Circuits

Female Terminal

Housing 2 Circuits

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Protector Cap

Connector 2 Pins with CPA

Female Terminal

Female Housing, 4 circuits

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal | XT Models

Open Barrel

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Housing

Housing

Housing

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Female Terminal

Female Terminal

Female Terminal

Terminal

Ring Terminal M6 x 45° Wire # 8

Little Fuse, 7.5 Amperes

Little Fuse, 20 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Fusebox Ass'y

Seal Plug

Cap

Seal Plug

Cap

Wire Seal

Wire Seal

Seal Joint

Terminal Joint

Seal Joint

Female Terminal

Female Terminal

Terminal

Terminal

M Terminal

Fuse Box Cover Ass'y

Little Fuse, 5 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Female Housing, 3 Circuits

Female Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Female Housing, 3 Circuits

Female Terminal

Housing 6 Circuits

Sealing Cap

Female Terminal
