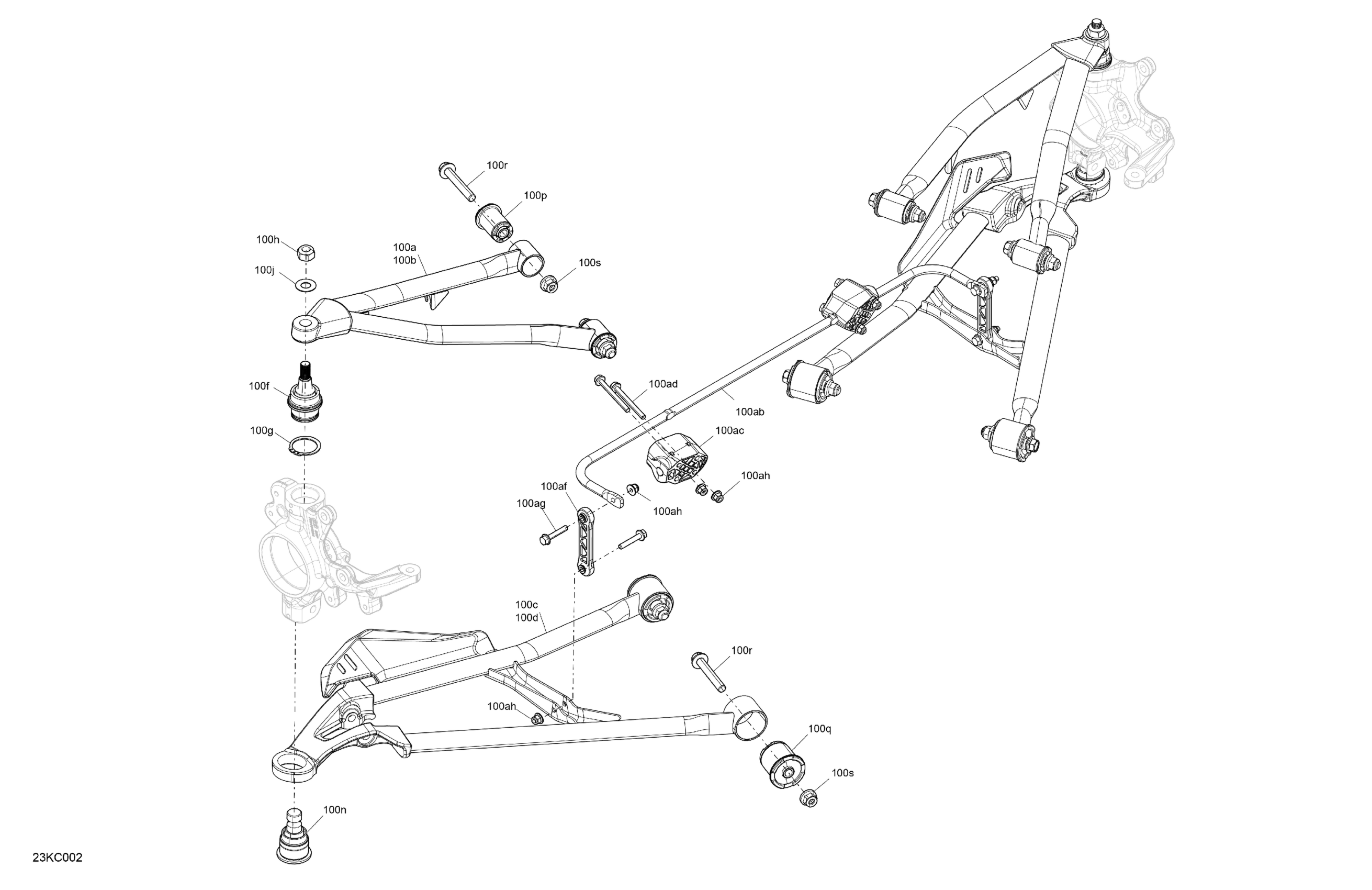

Can-Am RYKER RALLY 900 ACE, North America (F3PA), 2023 Suspension - Front Diagram

Description

Price

100a

LH Upper Arm

706202644

$158.99

100b

RH Upper Arm

706202645

$158.99

100c

LH Lower Suspension Arm

706204614

$158.99

100d

RH Lower Suspension Arm

706204615

$158.99

100f

Ball Joint

706203147

$53.99

100g

Circlip

293370035

$2.64

100h

Hex Elastic Nut M12 X 1.25

232521464

$2.11

100j

Hardened Washer

706200281

$2.85

100n

Ball Joint

706202508

$42.49

100p

Upper Suspension Arm Bushing

706202549

$13.76

100q

Lower Suspension Arm Bushing

706203143

$13.76

100r

Hex. Flange Screw M10 X 65

207606556

$3.91

100s

Flange Elastic Nut M10

233201466

$3.17

100ab

Sway Bar

706202710

$28.49

100ac

Bushing

706204465

$9.21

100ad

Hex. Flange Screw M6 X 60

207666044

$1.47

100af

Sway Bar Double Joint Link

505072204

$21.99

100ag

Hex. Flange Screw M6 X 35

207663554

$2.11

100ah

Hex. Flange Elastic Nut M6

233261494

$1.58
