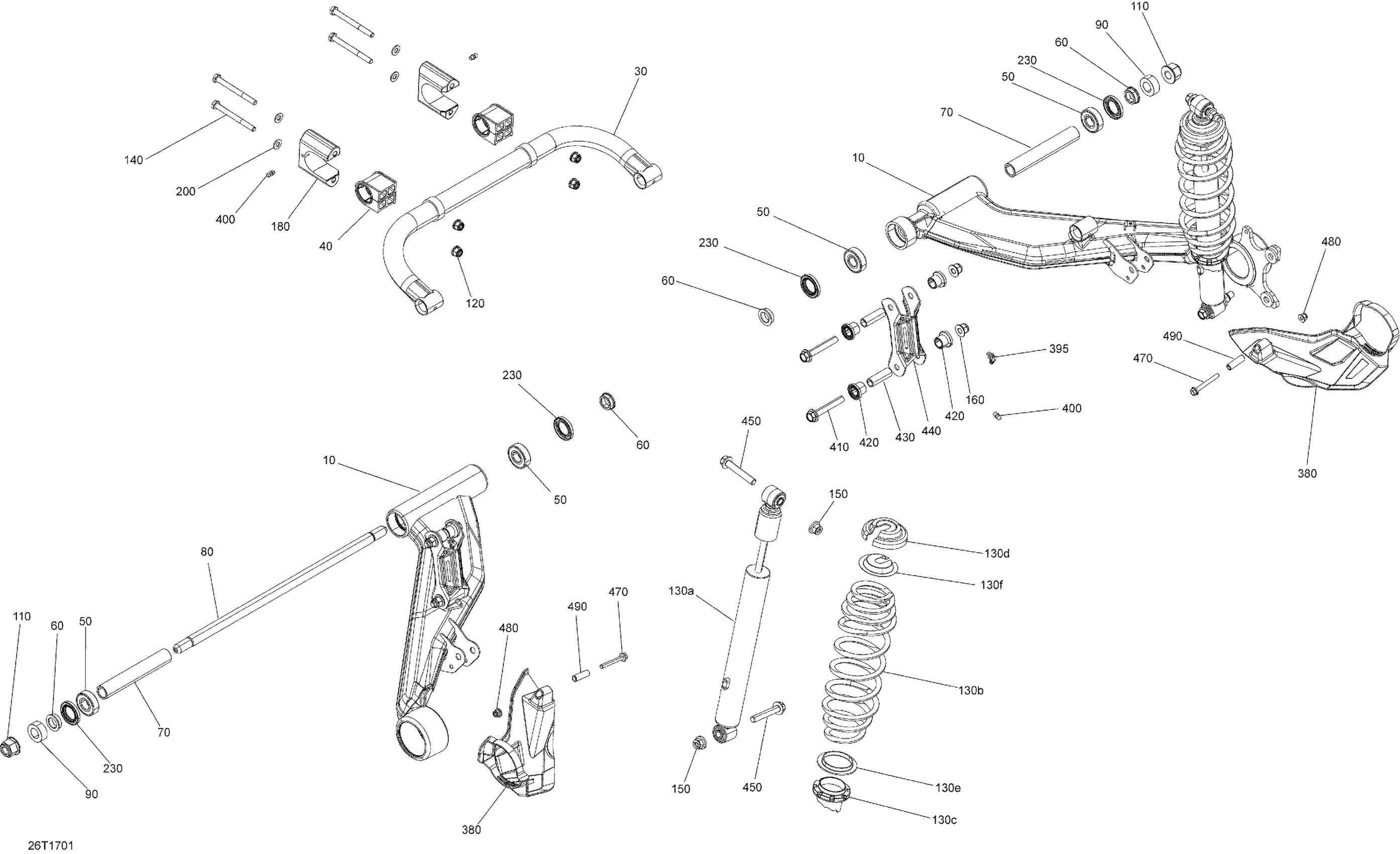

Can-Am 005 - Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 08- Rear Suspension - All Models Diagram
#
10
Black, LH Rear Swing Arm
706001646
Unavailable
10
Black, RH Rear Swing Arm
706004525
Unavailable
30
Sway Bar
706001678
Unavailable
40
Stabilizer Bar Bushing
706004640
Unavailable
50
Ball Bearing
293350145
Unavailable
60
Spacer
706001282
Unavailable
70
Spacer
706002258
Unavailable
80
Axial Pivot M16
706001664
Unavailable
90
Flat Washer M17
250200112
Unavailable
110
Hex. Flange Elastic Nut M16
233211466
Unavailable
120
Hex. Flange Elastic Nut M8
233281434
Unavailable
130a
Rear Shock
706001524
Unavailable
130a
Rear Shock
706000958
Unavailable
130b
Deep Black, Compression Spring
706004873
Unavailable
130b
Deep Black, Compression Spring
548874840
Unavailable
130b
Black, Spring | DPS
706002427
Unavailable
130b
Red Spring | Model XMR
706002494
Unavailable
130c
Adjuster Ring
706002356
Unavailable
130c
Adjustment Cam
505073625
Unavailable
130d
Spring Stopper
706200881
Unavailable
130e
Spring Guide
503187500
Unavailable
130f
Cap
706200785
Unavailable
140
Hex. Screw M8 X 85
250001035
Unavailable
150
Hex. Flange Elastic Nut M10
233201436
Unavailable
160
Hex. Flange Elastic Nut M10
233201414
Unavailable
180
Bushing Holder
706001099
Unavailable
200
Flat Washer M8
234081430
Unavailable
230
Seal
293200144
Unavailable
380
LH Protector
706002482
Unavailable
380
RH Protector
706002483
Unavailable
395
Grease Fitting 90°
293550056
Unavailable
400
Grease Fitting
250000315
Unavailable
410
Hex. Flange Screw M10 X 65
207606536
Unavailable
420
Bushing
706200181
Unavailable
430
Sleeve
706201587
Unavailable
440
Sway Bar Linkage
706001020
Unavailable
450
Hex. Flange Screw M10 X 6
207606046
Unavailable
470
Hex. Flange Screw M6 X 50
207665044
Unavailable
480
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
490
Bushing
707001376
Unavailable
