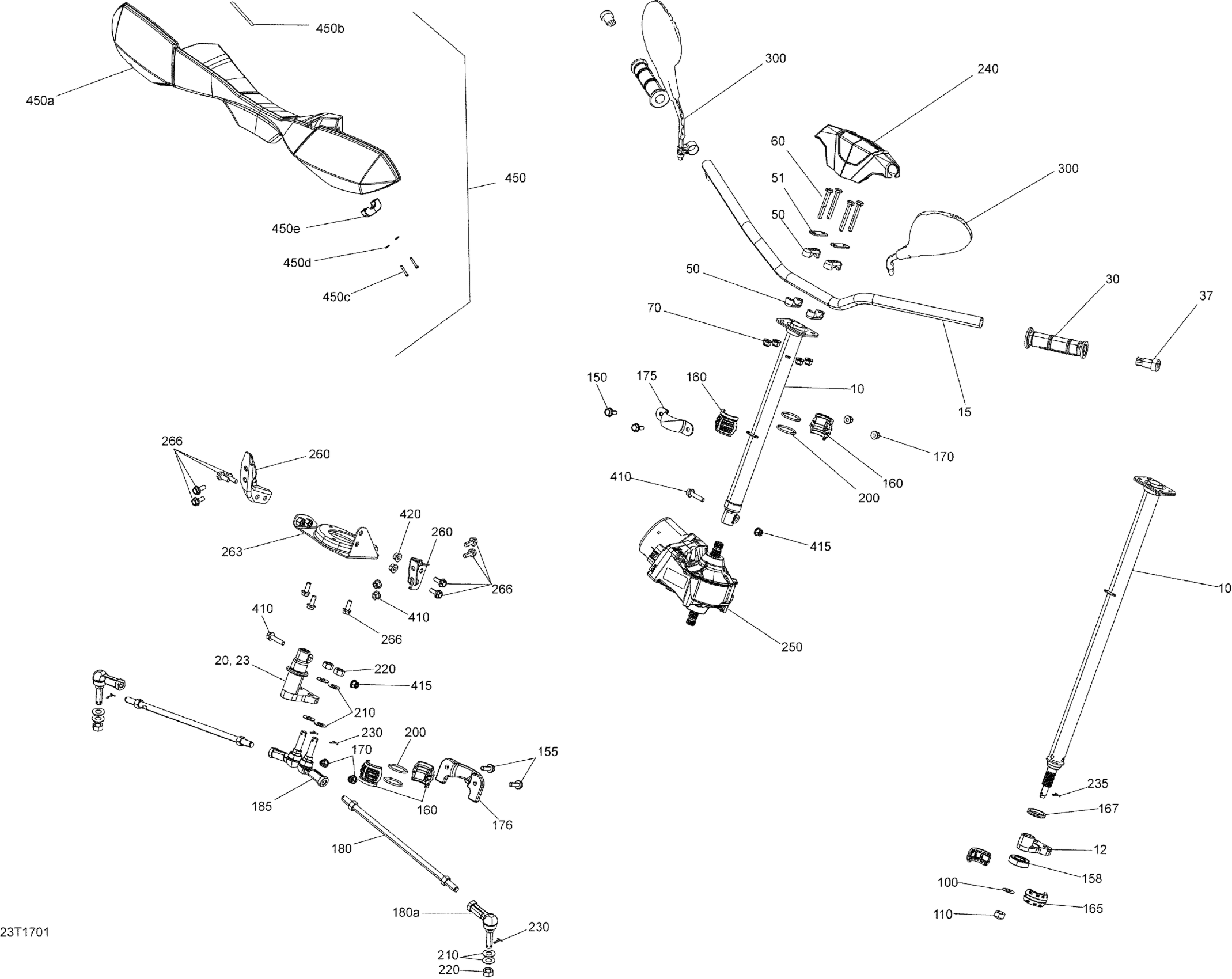

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Steering - All Models Diagram

#

Description
Price

10

Black, Upper Main Tube | Package-STD

709401545

$149.99

10

Main Tube Kit | Model With DPS

703501108

$74.99

12

Pitman Arm | Package-STD

709401542

$28.99

15

Black, Handle Bar

709401240

$69.99

20

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

23

Pitman Arm | Model XMR

703501161

$43.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hardened Washer

706200281

$2.85

110

Hex. Flange Elastic Nut M12

250000047

$1.90

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682534

$2.11

158

Ball Bearing | Package-STD

503190396

$14.30

160

Spherical Half Bushing

709400783

$7.65

165

Spherical Half Bushing | Package-STD

709401370

$7.23

167

Seal

293250177

$7.29

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180>180a

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

180>180a

Rod-Tie Ass'y | Incl 36

703501037

$110.99

180a

LH Ball Joint

709402303

$36.99

185

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

235

Cotter Pin

250400034

$2.11

240

Cover

709400939

$24.99

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

LH Power Steering Bracket | Model With DPS

709402184

$18.49

260

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

300

LH Mirror | Europe

709400406

$32.99

300

RH Mirror | Europe

709400407

$47.49

410

Hex. Flange Screw M8 X 35

207683544

$1.69

415

Hex. Flange Elastic Nut M8

233281414

$1.47

420

Hex. Flange Nut M8

233081416

$1.15

450>450e

Handle Guard Ass'y, XT

703100352

$98.49

450a

Handle Bar Protector | XT

709400822

$90.99

450b

DPS Decal

704902966

$14.49

450c

Hex. Flange Screw K40 X 25

241142560

$2.64

450d

Flat Washer | XT

211200035

$0.55

450e

U-Clamp | XT

517303264

$11.99
