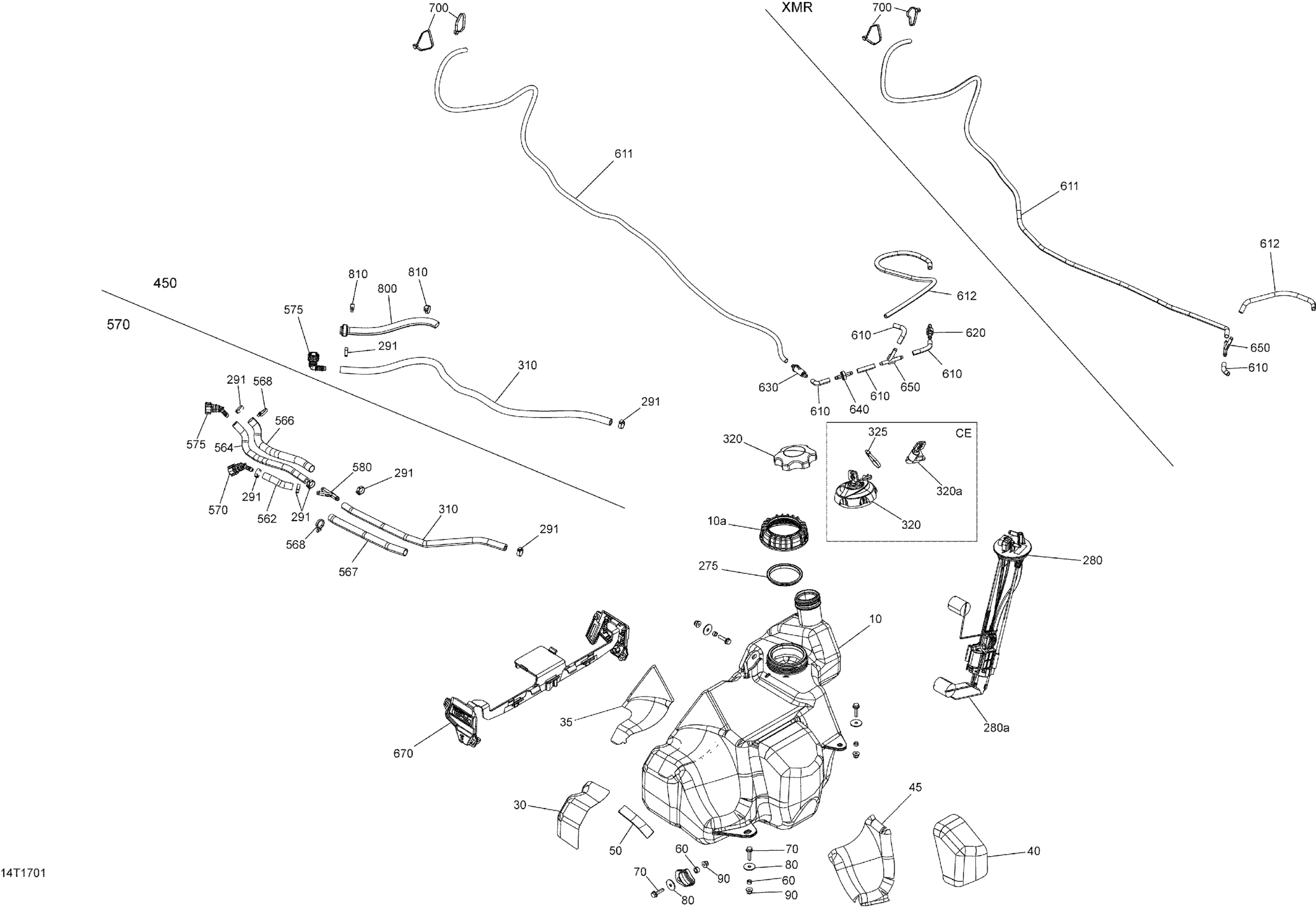

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Fuel System - All Models Diagram

#

Description
Price

10>10a

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

10a

Fuel Pump Module Nut

709000328

$13.75

30

Heat Reflective Sheet

709000381

$6.99

35

Heat Reflective Sheet

709000387

$5.09

40

Heat Reflective Sheet

709001071

$10.49

45

Heat Reflective Sheet

709000388

$6.39

50

Rubber Pad

293830172

$2.89

60

Bushing | DS 650 X

293900104

$5.50

70

Hex. Flange Screw M6 X 25

207662544

$0.64

80

Washer

224060251

$0.58

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

275

Seal

709000208

$14.99

280>280a

Fuel Pump

709000461

$340.99

280a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

291

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Was 709000163 Fuel Line

219704440

$28.99

320

Fuel Tank Cap

513033025

$24.49

320>320a

Lock Device Kit | Europe Model

707001750

$67.99

320a

Padlock with Key

707000666

$25.99

325

Tie-Rap 180 mm

414115200

$0.11

562

Was 709000163 Fuel Line

219704440

$28.99

564

Was 709000163 Fuel Line

219704440

$28.99

566

Tubing 16 Mm 1000Mm Long

219704408

$7.49

567

Tubing 16 Mm 1000Mm Long

219704408

$7.49

568

Tie Wrap 142 mm

293750002

$1.25

570

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

575

Quick Attach 90°

275500700

$16.49

575

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

580

Y-Fitting, 5/16''

293710136

$6.49

610

Polyurethane Hose 10000Mm Long

219704410

$56.99

611

Polyurethane Hose 10000Mm Long

219704410

$56.99

612

Polyurethane Hose 10000Mm Long

219704410

$56.99

620

Check Valve

513033469

$31.99

630

Filter

709000330

$7.79

640

Check Valve

275500398

$10.99

650

Y-Fitting

293710059

$9.69

670

Hose Support Ass'y

709000359

$14.31

700

Tie-Rap 180 mm

414115200

$0.11

800

Tube 25Mm 1000Mm Long | Engine 450

219704350

$53.99

810

Tie-Rap 180 mm

414115200

$0.11
