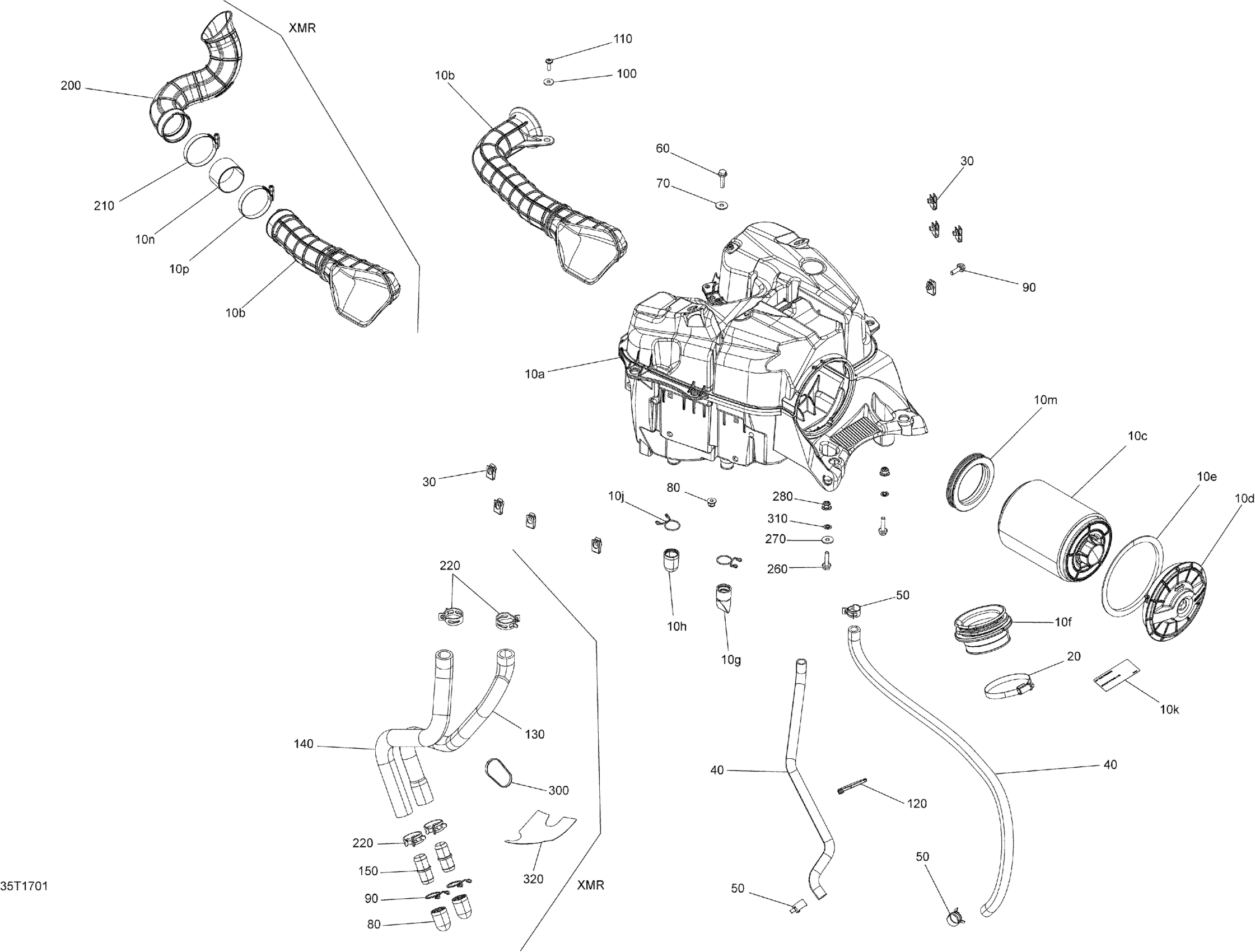

Can-Am Outlander L - 570 EFI - XMR Package 0003MHA00 0003MHB00 Air Intake Silencer - All Models Diagram

Description

Price

10a

Welded Air Box

707800599

Unavailable

10b

Air Intake Hose

707800375

$55.99

10b

Air Intake Hose

707800501

$55.99

10c

Air Filter

707800371

$40.99

10d

Intake Silencer Cap Ass'y

715002174

$17.49

10e

Gasket

293300175

$13.99

10f

Intake Adaptor

707800333

$19.99

10g

Drain Tube

707800404

$2.89

10h

Drain Tube

707800080

$8.29

10j

Retainer Clip

707800278

$13.99

10k

Air Filter Maintenance Decal

707800373

Unavailable

10m

Air Filter Adaptor

707800470

$19.99

10n

Ring

707800504

$53.99

10p

Gear Clamp

293650230

$18.49

Norma Clamp

293650091

$11.12

Panel Nut M6 X 1.0

250100198

$2.11

Vent Hose

707800453

$25.99

Hose

707800586

$19.99

Norma Clamp

293650110

$4.54

Hex. Flange Screw M6 X 25

207662534

$2.11

Flat Washer

250200082

$0.42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

100

Washer | DS 650 X

391301600

$0.48

110

Torx Screw K50 X 16

250000720

$1.69

120

Tie-Rap 180 mm

414115200

$0.11

130

Formed Hose

707800510

$36.99

140

Formed Hose

707800511

$36.99

150

Straight Fitting

270001073

$11.12

200

Air Intake Front

707800528

$38.99

210

Norma Clamp

293650077

$7.41

220

Norma Spring Clamp

293650109

$4.12

260

Hex. Flange Screw M6 X 25

207662534

$2.11

270

Flat Washer

250200082

$0.42

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

Tie-Rap 180 mm

414115200

$0.11

310

Push Nut

732610072

$2.19

320

Heat Shield

707002106

$10.49
