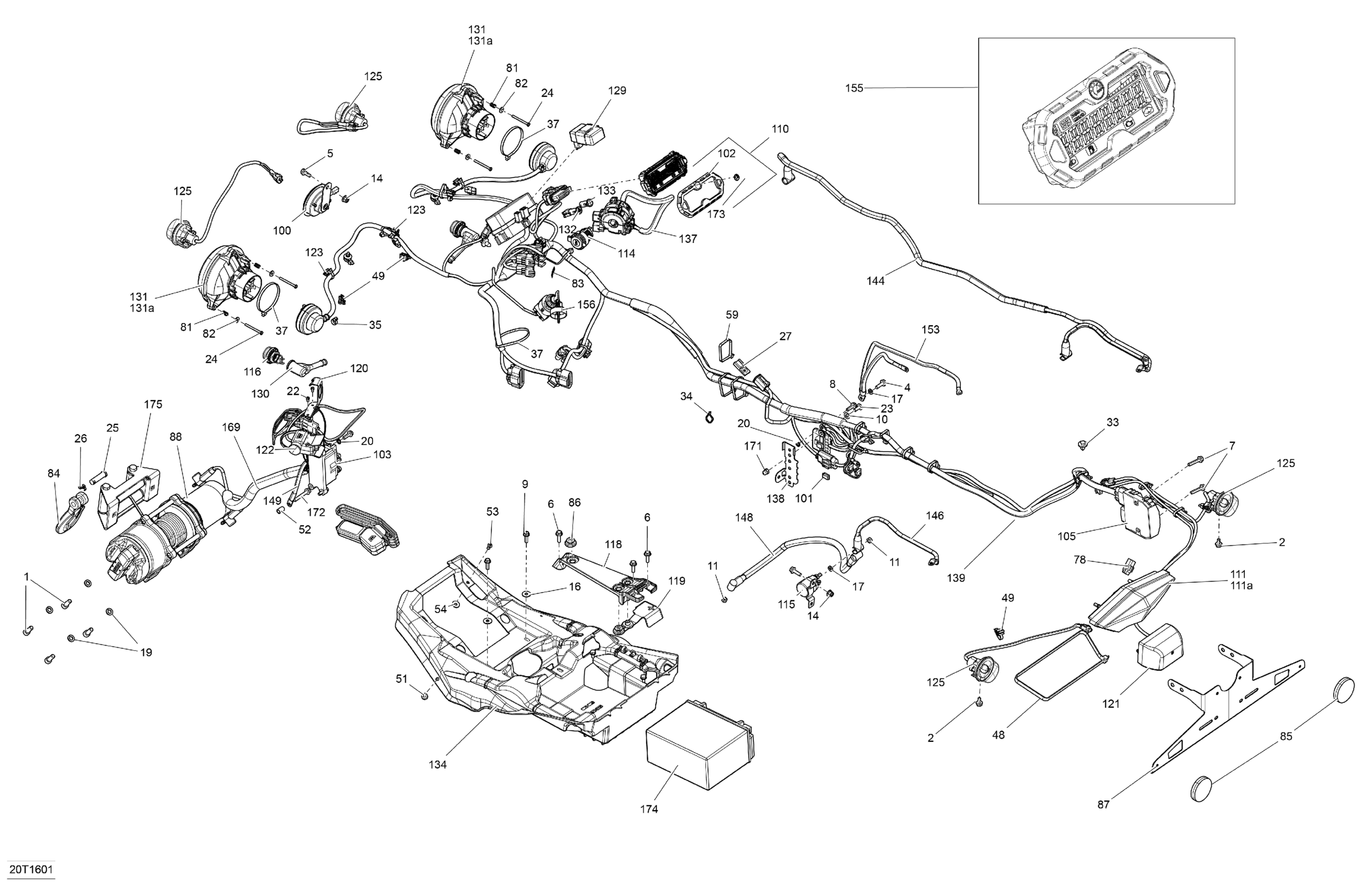

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Electrical System - All Models Diagram

Socket Head Screw M8 X 20

205082044

$1.09

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Screw M6 X 20

210262040

$2.06

Hexagonal Head Screw

210262050

$1.74

Flat Washer

224061121

$0.44

Elastic Stop Nut M6

232561434

$1.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer 6 mm

234062410

$0.64

Stainless Steel Flat Washer

234062670

$1.74

Lock Washer Helical M6

234161601

$0.92

Lock Washer 8 mm

234181401

$0.89

External Serrated Lock Washer 6 mm

234461608

$0.92

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

Torx Head Screw M6 X 16

250000717

$1.74

Hex. Screw K40 X 45

250000718

$1.74

Clevis Pin

250400021

$11.83

Cotter Pin

250400022

$8.66

Clip

270000141

$8.33

Mount Dart

293730040

$0.86

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Tie-rap 627 mm

293750041

$0.91

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Rubber Bumper

293830005

$5.33

Sleeve

293900078

$12.68

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Tie-Rap 180 mm

414115200

$0.09

Male Housing, 3 Circuits

515175494

$15.35

Spring

517168600

$6.91

Flat Washer

517225900

$0.17

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Hook Kit

705014949

$27.66

Red Reflector

705011221

$12.32

Stopper Rubber

705014429

$6.09

Plate Support | Model- Europe

705007449

$25.35

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Cable Bracket

707001280

$12.17

Horn

710004791

$37.66

Clip

710000992

$4.00

Trim Ring Ass'y

710001183

$18.43

Winch Solenoid | XT Models

710001000

$117.66

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Trim Ring Ass'y

710001183

$18.43

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$73.82

Bulb

520000758

$7.49

DC Outlet

710001248

$31.17

Starter Relay

710007777

$46.89

Day Light | Europe

710001726

$36.89

Retaining Plate

710009129

$7.60

Battery Cable Cap

710006729

$7.37

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$9.11

License Plate Light | Europe

710005563

$124.58

Winch Switch | XT, XTP, XMR, LTD,

710002724

$161.51

Tie-Rap Clip

710002896

$4.60

Flasher | Europe

710002964

$35.14

Flasher Unit

710003239

$78.43

Cap Protector | Model-Europe

710003269

$10.98

Low Beam

710003900

$106.12

Bulb, 12V 35/35W

710000871

$32.28

Pilot Lamp | Model-Europe

710003909

$23.05

Pilot Lamp Cap

710003910

$3.85

Battery Support

710008370

$46.12

Multi-Function Handle | Package STD Except Europe Model

710004618

$78.43

Multi-Function Handle | Except Model-Europe

710004617

$83.05

Multi-Function Handle | Except Model-Europe

710004617

$83.05

Multi-Function Handle | Except Model-Europe

710004617

$83.05

Multi-Function Handle

710004040

$166.12

Socket Head Screw M5 X 35

205053588

$1.56

Connector Bracket

710004118

$5.52

Wiring Harness Assembly | Includes 1 To RRF

710004331

$124.58

Wiring Harness Ass'y | Includes 1 to SS2

710004595

$946.12

Connector Ass'y

710004375

$32.28

Positive Cable

710004376

$46.12

Positive Cable

710004377

$27.66

NEGATIVE HARNESS - Call your local BRP dealership | Package Hunter

710004379

Unavailable

Ground Cable

710004380

$18.43

Positive Cable | Engine 450

710004381

$18.43

Ground Cable

710004382

$18.43

Speedometer

710005087

$373.82

Button

715900265

$12.68

Ignition Switch With Key

710002323

$70.17

Ignition Switch With Key

710002323

$70.17

Switch_Ignition | Europe Model

710007866

$64.58

Wiring Harness Ass'y | Includes 1 to SS2

710004595

$946.12

WIRING HARNESS_WINCH - Call your local BRP dealership | Package Hunter

710004616

$36.89

Domed Nut M6

232361493

$1.77

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.85

BRP Logo13 mm

704904615

$9.66

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Fairlead_Roller Kit

715007699

$78.43

PORTABLE HEADLAMP - Call your local BRP dealership | Package Hunter

715000007

Unavailable
