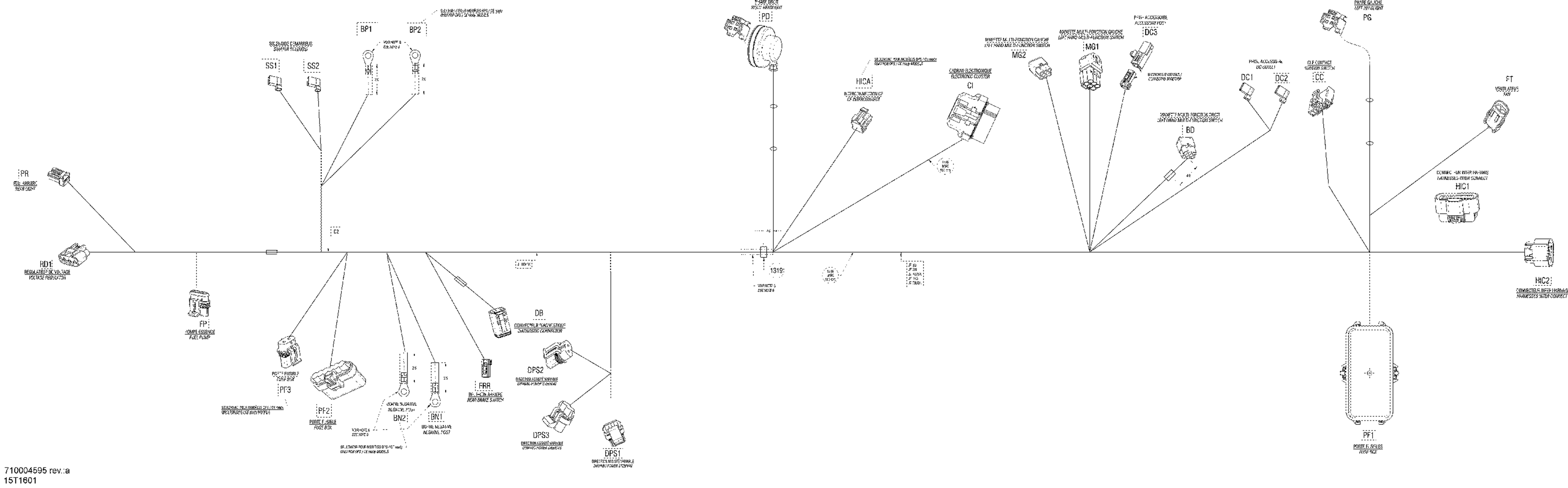

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Electrical Harness - All Models Diagram

#

Description
Price

1

Wiring Harness Ass'y | Includes 1 to SS2

710004595

$886.54

1

Wiring Harness Assembly | Includes 1 To RRF

710004331

$117.88

BD

Female Housing, 6 Circuits

710000081

$7.88

BD

Cap

710000080

$6.28

BD

Wire Seal

710000402

$4.28

BD

Female Terminal

409012100

$3.73

BN1

Terminal

710000913

$5.30

BN2

Open Barrel

278000992

$1.79

BP1

Terminal

710000913

$5.30

BP2

Open Barrel

278000992

$1.79

CC

Male Housing, 6 Circuits

710000849

$7.55

CC

Lock

710000848

$3.12

CC

Female Terminal

710000274

$8.72

CC

Terminal | Canada/Usa

710001635

$3.12

CI

Female Housing, 24 Circuits

515175801

$8.73

CI

Retainer Block

515175802

$10.34

CI

Plug

515175812

$1.70

CI

Female Housing

710000399

$13.60

CI

Wire Seal

515175803

$2.41

CI

Female Terminal

710001131

$6.79

D2

Diode

409012700

$10.51

DB

Housing, 6 Circuits

278002896

$13.60

DB

Housing

710003006

$7.24

DB

Male Wedge, 6 Circuits

515175678

$4.96

DB

Sealing Cap

293000052

$2.55

DB

Female Terminal

278001665

$3.73

DC1

Female Terminal

710002398

$1.67

DC1

Female Terminal

710002399

$1.88

DC2

Female Terminal

710002398

$1.67

DC2

Female Terminal

710002399

$1.88

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Male Housing, 2 Circuits

710000667

$7.25

DC3

Female Terminal

515175231

$4.00

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.18

DPS1

Cap

710001225

$7.27

DPS1

Cap

710001114

$16.39

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS2

Fuse Holder

278001325

$8.31

DPS2

Female Terminal

710000113

$5.85

DPS3

Housing

710001157

$16.39

DPS3

Lock

710001323

$5.90

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

710001340

$4.96

FRR

Female Housing, 2 Circuits

515175658

$14.90

FRR

Female Terminal

710003896

$1.70

FT

Clip Bracket Connector (edge)

409210100

$1.94

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.30

HIC1

Housing

710001226

$11.06

HIC1

LOCK - Call your local BRP dealership

710001221

$8.42

HIC1

Cap

710001225

$7.27

HIC1

Seal

710001230

$2.24

HIC1

Seal

710001233

$2.55

HIC1

Terminal

710001229

$2.93

HIC1

Terminal

710001228

$2.72

HIC2

Housing

710001928

$14.52

HIC2

LOCK - Call your local BRP dealership

710001221

$8.42

HIC2

Cap

710001225

$7.27

HIC2

Seal

710001233

$2.55

HIC2

Seal Wire

710001332

$2.72

HIC2

Terminal

710001229

$2.93

HIC2

Terminal

710001228

$2.72

HICA

HOUSING - Call your local BRP dealership

710001124

Unavailable

HICA

LOCK - Call your local BRP dealership

710001125

Unavailable

HICA

Female Terminal

515175941

$2.40

MG1

Male Terminal Housing, 6 Circuits

710000835

$15.64

MG1

Cap

710000080

$6.28

MG1

Wire Seal

710000402

$4.28

MG1

Male Terminal

409011300

$5.61

MG2

Female Housing, 6 Circuits

710000081

$7.88

MG2

Seal

409012300

$4.25

MG2

Wire Seal

710000402

$4.28

MG2

Female Terminal

409012100

$3.73

PD

Headlamp Protector Cap

710004020

$9.31

PD

Female Housing

710004010

$5.52

PD

Terminal

515177217

$13.46

PF1

Fuse Puller

710000781

$8.29

PF1

Fuse Cover

710001026

$17.52

PF1

Fuse Shematic Decal

710003976

Unavailable

PF1

Foam

278002172

$5.33

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 20 Amperes

710000746

$6.77

PF1

Little Fuse, 20 Amperes

710000746

$6.77

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.33

PF1

Relay, 30 AMP

515176774

$18.63

PF1

Relay

715900824

$16.22

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177012

$4.96

PF2

Clip

710000992

$3.88

PF2

Cover

710000897

$12.62

PF2

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Housing, 6 Circuits

710000888

$15.64

PF2

Lock

710000889

$3.93

PF2

Wire Seal

278000218

$3.48

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

710000890

$3.73

PF3

Fuse Holder Cap

278001326

$5.85

PF3

Cushion

278000805

$3.12

PF3

Fuse

710001613

$7.24

PF3

Fuse Holder

278001325

$8.31

PF3

Clip

710000992

$3.88

PF3

Female Terminal

710000113

$5.85

PG

Headlamp Protector Cap

710004020

$9.31

PG

Female Housing

710004010

$5.52

PG

Terminal

515177217

$13.46

PR

Female Housing, 3 Circuits

515175495

$14.90

PR

Female Terminal

710003896

$1.70

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Seal

710000881

$14.27

RD1

Female Terminal

710000877

$6.32

SS1

Female Terminal

409010300

$4.00

SS2

Female Terminal

409010300

$4.00
