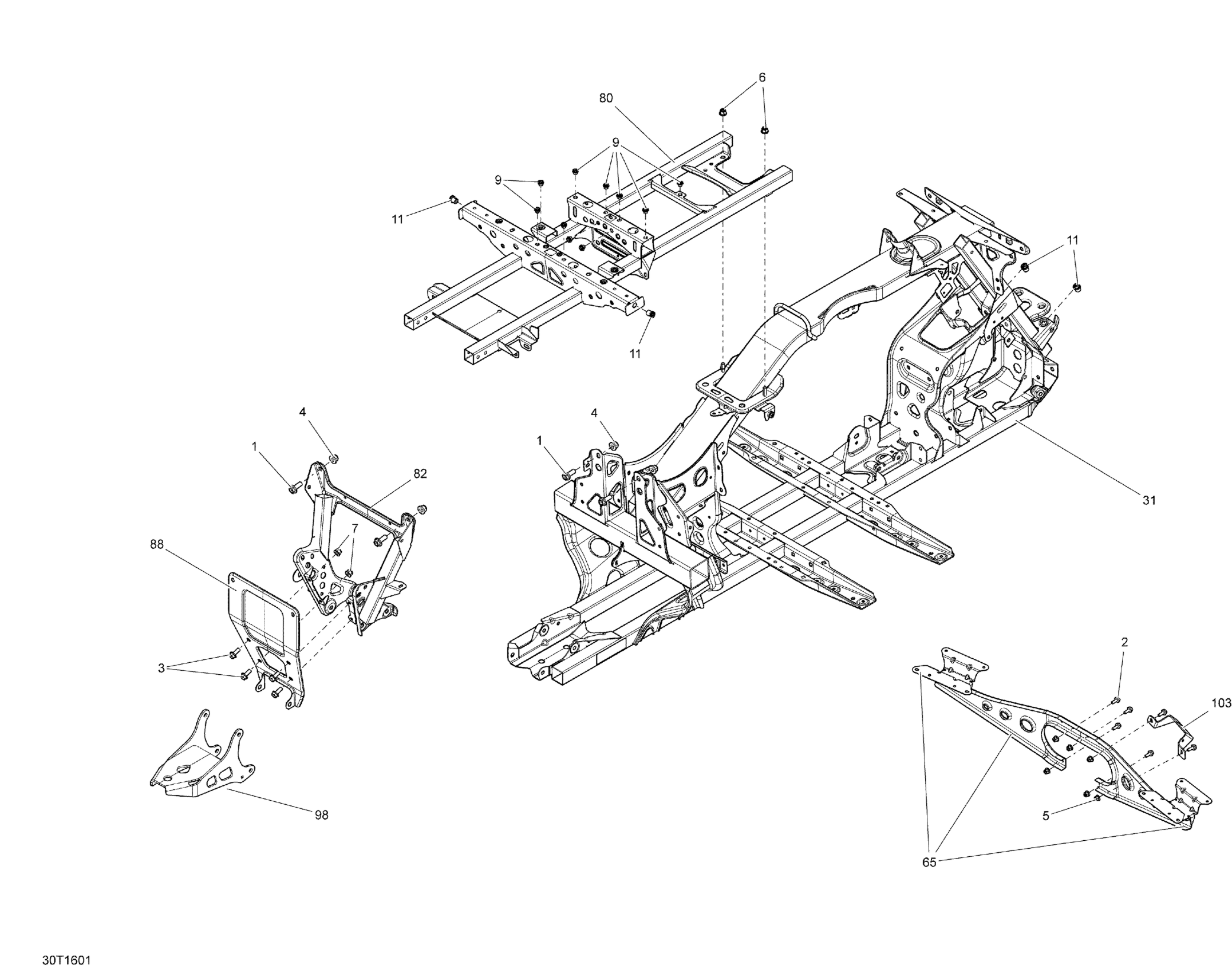

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Frame - All Models Diagram

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Elastic Flange Nut M8

233281416

$1.48

Threaded Insert M6 X 1.0

250100242

Unavailable

Threaded Insert M6 X 1.0

250100242

Unavailable

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Black Frame

705204116

Unavailable

Black Frame

705204118

Unavailable

Footrest Support

705210817

$76.99

Chassis Extension

705210820

$124.99

Black, Frame Extension

705203362

$159.99

Rear Pillar

705210818

$69.99

Rear Support

705203541

$43.99

Black Trailer Hitch Kit

715001925

$62.49

Master Cylinder Bracket

705203874

$11.49
