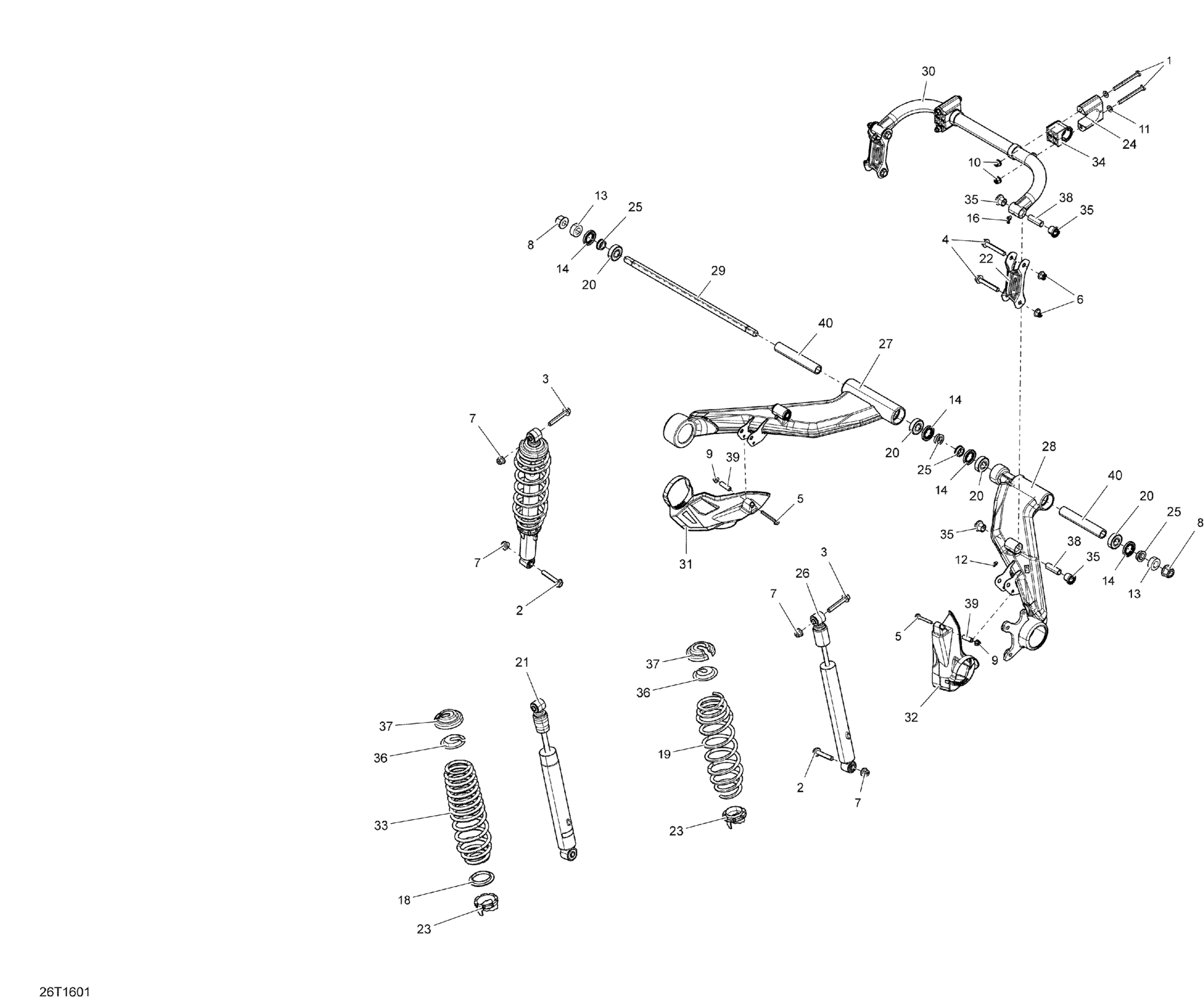

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Rear Suspension - All Models Diagram

#

Description
Price

1

Hex. Screw M8 X 85

250001035

$1.46

2

Hex. Flange Screw M10 X 55

207605546

$1.74

3

Hex. Flange Screw M10 X 6

207606046

$3.38

4

Hex. Flange Screw M10 X 65

207606536

$3.61

5

Hex. Flange Screw M6 X 50

207665044

$3.38

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M16

233211466

$1.53

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Hex. Flange Elastic Nut M8

233281434

$1.74

11

Flat Washer M8

234081430

$1.74

12

Grease Fitting

250000315

$4.82

13

Flat Washer M17

250200112

$6.34

14

Seal

293200144

$4.60

16

Grease Fitting 90°

293550056

$1.37

18

Spring Guide

503187500

$7.37

19

Deep Black, Compression Spring

706004873

$78.43

20

Ball Bearing

293350145

$12.91

21

Rear Shock

706000958

$175.35

22

Sway Bar Linkage

706001020

$12.68

23

Adjuster Ring

706002356

$17.66

23

Adjustment Cam

505073625

$12.18

24

Bushing Holder

706001099

$31.51

25

Spacer

706001282

$10.98

26

Rear Shock

706001524

$131.09

27

Black, LH Rear Swing Arm

706001646

$290.74

28

Black, RH Rear Swing Arm

706004525

$290.74

29

Axial Pivot M16

706001664

$69.20

30

Sway Bar

706001678

$129.20

31

LH Protector

706002482

$14.37

32

RH Protector

706002483

$14.75

33

Black Spring | Package XMR Engine 650

706002192

$83.05

33

Deep Black, Compression Spring

548874840

Unavailable

33

Black Spring | Package PRO

706002243

$83.05

34

Stabilizer Bar Bushing

706004640

$9.22

35

Bushing

706200181

$3.68

36

Cap

706200785

$4.42

37

Spring Stopper

706200881

$10.30

38

Sleeve

706201587

$4.60

39

Bushing

707001376

$4.22

40

Spacer

706002258

$27.66
