- 005 - Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00
07- Front Suspension - All Models

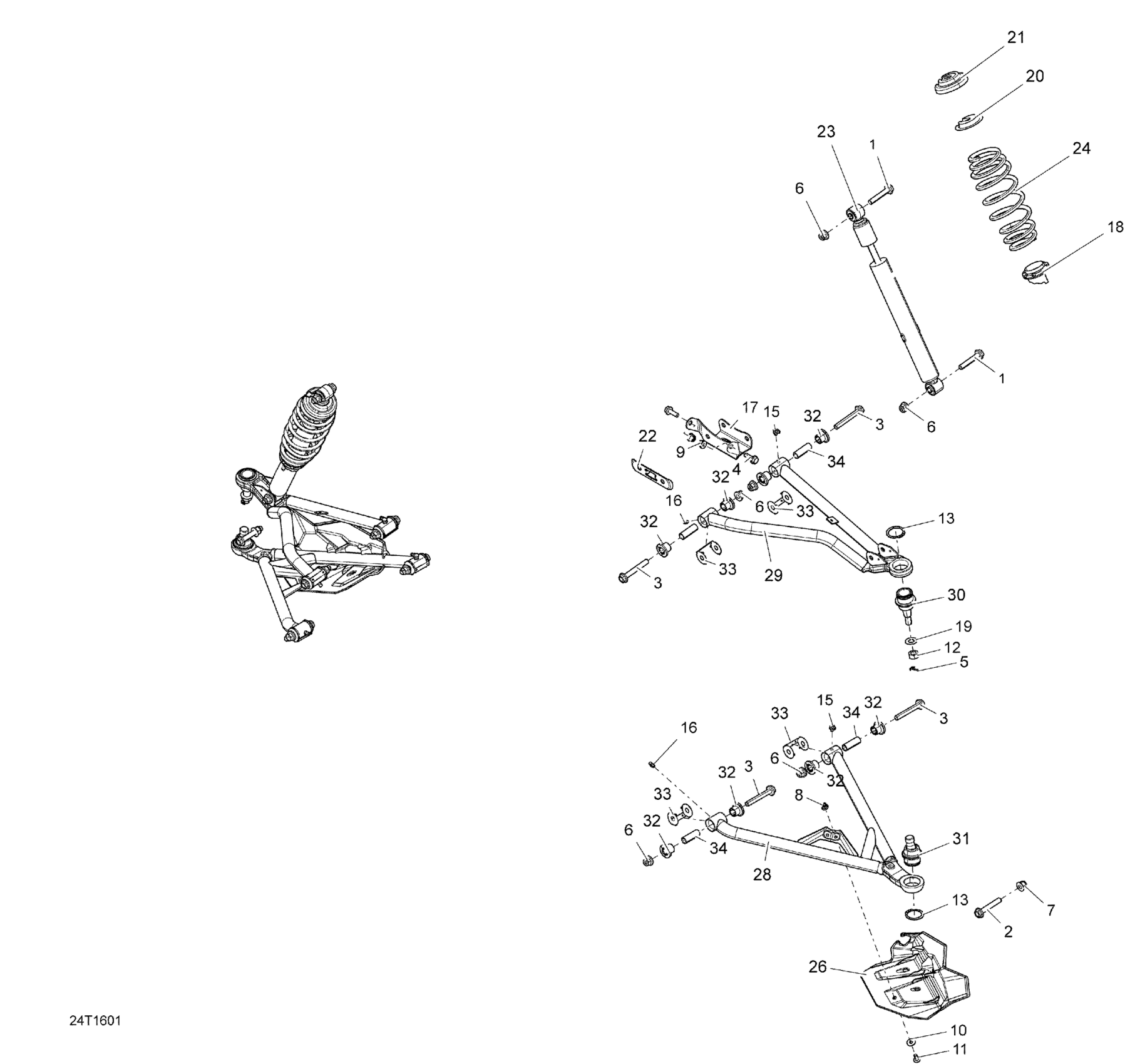

Can-Am 005 - Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 07- Front Suspension - All Models Diagram
#
1
Hex. Flange Screw M10 X 55
207605546
Unavailable
2
Hex. Flange Screw M10 X 60
207606044
Unavailable
3
Hex. Flange Screw M10 X 70
207607046
Unavailable
4
Hex. Flange Screw M8 X 25
207682544
Unavailable
5
Cotter Pin
211400017
Unavailable
6
Hex. Flange Elastic Nut M10
233201436
Unavailable
7
Hex. Flange Elastic Nut M10
233201434
Unavailable
8
Hex. Flange Elastic Nut M6
233261494
Unavailable
9
Hex. Flange Elastic Nut M8
233281414
Unavailable
10
Stainless Steel Flat Washer
234062670
Unavailable
11
Torx Screw M6 X 16
250000755
Unavailable
12
Nut M12
250100099
Unavailable
13
Circlip
293370035
Unavailable
15
Grease Fitting 90°
293550056
Unavailable
16
Grease Fitting
408200700
Unavailable
17
Upper Front Holder
705203247
Unavailable
18
Adjuster Ring
706002356
Unavailable
18
Adjustment Cam
505073625
Unavailable
19
Hardened Washer
706200281
Unavailable
20
Cap
706200785
Unavailable
21
Spring Stopper
706200881
Unavailable
22
Front Suspension Cross Plate
706200998
Unavailable
23
Front Shock
706201163
Unavailable
23
Front Shock
706201170
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
23
Front Shock | Package XMR, Built Dec 2015 and up
706202499
Unavailable
24
BLACK SPRING - Call your local BRP dealership
706201164
Unavailable
24
Black Spring | Package PRO
706202424
Unavailable
24
BLACK SPRING - Call your local BRP dealership
706201814
Unavailable
24
-RED SPRING - Call your local BRP dealership | Engine 650 Package XMR
706202364
Unavailable
26
LH Joint Protector
706202808
Unavailable
26
RH Joint Protector
706202809
Unavailable
28
LH Lower Suspension Arm
706204639
Unavailable
28
Black, RH Lower Arm
706202870
Unavailable
29
LH Upper Suspension Arm
706204641
Unavailable
29
RH Upper Suspension Arm
706204642
Unavailable
30
Ball Joint
706202044
Unavailable
31
Ball Joint
706202045
Unavailable
32
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
33
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
34
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
