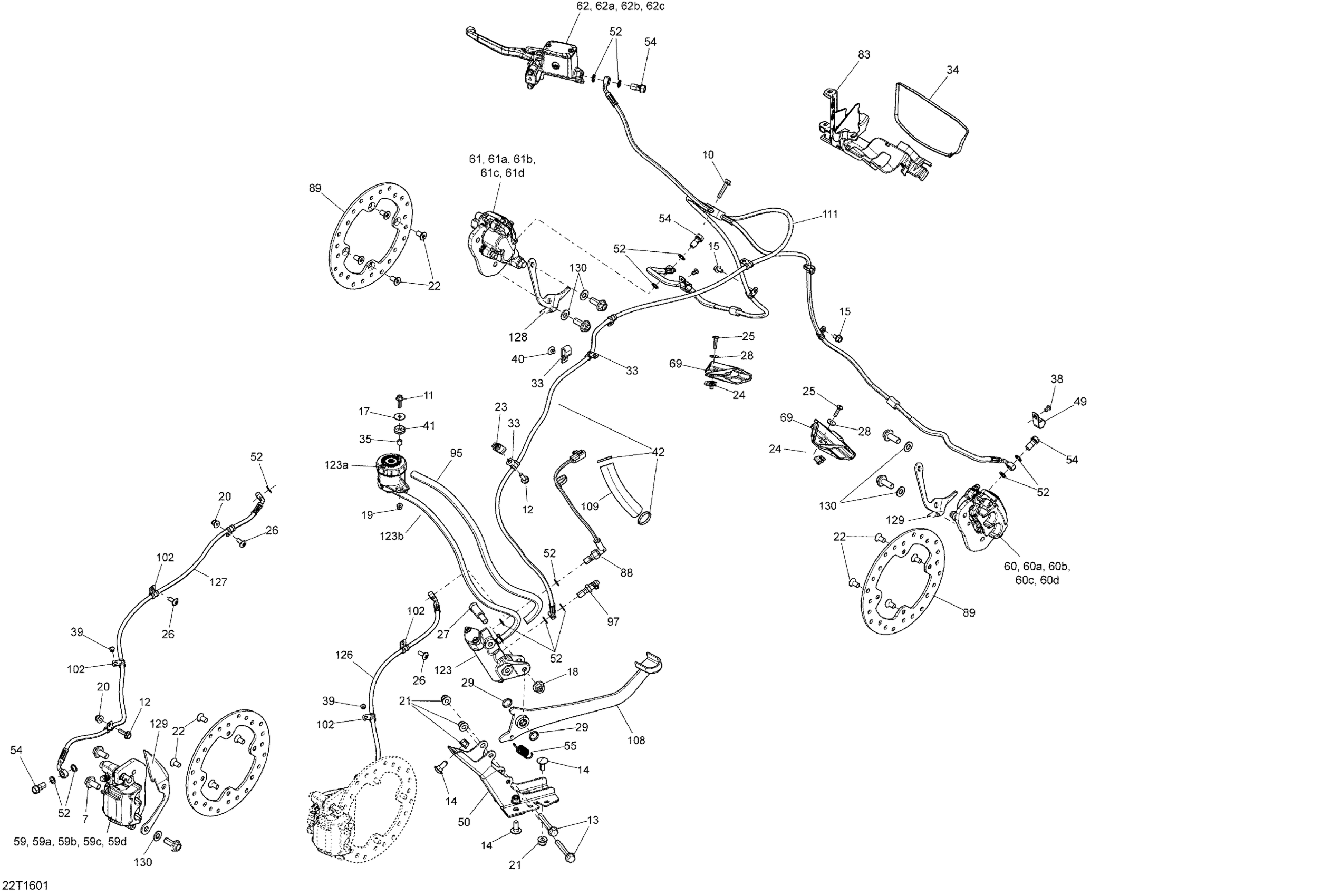

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Brakes - International Diagram

#

Description
Price

7

Hex. Flange Screw M10 X 20

207502046

$2.11

8

Hex. Flange Screw M10 X 25

207502546

$2.11

10

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

11

Hex.Flange Screw M5 X 20

207652044

$1.90

12

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

13

Hex. Flange Screw M8 X 55

207685544

$5.39

14

Carriage Bolt, M8 X 20

207782044

$1.90

15

Hex. Flange Screw M6 X 10

210261040

$1.48

17

Flat Washer

224060201

$1.26

18

Hex. Flange Elastic Nut M10

233201436

$2.11

19

Flange Elastic Nut M5

233251434

$2.00

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

23

Panel Nut M6 X 1.0

250100198

$2.11

24

Panel Nut M5 X 0.8

250000958

$4.23

25

Torx Screw M5 X 20

250000724

$1.69

26

Torx Screw M6 X 16

250000755

$0.87

27

Shoulder Screw M10

250000513

$6.77

28

Washer M5

250200025

$0.74

29

O-Ring

293300144

$3.82

33

Clamp

293650220

$0.90

34

Tie Rap, 533 mm

293750047

$2.09

35

Bushing

293900112

$10.06

38

Pop Rivet 3/16"

390402300

$0.75

39

Pop Rivet 3/16"

390402400

$0.35

40

Pop Rivet 3/16"

390406500

$0.88

41

Grommet

414036300

$2.79

42

Tie-Rap 180 mm

414115200

$0.11

49

Open Clamp

518321570

$7.69

50

Brake Pedal Bracket

705202000

$38.99

52

Copper Washer

705601628

$4.44

54

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Brake Pedal Spring

705600792

$9.10

59

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

59a

Pin Set

705601016

$9.26

59b

Bleeding Screw

705601017

$6.35

59c

Retaining Spring

705601018

$7.55

59d

RH Organic Brake Pad Kit

705601014

$42.49

60

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

60a

RH Organic Brake Pad Kit

705601014

$42.49

60b

Pin Set

705601016

$9.26

60c

Bleeding Screw

705601017

$6.35

60d

Retaining Spring

705601018

$7.55

61

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

61a

Pin Set

705601016

$9.26

61b

Bleeding Screw

705601017

$6.35

61c

Retaining Spring

705601018

$7.55

61d

LH Organic Brake Pad Kit

705601015

$42.49

62

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

62a

Lever Set

705601013

$63.99

62b

Clamp And Screw Kit

507032477

$23.99

62c

Cap Set

219800096

$21.99

69

Hose Guard

705601893

$4.55

83

Front Hose Bracket

705600983

$13.71

88

Brake Switch

705601250

$59.49

89

Disc Brake

705600999

$67.99

95

Tubing 10 MM 1000MM Long

219704407

$2.79

97

Bleeding Screw

705601051

$12.16

102

Clamp

293650256

$5.49

108

Deep Black, Brake Pedal

705602163

$154.99

109

Not Available As Spare Parts

XXX

Unavailable

111

Front Hose

705601524

$132.49

123

Rear Master Cylinder | Includes 21 to 23

705601273

$269.99

123a

Oil Tank

705601020

$39.99

123b

Oil Housing Hose

705601019

$15.87

126

RH Rear Hose

705601301

$41.49

126

RH Rear Hose

705601302

$41.49

127

Not Available As Spare Parts

XXX

Unavailable

128

LH Deflector

705601214

$24.99

129

RH Deflector

705601215

$24.99

130

Flat Washer 10 mm

234001410

$1.26
