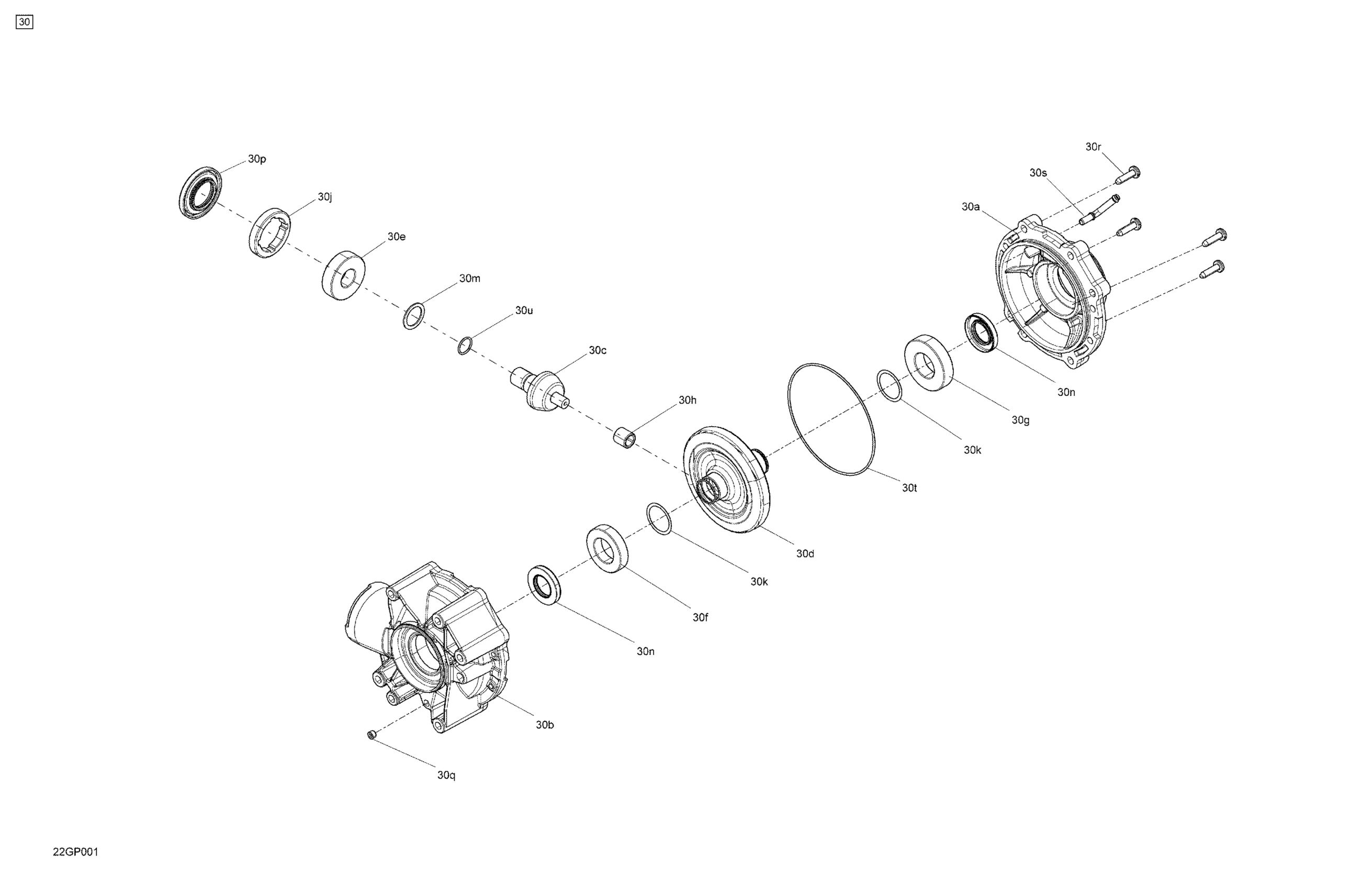

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

30a

REAR COVER - Call your local BRP dealership

705502051

Unavailable

30b

Rear Pinion Cover

705502052

$216.99

30c

Pinion 10 Teeth

705502053

$209.99

30d

Gear 36 Teeth

705502682

$189.99

30e

Ball Bearing

705502055

$31.99

30f

Ball Bearing

705502737

$48.49

30g

Ball Bearing

705502738

$59.49

30h

Needle Bearing

705502058

$49.99

30j

Nut

705502059

$32.99

30k

Differential Shim 0.02 mm

705502060

$13.76

30m

Pinion Gear Shim 1.67 mm

705502061

$18.99

30n

Oil Seal

705501556

$17.99

30p

Oil Seal

705502062

$23.49

30q

Plug Drain

705501724

$5.95

30r

Screw

705502063

$3.24

30s

Breather Tube

705501584

$14.99

30t

Seal

705502064

$8.47

30u

O-Ring

705502065

$5.95
