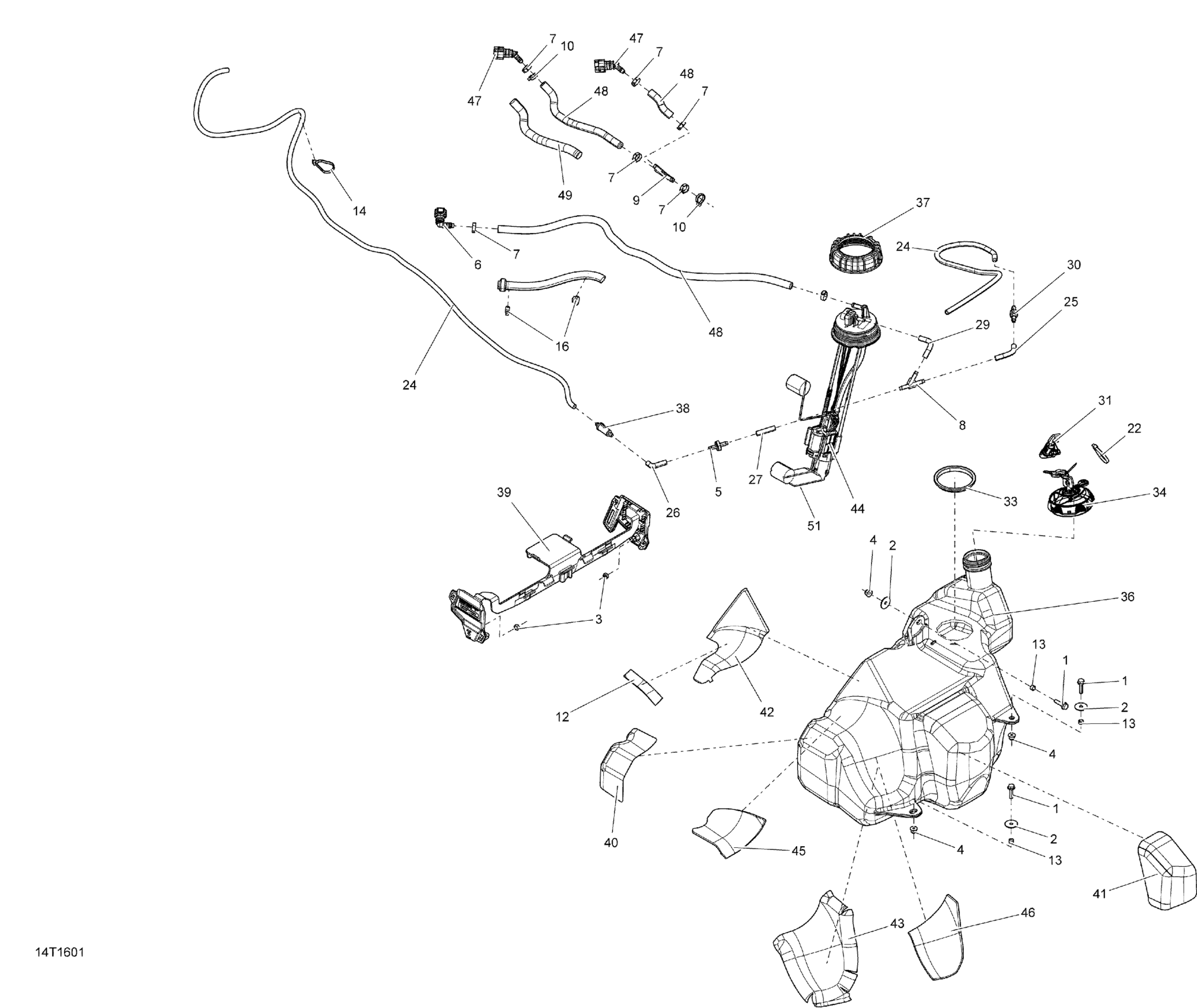

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Fuel System - All Models Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.64

2

Washer

224060251

$0.58

3

Hex. Elastic Stop Nut M6

232561600

$1.15

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Check Valve

275500398

$10.99

6

Quick Attach 90°

275500700

$16.49

7

Crimp Clamp, 15.3-706R

293650047

$3.29

8

Y-Fitting

293710059

$9.69

9

Y-Fitting, 5/16''

293710136

$6.49

10

Tie Wrap 142 mm

293750002

$1.25

12

Rubber Pad

293830172

$2.89

13

Bushing | DS 650 X

293900104

$5.50

14

Tie-Rap 180 mm

414115200

$0.11

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

Check Valve

513033469

$31.99

31

Lock Device Kit | Europe Model

707001750

$67.99

33

Seal

709000208

$14.99

34

Fuel Tank Cap

513033025

$24.49

34

Lock Device Kit | Europe Model

707001750

$67.99

34a

Padlock with Key

707000666

$25.99

36

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

37

Fuel Pump Module Nut

709000328

$13.75

38

Filter

709000330

$7.79

39

Hose Support Ass'y

709000359

$14.31

40

Heat Reflective Sheet

709000381

$6.99

41

Heat Reflective Sheet

709001071

$10.49

42

Heat Reflective Sheet

709000387

$5.09

43

Heat Reflective Sheet

709000388

$6.39

44

Fuel Pump

709000461

$340.99

47

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

48

Was 709000163 Fuel Line

219704440

$28.99

50

Tube 25Mm 1000Mm Long | Engine 450

219704350

$53.99

51

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99
