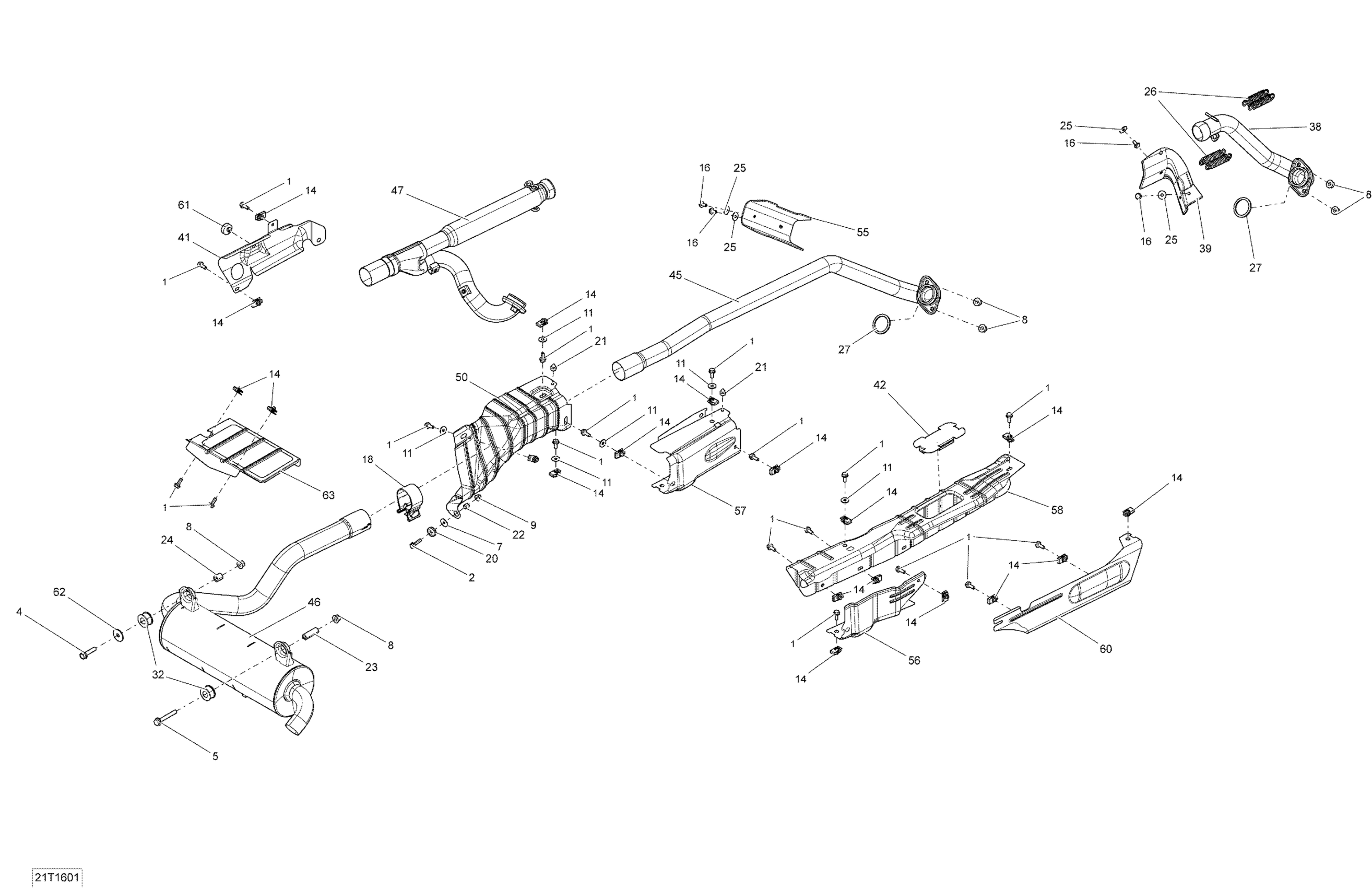

Can-Am Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 Exhaust System - All Models Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Hex. Flange Screw M8 X 35

207683544

$1.69

5

Hex. Flange Screw M8 X 55

207685544

$5.39

7

Flat Washer

224060201

$1.26

8

Hex. Flange Nut M8

233081416

$1.15

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer 6 mm

234062410

$0.77

14

Panel Nut M6 X 1.0

250100198

$2.11

16

Hex. Flange Screw M6 X 12

250000574

$2.11

18

Exhaust Pipe Clamp

293650228

$12.49

20

Grommet

709000582

$4.69

21

Rubber Bumper

293830005

$8.09

21

Rubber Bumper

293830005

$8.09

22

Bushing

293900105

$7.65

23

Bushing

293900115

$2.19

24

Spacer Bushing

293900116

$3.24

25

Flat Washer

250200082

$0.42

26

Spring

415107100

$6.35

27

Gasket

707600317

$11.60

27

Gasket

707600317

$11.60

32

Vibration Damper

707603323

$11.65

38

Front Head Pipe

707600764

$142.99

39

Pipe Protector

707600932

$15.81

41

Heat Shield

707602604

$19.99

42

Heat Shield

707600995

$18.99

45

Front Head Pipe

707601358

$179.99

45

Front Head Pipe

707601361

$179.99

46

Exhaust Muffler

707601392

$603.99

46

Exhaust Muffler | Model-Europe

707601393

$729.99

47

2-Into-1 Exhaust System

707601396

$201.49

47

2-Into-1 Exhaust System

707601397

$201.49

50

Protector

707601425

$19.49

55

Heat Shield

707601457

$13.99

56

Protector

707601484

$12.71

57

Protector

707601485

$12.71

58

Heat Shield

707603724

$13.99

60

Heat Shield | PRO Model Engine 570

707601678

Unavailable

61

Rubber Stopper

708000506

$7.55

62

Flat Washer M8

250200158

$2.11

63

Protector

707601635

$13.16
