- 005 - Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00
01- Engine and Engine Support - XMR

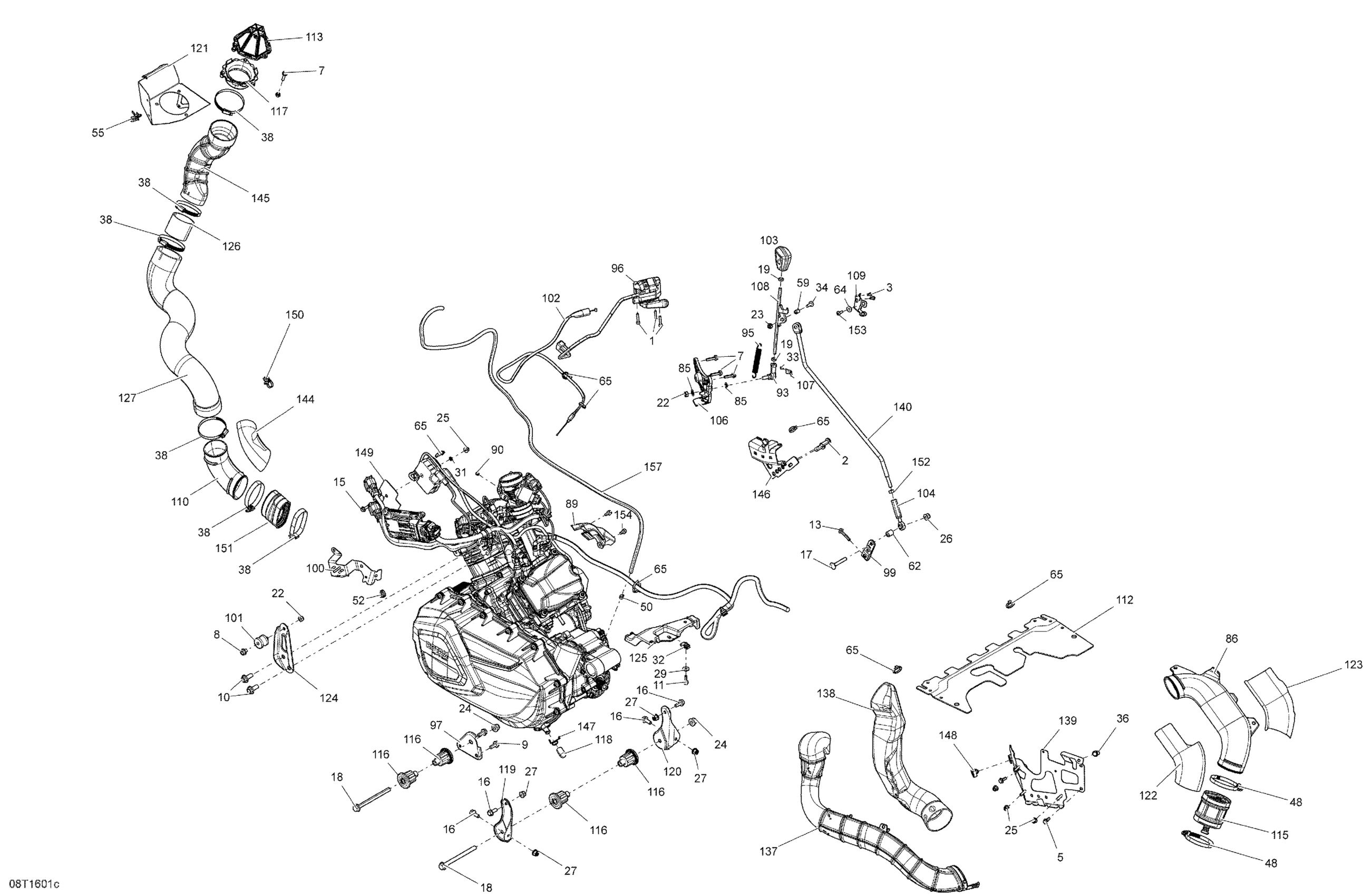

Can-Am 005 - Outlander L - 570 EFI - XMR Package 0003MGA00 0003MGB00 01- Engine and Engine Support - XMR Diagram
#
1
Socket Head Screw M5 X 25
205052588
Unavailable
2
Screw Socket M10 X 25 | Europe
205402556
Unavailable
3
Socket Head Screw M5 X 10
205951046
Unavailable
5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
7
Hex. Flange Screw M6 X 25
207562544
Unavailable
8
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
9
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
10
Hex. Flange Screw M10 X 25
207602544
Unavailable
11
Hex. Flange Screw M6 X 20
207662044
Unavailable
13
Hex. Flange Screw M6 X 35
207663544
Unavailable
15
Hex. Flange Screw M6 X 50
207665044
Unavailable
16
Hex. Flange Screw M8 X 20
207682046
Unavailable
17
Carriage Bolt M8 X 50 | DS 650 X
207785044
Unavailable
18
Hex. Flange Screw M10 X 125
230602546
Unavailable
19
Hex. Jam Nut M8
232180600
Unavailable
22
Hex. Elastic Stop Nut M8
232581414
Unavailable
23
Hex. Flange Nut M6
233161414
Unavailable
24
Hex. Flange Elastic Nut M10
233201436
Unavailable
25
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Hex. Flange Elastic Nut M8
233281414
Unavailable
27
Hex. Elastic Flange Nut M8
233281416
Unavailable
29
Flat Washer 6 mm
234062410
Unavailable
31
External Serrated Lock Washer 6 mm
234461608
Unavailable
32
Panel Nut M6 X 1.0
250100198
Unavailable
33
TORX SCREW M4 X 8 - Call your local BRP dealership | Europe
250000332
Unavailable
34
Torx Screw M6 X 20, Scotch Grip
250000446
Unavailable
36
Tuflok Plastic Rivet
293150230
Unavailable
38
Norma Clamp
293650091
Unavailable
48
Norma Gear Clamp
293650118
Unavailable
50
Clamp, Oetiker
293650195
Unavailable
52
Tie Wrap 142 mm
293750002
Unavailable
55
Tie-Rap 173 mm
293750009
Unavailable
59
Bushing
293900019
Unavailable
62
Bushing
293900106
Unavailable
64
Washer | DS 650 X
391301600
Unavailable
65
Tie-Rap 180 mm
414115200
Unavailable
85
Washer
506151252
Unavailable
86
Air Outlet
706600019
Unavailable
89
Cover OPS
707000410
Unavailable
90
Cable Guide
707000434
Unavailable
93
RH Ball Joint
707001959
Unavailable
95
Spring
707000577
Unavailable
96
Throttle Handle | 4X4
707000595
Unavailable
97
Engine Support
707003319
Unavailable
98
Shift Arm | Except Europe
707000840
Unavailable
99
Lever
707000911
Unavailable
100
Cover | Package XMR
707001563
Unavailable
100
Not Available As Spare Part - Friction Washer
Unavailable
101
Rubber Isolator
707000949
Unavailable
102
Throttle Cable
707000955
Unavailable
103
Lever Trim
707003211
Unavailable
104
Ball Joint Ass'y | Includes 55 to 56
707000966
Unavailable
106
Lever Support
707003054
Unavailable
107
SPEED LIMITER - Call your local BRP dealership | Europe
707000994
Unavailable
108
Shift Arm | Europe
707001003
Unavailable
108
Shift Arm | Except Europe
707000840
Unavailable
109
Fixing Plate | Europe
707001042
Unavailable
110
CVT Air Inlet
707001087
Unavailable
112
Deflector
707001129
Unavailable
113
Filter CVT
707001130
Unavailable
114
CVT Air Inlet
707002067
Unavailable
115
CVT Air Outlet Adaptor
707001168
Unavailable
116
Vibration Damper
707001169
Unavailable
117
CVT Filter Base
707001171
Unavailable
118
Plug
707001185
Unavailable
119
LH Rear Engine Bracket
707001193
Unavailable
120
RH Rear Engine Bracket
707001194
Unavailable
121
CVT Filter Support
707001203
Unavailable
122
Heat Shield
707001205
Unavailable
123
Heat Shield
707001206
Unavailable
124
Upper Engine Bracket
707001256
Unavailable
125
Air Outlet Support
707001262
Unavailable
126
Tube
707001263
Unavailable
127
CVT Air Inlet
707001301
Unavailable
137
Air Outlet
707001496
Unavailable
138
Air Outlet
707001497
Unavailable
139
Welded Support
707001498
Unavailable
140
Shifter Rod
707002085
Unavailable
144
Heat Shield
707001654
Unavailable
145
Upper CVT Air Inlet
707001738
Unavailable
146
Upper Cable Support
707001955
Unavailable
147
Retainer Clip
707800506
Unavailable
148
Rubber Stopper
708000506
Unavailable
149
Insulator Pad
710000073
Unavailable
150
Tie-Rap Clip
710002896
Unavailable
151
Flexibale Adaptor
707002585
Unavailable
152
Hex. Nut M8, LH Threads
250100144
Unavailable
153
Torx Screw K50 X 16
250000720
Unavailable
154
Hex. Flange Screw M6 X 12
210261250
Unavailable
157
Polyurethane Hose 10000Mm Long
219704410
Unavailable
