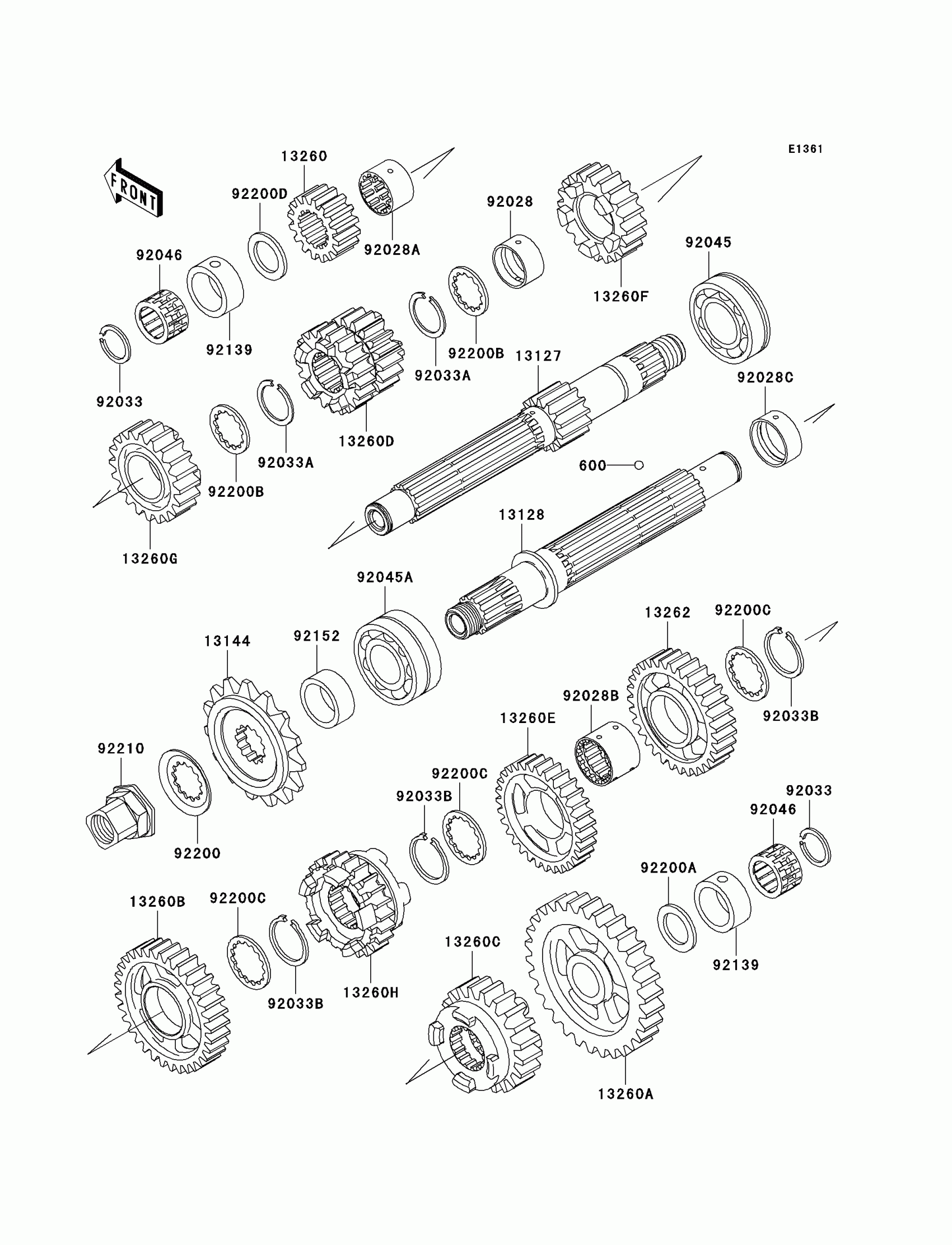

Kawasaki ZZR600 Transmission Diagram
#
Description
Price
600
BALL-STEEL,5/32
600A0500
$0.81
13127
SHAFT-TRANSMISSION INPUT,13T
13127-1298
$265.48
13128
SHAFT-TRANSMISSION OUTPUT
13128-1264
$261.49
13144
SPROCKET-OUTPUT,15T
13144-1288
$50.42
13260
GEAR,INPUT 2ND,16T
13260-1452
$135.39
13260A
GEAR,OUTPUT LOW,38T
13260-1456
$151.73
13260B
GEAR,OUTPUT 2ND,33T
13260-1568
$179.75
13260C
GEAR,OUTPUT 5TH,28T
13260-1979
$177.26
13260D
GEAR,INPUT 3RD&4TH,19T&21T
13260-1980
$177.26
13260E
GEAR,OUTPUT 4TH,29T
13260-1981
$177.26
13260F
GEAR,INPUT 5TH,32T
13260-1982
$177.26
13260G
GEAR,INPUT TOP,24T
13260-1983
$177.26
13260H
GEAR,OUTPUT TOP,26T
13260-1984
$177.26
13262
GEAR,OUTPUT 3RD,31T
13262-1058
$187.68
92028
BUSHING,INPUT 5TH GEAR
92028-1735
$25.59
92028A
BUSHING,INPUT TOP GEAR
92028-1736
$40.34
92028B
BUSHING,OUTPUT,3RD&4TH
92028-1738
$40.34
92028C
BUSHING,OUTPUT,2ND
92028-1739
$25.59
92033
RING-SNAP,20MM
92033-015
$4.26
92033A
RING-SNAP,24MM
92033-026
$8.79
92033B
RING-SNAP,25.9X30.6X1.2
92033-1037
$4.65
92045
BEARING-BALL,HR6205C3
92045-0009
$29.66
92045A
BEARING-BALL,83993SH2-CS
92045-035
$73.57
92046
BEARING-NEEDLE,PK20X27X17X3
92046-1303
$21.01
92139
BUSHING,27X34X18.6
92139-1090
$31.78
92152
COLLAR,25X32X13
92152-0192
$12.95
92200
WASHER
92200-1065
$6.63
92200A
WASHER,20.3X30X2.3
92200-1238
$5.59
92200B
WASHER,25.2X31.0X1.5
92200-1239
$7.84
92200C
WASHER,28.5X34.0X1.5
92200-1240
$10.28
92200D
WASHER,20.3X33X1.0
92200-1613
$6.45
92210
NUT,SPROCKET
92210-1098
$34.11
