Description

Price

221

SCREW-CSK-CROS,5X8

221C0508

$4.37

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

601

BEARING-BALL,#6004

601A6004

$11.91

11012

CAP

11012-1658

$8.68

33001

ARM-COMP-SWING,P.SILVER

33001-0055-458

$939.89

33032

SHAFT-SWING ARM

33032-1191

$94.98

33040

ADJUSTER-CHAIN,RH

33040-1114

$19.28

33040A

ADJUSTER-CHAIN,RH

33040-1180

$31.75

42036

SLEEVE,SWING ARM,L=213

42036-1283

$93.26

49001

NIPPLE-GREASE

49001-0001

$3.02

55020

GUARD,CHAIN

55020-1702

$64.53

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92152

COLLAR,SWING ARM,L=12.5

92152-1234

$8.97

92153

BOLT,8X55

92153-1407

$2.15

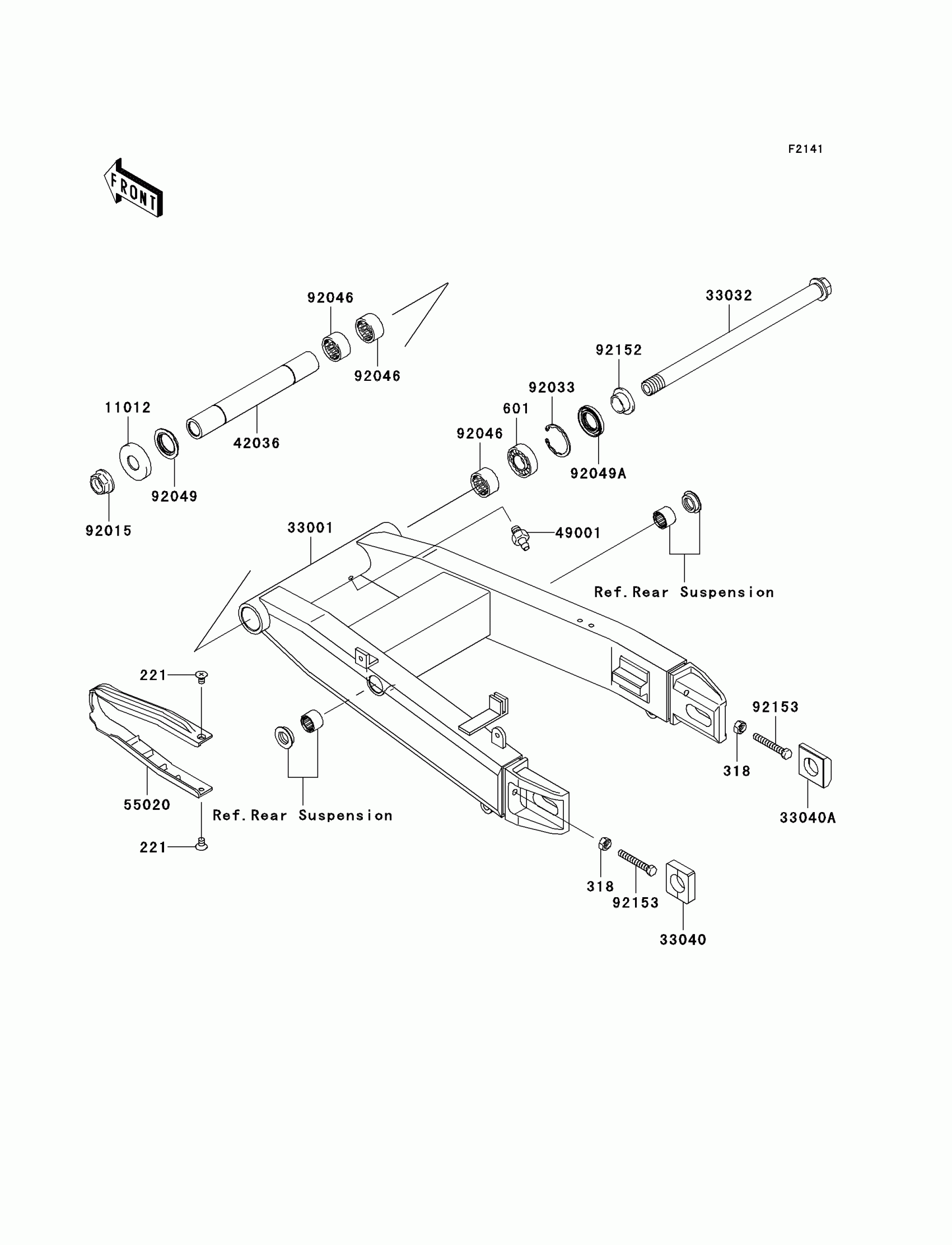

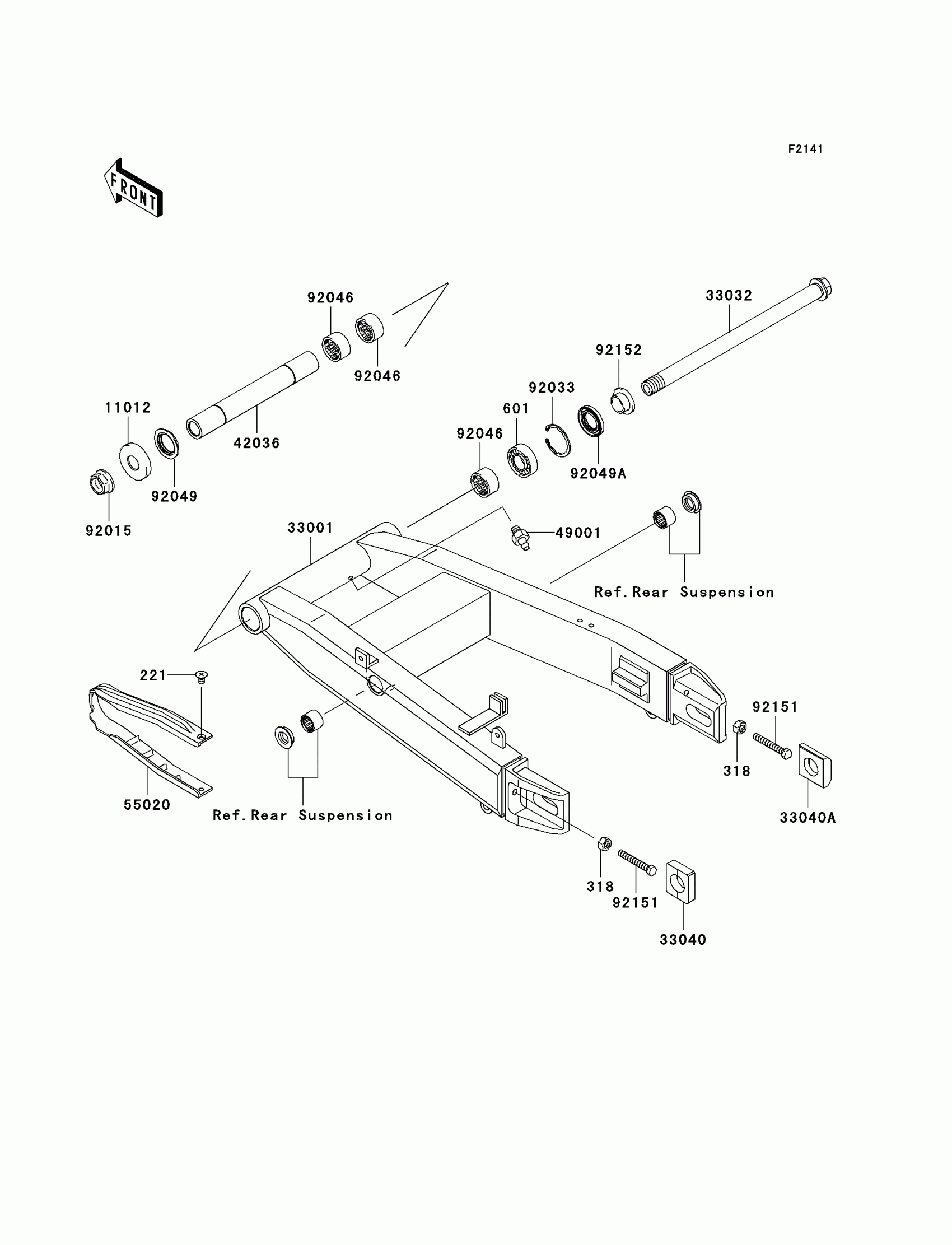

Kawasaki ZZR600 Swingarm Diagram

SCREW-CSK-CROS,5X8

NUT-HEX-SMALL,8MM

BEARING-BALL,#6004

CAP

ARM-COMP-SWING,P.SILVER

SHAFT-SWING ARM

ADJUSTER-CHAIN,RH

ADJUSTER-CHAIN,RH

SLEEVE,SWING ARM,L=213

NIPPLE-GREASE

GUARD,CHAIN

NUT,FLANGED,20MM

RING-SNAP,42MM

BEARING-NEEDLE,BM2817

SEAL-OIL,28X34X5.7

SEAL-OIL,MHSA25X42X6

COLLAR,SWING ARM,L=12.5

BOLT,8X55
