Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

551

PIN-DOWEL,4X8

551A0408

$0.78

11061

GASKET

11061-0107

$2.58

13107

SHAFT

13107-1430

$56.44

13234

SHAFT-COMP

13234-0003

$98.85

16097A

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,WATER

16142-1152

$172.68

16142A

COVER-PUMP,OIL

16142-1161

$73.85

16154

ROTOR-PUMP,40.56X22

16154-1115

$70.18

16160

BODY,OIL PUMP

16160-1325

Unavailable

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-1073

$32.59

59256

IMPELLER

59256-1074

Unavailable

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,OIL FILTER

92055-1503

$9.51

92055A

RING-O,WATER PUMP COVER

92055-1532

$15.60

92055B

RING-O,59.6X2.4

92055-3018

$6.22

92153

BOLT,6X60

92153-0780

$3.86

92200

WASHER

92200-1009

$5.07

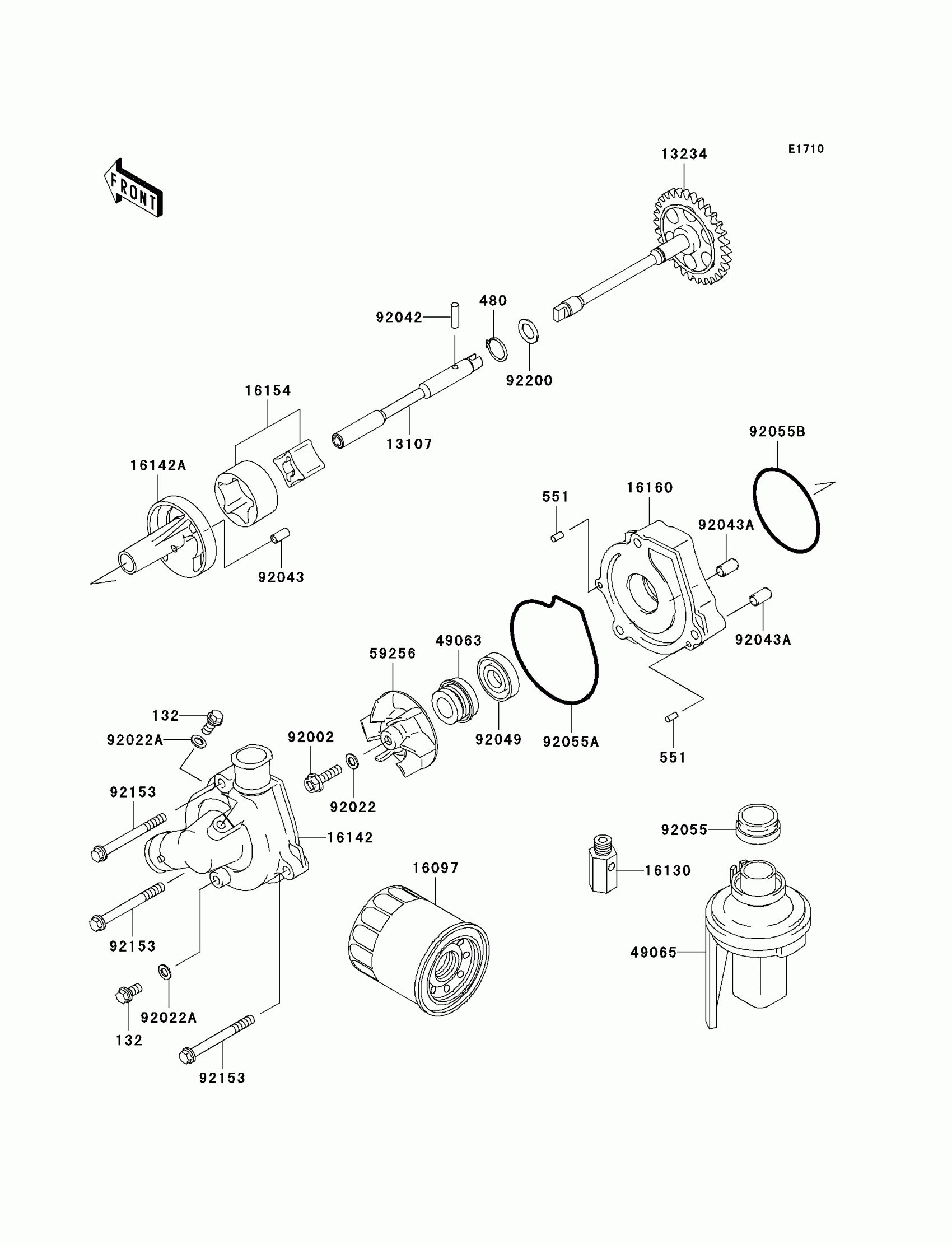

Kawasaki ZZR600 Oil Pump/Oil Filter Diagram

BOLT-FLANGED-SMALL,6X12

CIRCLIP-TYPE-C,11MM

PIN-DOWEL,4X8

GASKET

SHAFT

SHAFT-COMP

FILTER-ASSY-OIL

VALVE-ASSY-RELIEF

COVER-PUMP,WATER

COVER-PUMP,OIL

ROTOR-PUMP,40.56X22

BODY,OIL PUMP

SEAL-MECHANICAL

FILTER-OIL

IMPELLER

BOLT,6X22

WASHER OIL PUMP BANJO

PIN,DOWEL,4X15.8

PIN,4.2X6X12

PIN,6.2X8X14

SEAL-OIL,SC 11 28.55 5

RING-O,OIL FILTER

RING-O,WATER PUMP COVER

RING-O,59.6X2.4

BOLT,6X60

WASHER
