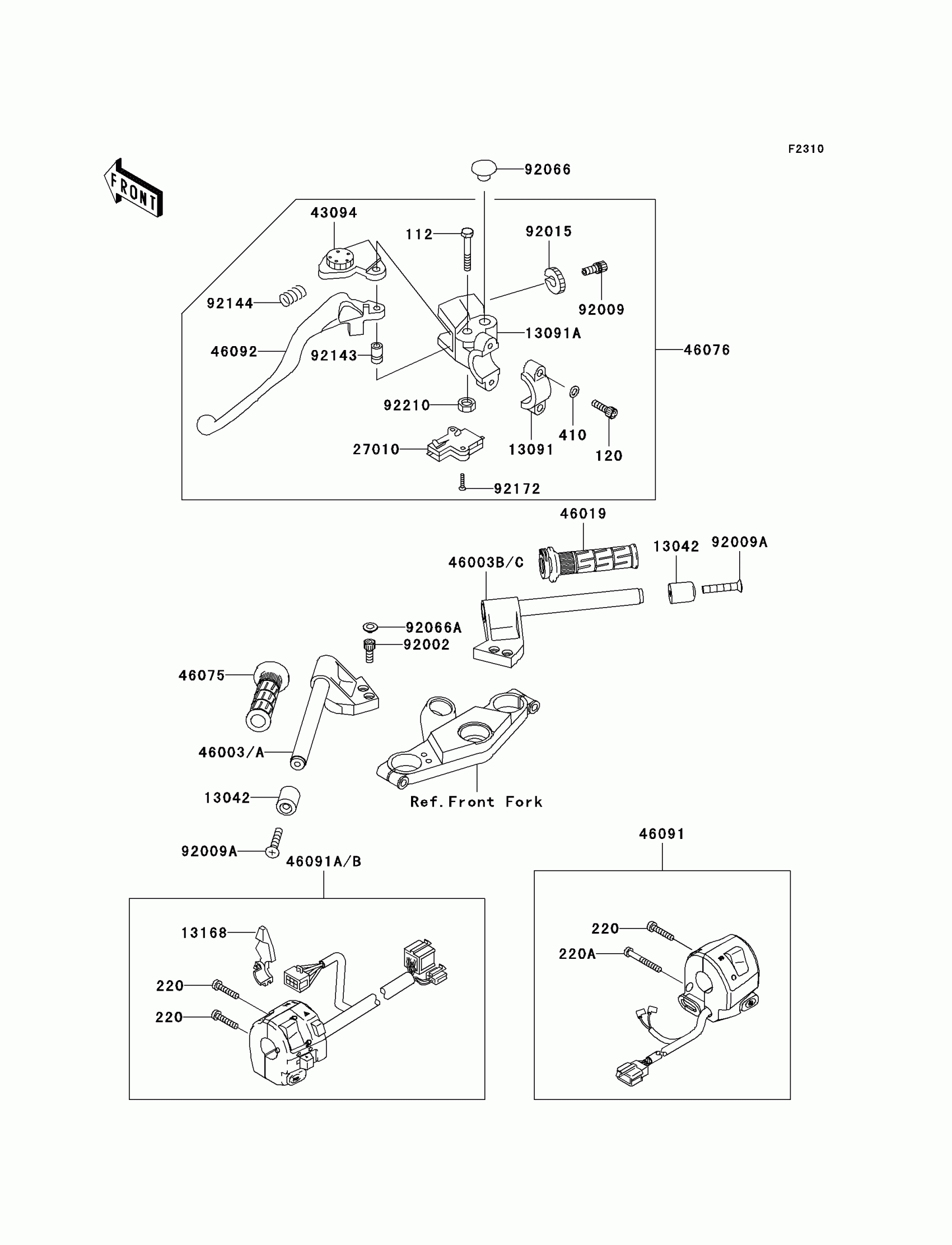

Kawasaki ZZR600 Handlebar(E10-E12) Diagram
#
Description
Price
13042
WEIGHT,HANDLE
13042-1069
$35.38
13091
HOLDER,CLUTCH LEVER
13091-1624
$35.87
13091A
HOLDER,CLUTCH LEVER
13091-1652
Unavailable
13168
LEVER,CHOKE
13168-1516
$9.37
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
43094
ADJUSTER,CLUTCH LEVER
43094-1053
$36.12
46003
HANDLE,LH,P.C.GRAY
46003-1415-CQ
$131.86
46003B
HANDLE,RH,P.C.GRAY
46003-1416-CQ
$131.86
46019
GRIP-ASSY,THROTTLE
46019-1095
$54.17
46075
GRIP,HANDLE,LH
46075-1144
$20.96
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1165
$73.58
46091
HOUSING-ASSY-CONTROL,RH
46091-1672
$154.45
46091B
HOUSING-ASSY-CONTROL,LH
46091-1857
$214.98
46092
LEVER-GRIP,CLUTCH
46092-1161
$21.83
92002
BOLT,SOCKET,8X20
92002-1178
$5.05
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92009A
SCREW,8X45
92009-1257
$4.69
92015
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
112
BOLT-UPSET,6X40
112C0640
$4.50
120
BOLT-SOCKET,6X20
120S0620
Unavailable
220
SCREW-PAN-CROS,5X25
220C0525
$3.52
220A
SCREW-PAN-CROS,5X40
220C0540
$1.92
410
WASHER-PLAIN-SMALL,6MM,BLACK
410F0600
$0.72
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92066A
PLUG
92066-1277
$6.51
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92172
SCREW,3X16
92172-0183
$2.15
92210
NUT,LOCK,6MM
92210-0006
$2.46
