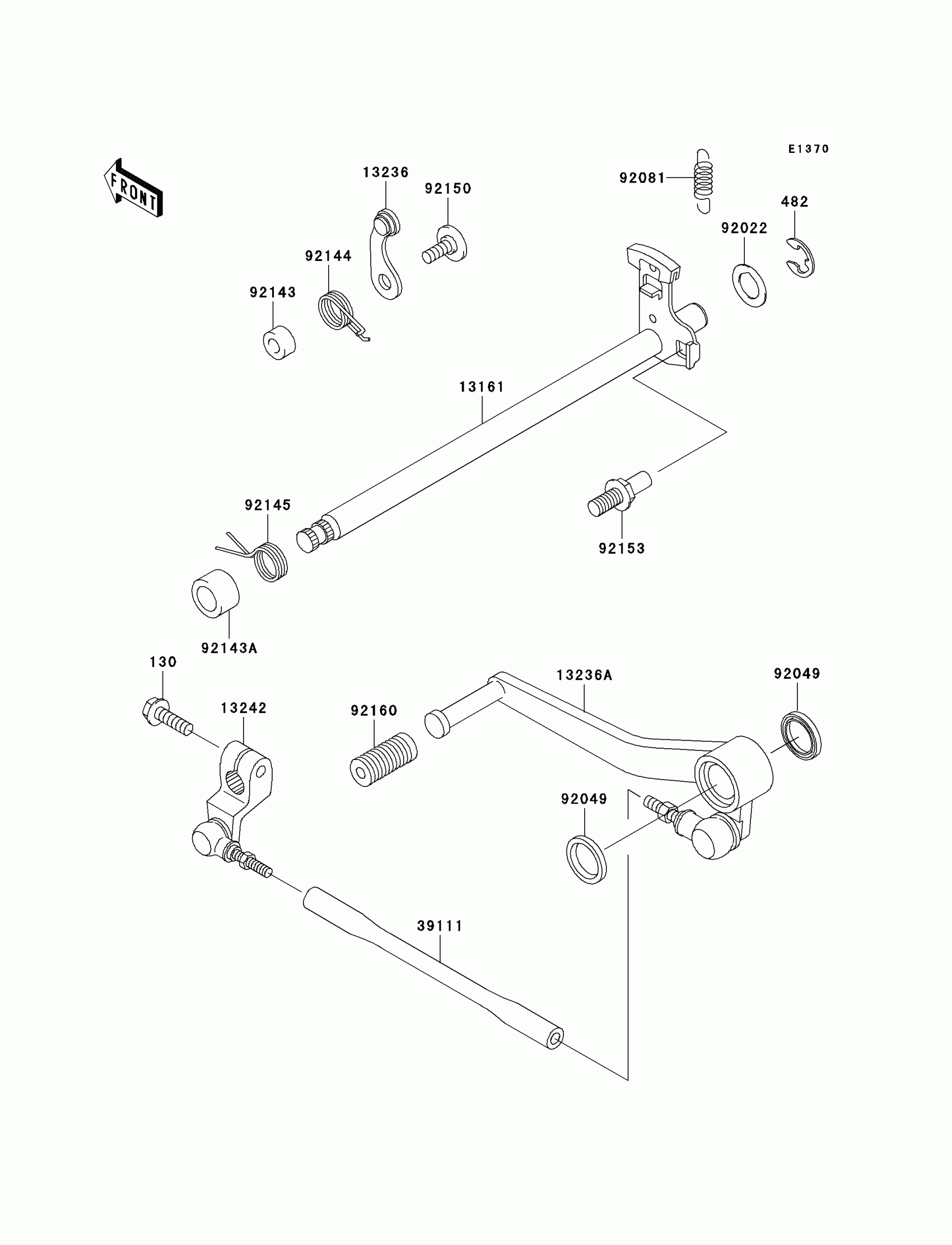

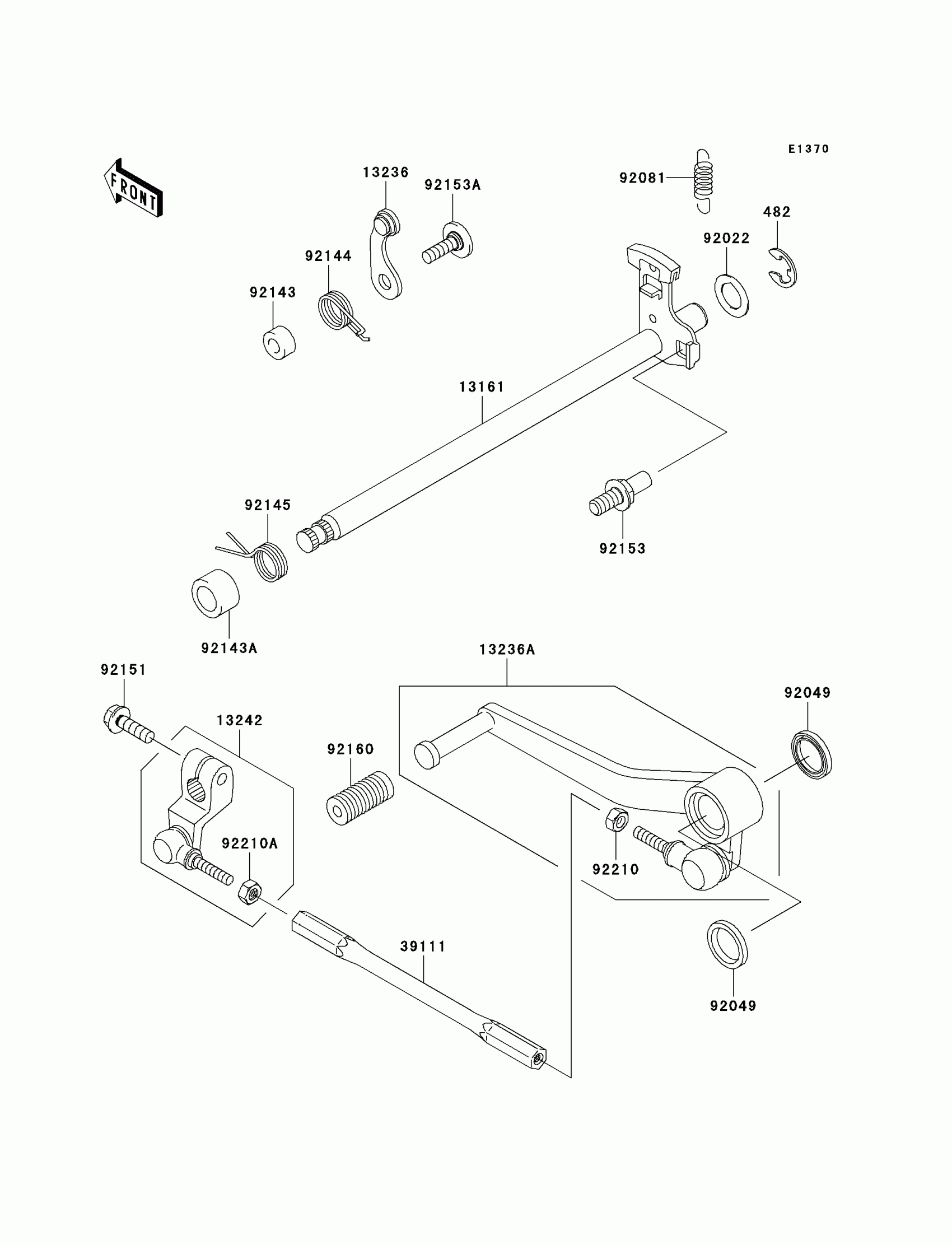

Kawasaki ZZR600 Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1270

$97.50

13236

LEVER-COMP

13236-1243

$19.66

13236A

LEVER-COMP,CHANGE PEDAL

13236-1317

$94.08

13242

LEVER-ASSY-CHANGE,BOSS

13242-1348

$53.31

39111

ROD-TIE

39111-1165

$95.85

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92049

SEAL-OIL

92049-1492

$9.27

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92143

COLLAR

92143-1595

$9.51

92143A

COLLAR,13.2X19.9X12

92143-1733

$5.78

92144

SPRING

92144-1856

$9.82

92145

SPRING

92145-1122

$9.68

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,6X20

92153-0896

$6.43

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
