Description

Price

130

BOLT-FLANGED,6X16

130H0616

$1.17

130A

BOLT-FLANGED

130J0620

$0.43

14090

COVER

14090-1505

Unavailable

35004

FENDER-FRONT,CNT,EBONY

35004-1421-H8

$207.41

35004D

FENDER-FRONT,SIDE,LH,C.GRAY

35004-1422-3L

$41.14

35004E

FENDER-FRONT,SIDE,RH,C.GRAY

35004-1423-3L

$41.14

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92009A

SCREW,6X14

92009-1662

$3.92

92015

NUT,6MM

92015-1321

$11.91

92015A

NUT

92015-1700

$8.58

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER

92075-1564

$5.48

92152

COLLAR,6.8X10X6

92152-1256

$4.67

92152A

COLLAR

92152-1269

$5.38

92160

DAMPER

92160-1961

$4.67

92210

NUT,5MM

92210-1266

$7.38

35004C

FENDER-FRONT,CNT,C.F.RED

35004-1421-816

$207.41

35023

FENDER-REAR

35023-1538

$176.12

35023A

FENDER-REAR

35023-1540

$176.12

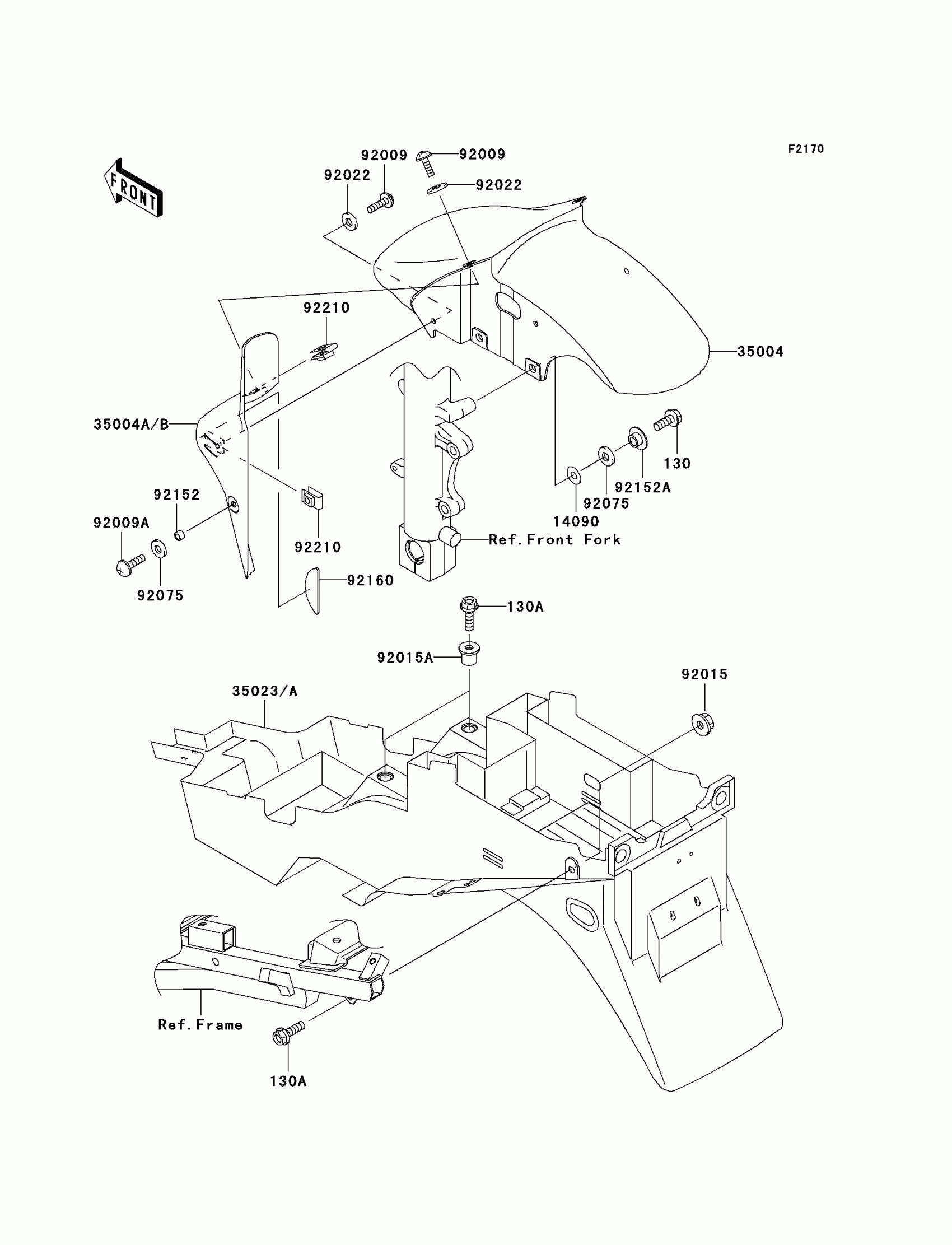

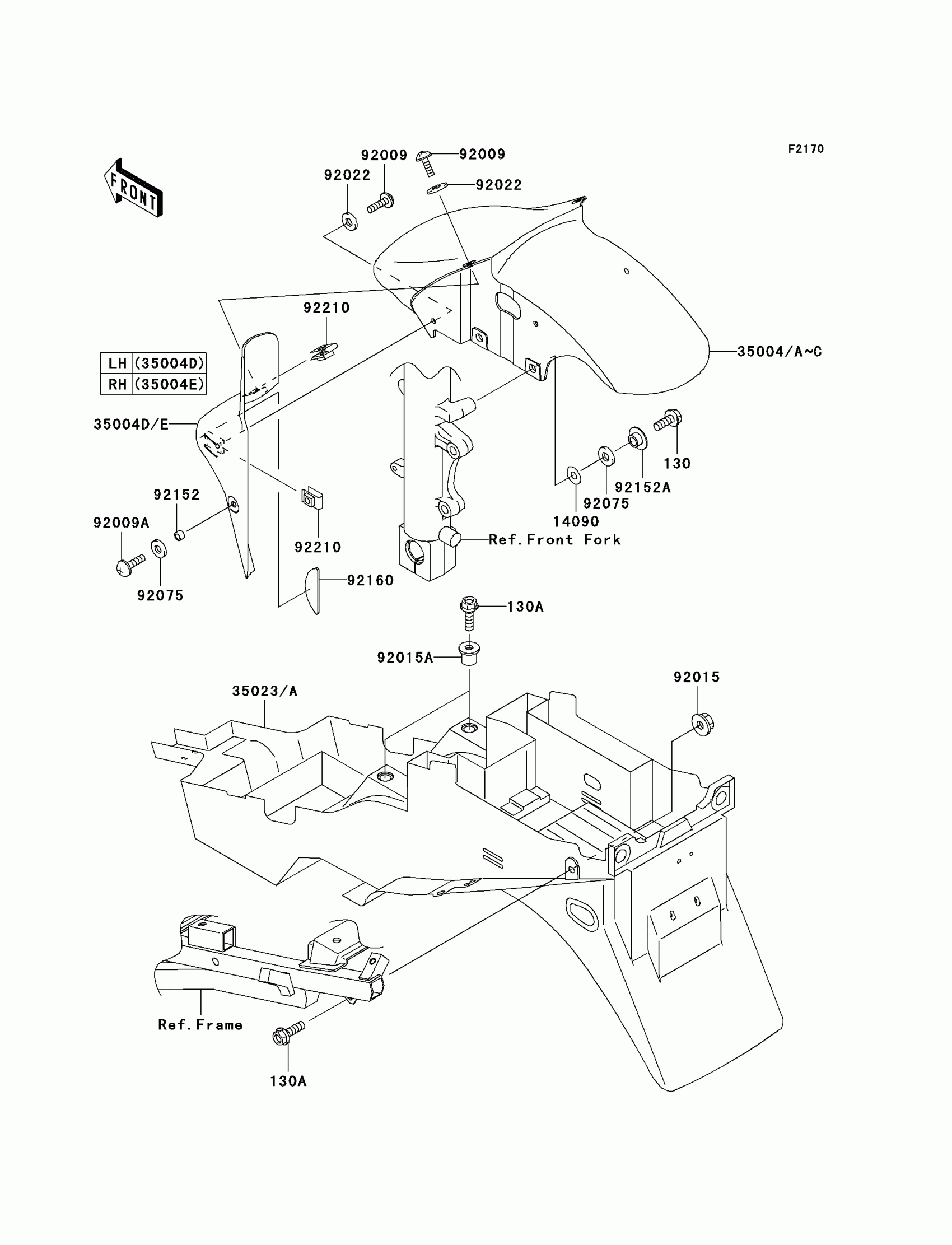

Kawasaki ZZR600 Fenders Diagram

BOLT-FLANGED,6X16

BOLT-FLANGED

COVER

FENDER-FRONT,CNT,EBONY

FENDER-FRONT,SIDE,LH,C.GRAY

FENDER-FRONT,SIDE,RH,C.GRAY

SCREW,5X16,BLACK

SCREW,6X14

NUT,6MM

NUT

WASHER,NYLON,5.3X11.5X1.5

DAMPER

COLLAR,6.8X10X6

COLLAR

DAMPER

NUT,5MM

FENDER-FRONT,CNT,C.F.RED

FENDER-REAR

FENDER-REAR
