Description

Price

132

BOLT-FLANGED-SMALL,8X30

132J0830

$4.15

11052

BRACKET,HEAD LAMP RELAY

11052-1822

$11.75

14091

COVER,RADIATOR,LH

14091-1170

$9.50

14091A

COVER,RADIATOR,RH

14091-1171

$9.50

14091B

COVER,UNDER BRACKET

14091-1271

$27.84

23062

BRACKET-COMP,METER&MIRROR STAY

23062-1139

$298.81

39154

WINDSHIELD

39154-5017

$251.35

39156

PAD,UPP COWLING,LH

39156-1622

$13.63

39156A

PAD,UPP COWLING,RH

39156-1623

$13.63

55028

COWLING,UPP,M.O.BLUE

55028-1390-726

$760.40

55028A

COWLING,DUCT,M.F.C.GRAY

55028-1391-3L

$132.79

55028B

COWLING,INNER,LH

55028-1394

$86.09

55028C

COWLING,INNER,RH

55028-1395

$80.60

56001

MIRROR-ASSY,LH

56001-1483

$117.69

56001A

MIRROR-ASSY,RH

56001-1484

$117.69

92009

SCREW,5X16

92009-1909

$2.03

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-1227

$1.81

92071

GROMMET

92071-1222

$6.55

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER

92075-1912

$5.77

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92160

DAMPER,MIRROR

92160-1089

$7.29

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

92210

NUT,CAP,6MM

92210-0003

$0.64

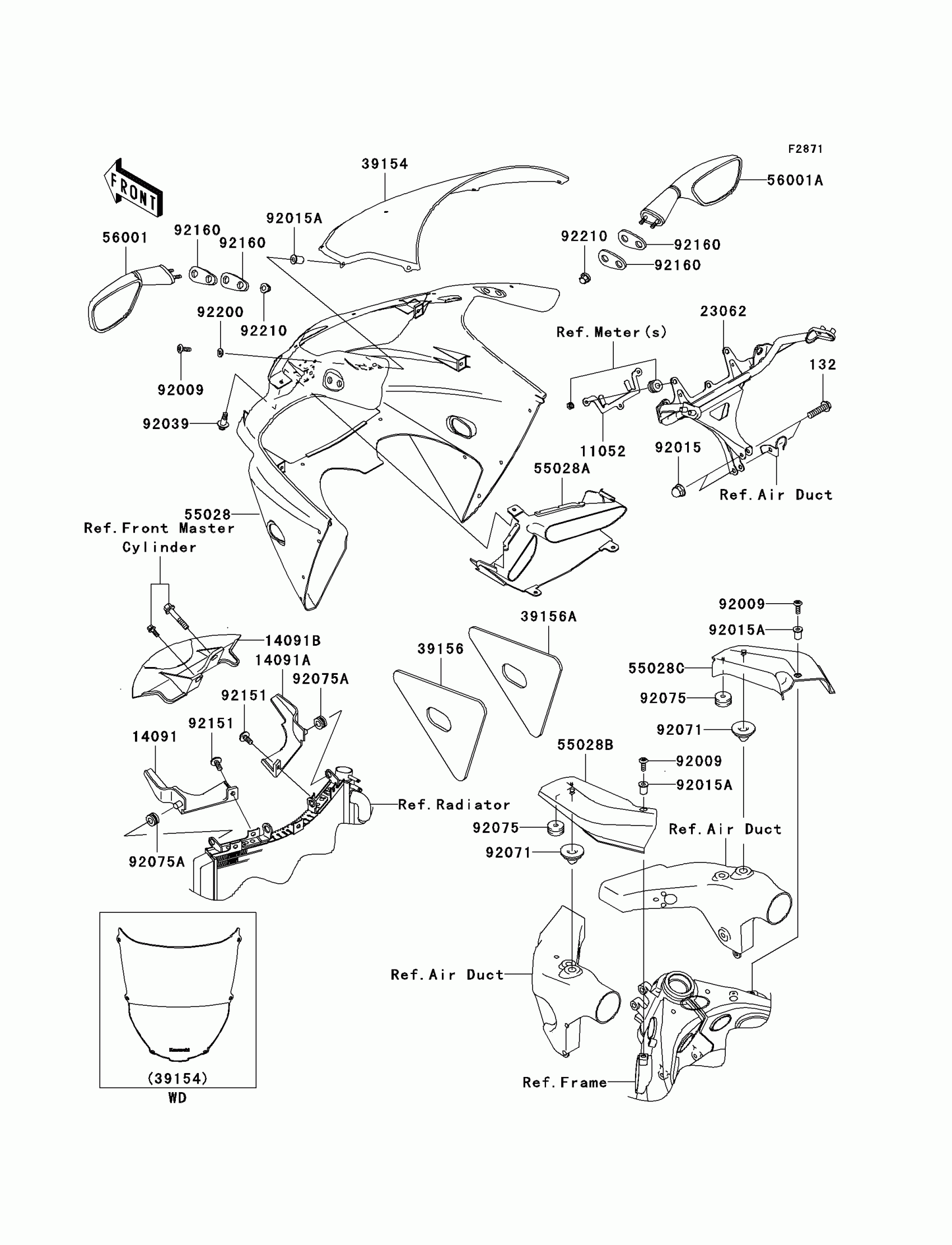

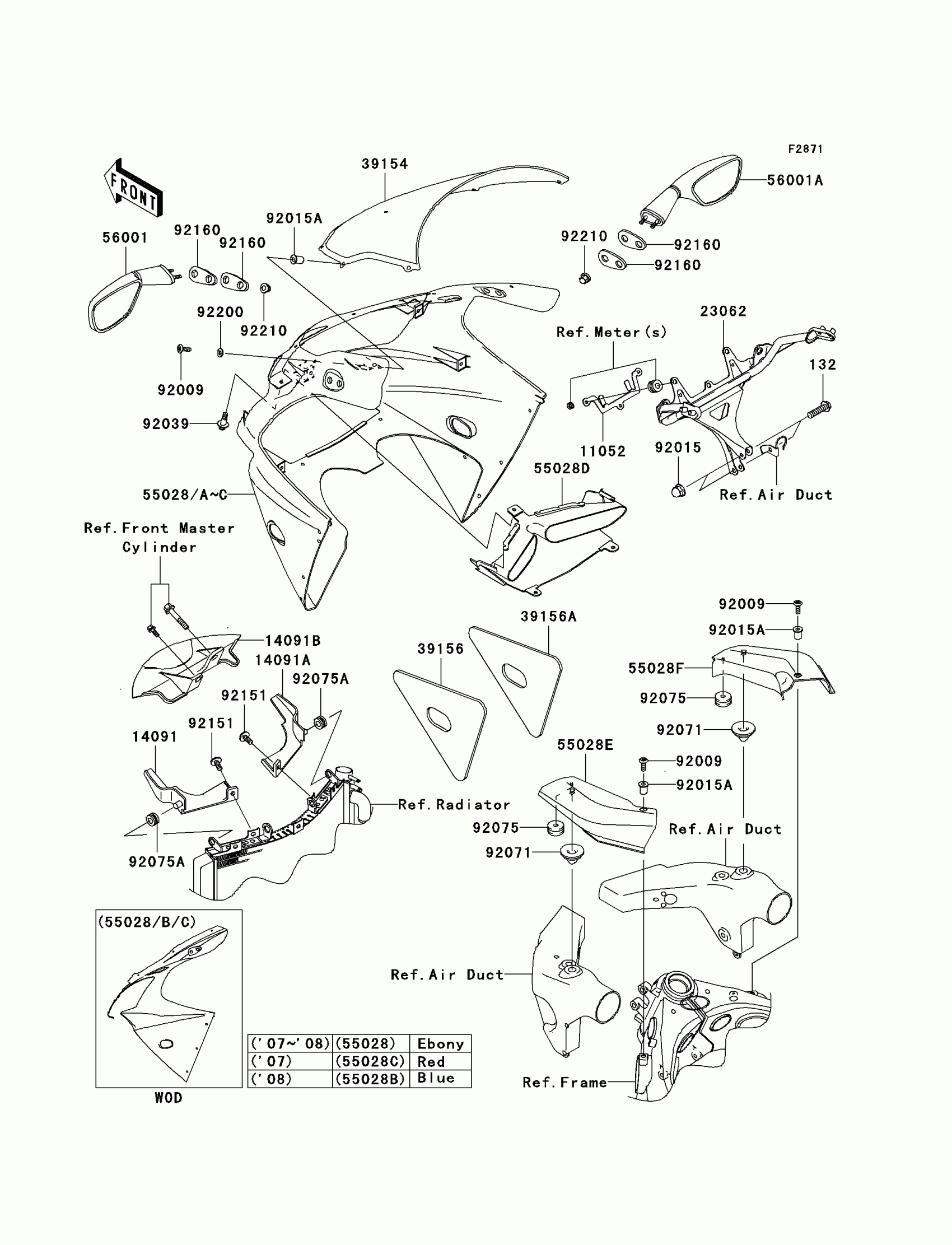

Kawasaki ZZR600 Cowling Diagram

BOLT-FLANGED-SMALL,8X30

BRACKET,HEAD LAMP RELAY

COVER,RADIATOR,LH

COVER,RADIATOR,RH

COVER,UNDER BRACKET

BRACKET-COMP,METER&MIRROR STAY

WINDSHIELD

PAD,UPP COWLING,LH

PAD,UPP COWLING,RH

COWLING,UPP,M.O.BLUE

COWLING,DUCT,M.F.C.GRAY

COWLING,INNER,LH

COWLING,INNER,RH

MIRROR-ASSY,LH

MIRROR-ASSY,RH

SCREW,5X16

NUT,CAP,8MM,BLACK

NUT,WELL,5MM

RIVET

GROMMET

DAMPER

DAMPER

BOLT,SOCKET,6X14

DAMPER,MIRROR

WASHER,NYLON,5.3X11.5X0.5

NUT,CAP,6MM
