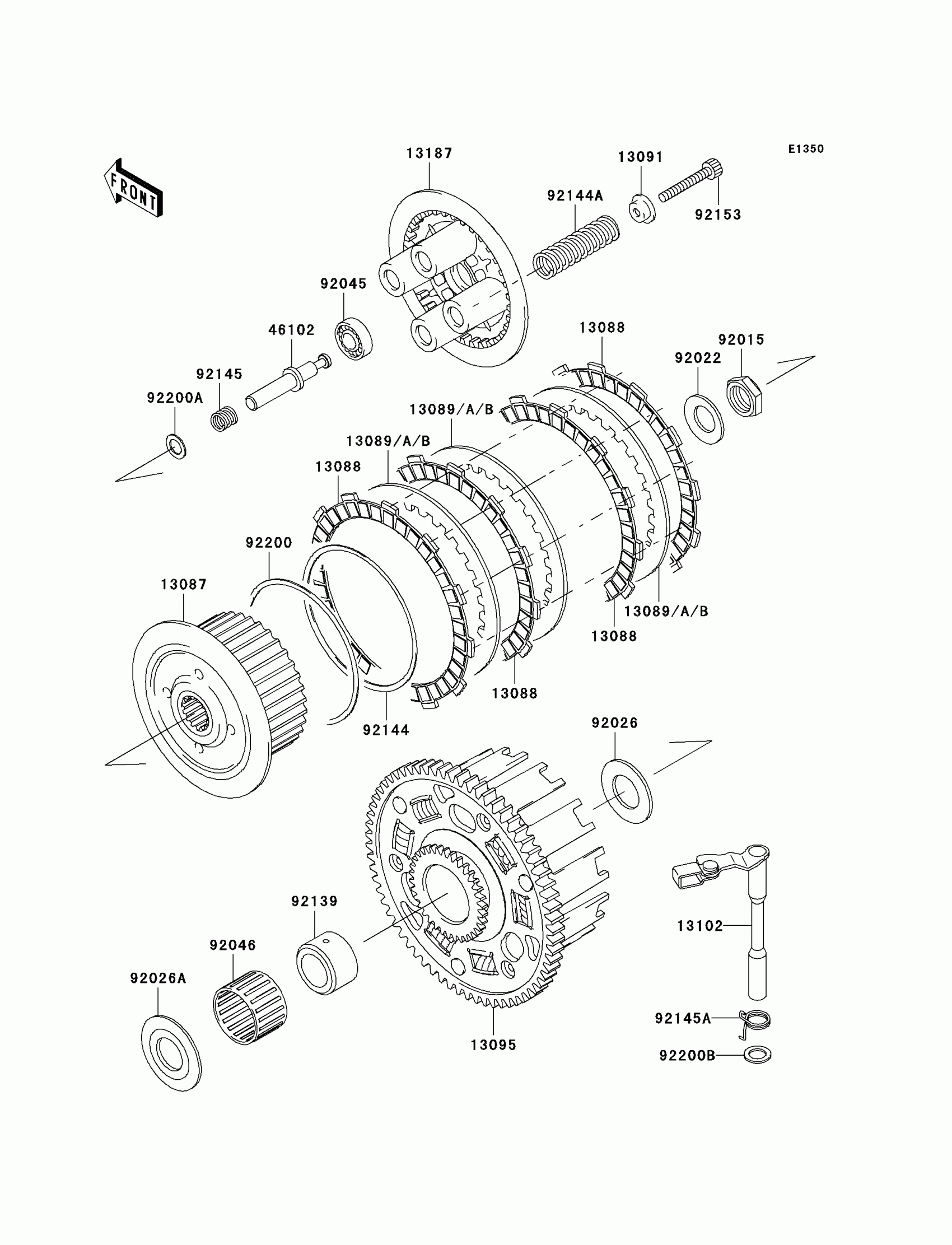

Kawasaki ZZR600 Clutch Diagram
#
Description
Price
13087
HUB-CLUTCH
13087-0006
$150.14
13088
PLATE-FRICTION
13088-1124
$18.35
13089
PLATE-CLUTCH,T=1.6
13089-013
$13.16
13089A
PLATE-CLUTCH,T=2.0
13089-1073
Unavailable
13089B
PLATE-CLUTCH,T=1.4
13089-1126
Unavailable
13091
HOLDER,CLUTCH SPRING
13091-1041
$12.23
13095
HOUSING-COMP-CLUTCH
13095-1392
$615.55
13102
RELEASE-COMP-CLUTCH
13102-1159
$68.42
13187
PLATE-CLUTCH OPERATING
13187-0003
$82.67
46102
ROD
46102-1449
$36.14
92015
NUT,20MM
92015-1555
$13.08
92022
WASHER,20.3X36X3.7
92022-1868
$9.51
92026
SPACER,25.5X47X2.5
92026-022
$9.91
92026A
SPACER
92026-1356
$12.74
92045
BEARING-BALL,6001C3ML01
92045-1235
$16.25
92046
BEARING-NEEDLE,K38X43X28.8X
92046-1263
$28.68
92139
BUSHING,25X38X29.05
92139-0067
$37.06
92144
SPRING,FRICTION PLATE
92144-1854
$8.90
92144A
SPRING,CLUTCH,L=82.1MM
92144-1881
$10.97
92145
SPRING,ROD
92145-1159
$2.64
92145A
SPRING
92145-1339
$4.58
92153
BOLT
92153-0332
$6.12
92200
WASHER,FRICTION PLATE
92200-1260
$10.28
92200A
WASHER,11.2X18X0.5
92200-1423
$2.67
92200B
WASHER,12X18.5X0.5
92200-1487
$2.75
