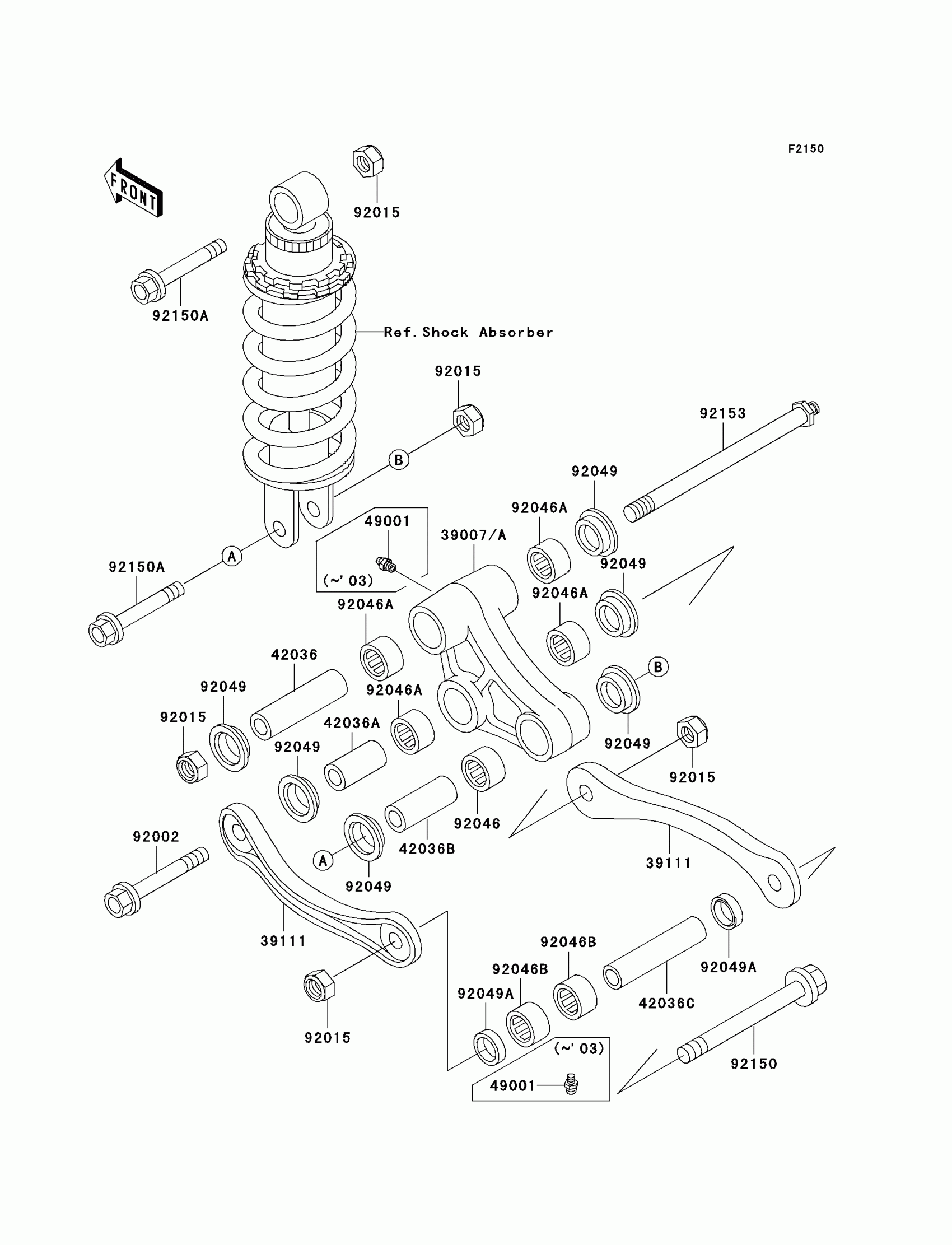

Kawasaki ZZR600 (Canada Only) Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0020

$197.17

39111

ROD-TIE,SUSPENSION

39111-1142

$92.35

42036

SLEEVE,12.1X20X74

42036-1102

$28.72

42036A

SLEEVE,12.1X20X40

42036-1108

$21.74

42036B

SLEEVE,12.1X20X50

42036-1111

$21.99

42036C

SLEEVE,12.1X18X82

42036-1231

$25.83

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92046

BEARING-NEEDLE,7E-HVS20X27X25

92046-1236

$19.86

92046A

BEARING-NEEDLE,7E-HVS20X27X15

92046-1237

$22.24

92046B

BEARING-NEEDLE,7E-HVS18X24X16

92046-1238

$19.04

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92150

BOLT,FLANGED,12X110

92150-1088

$14.27

92150A

BOLT,FLANGED,12X63

92150-1258

$12.71

92153

BOLT,SUSPENSION ARM

92153-0555

$36.34
