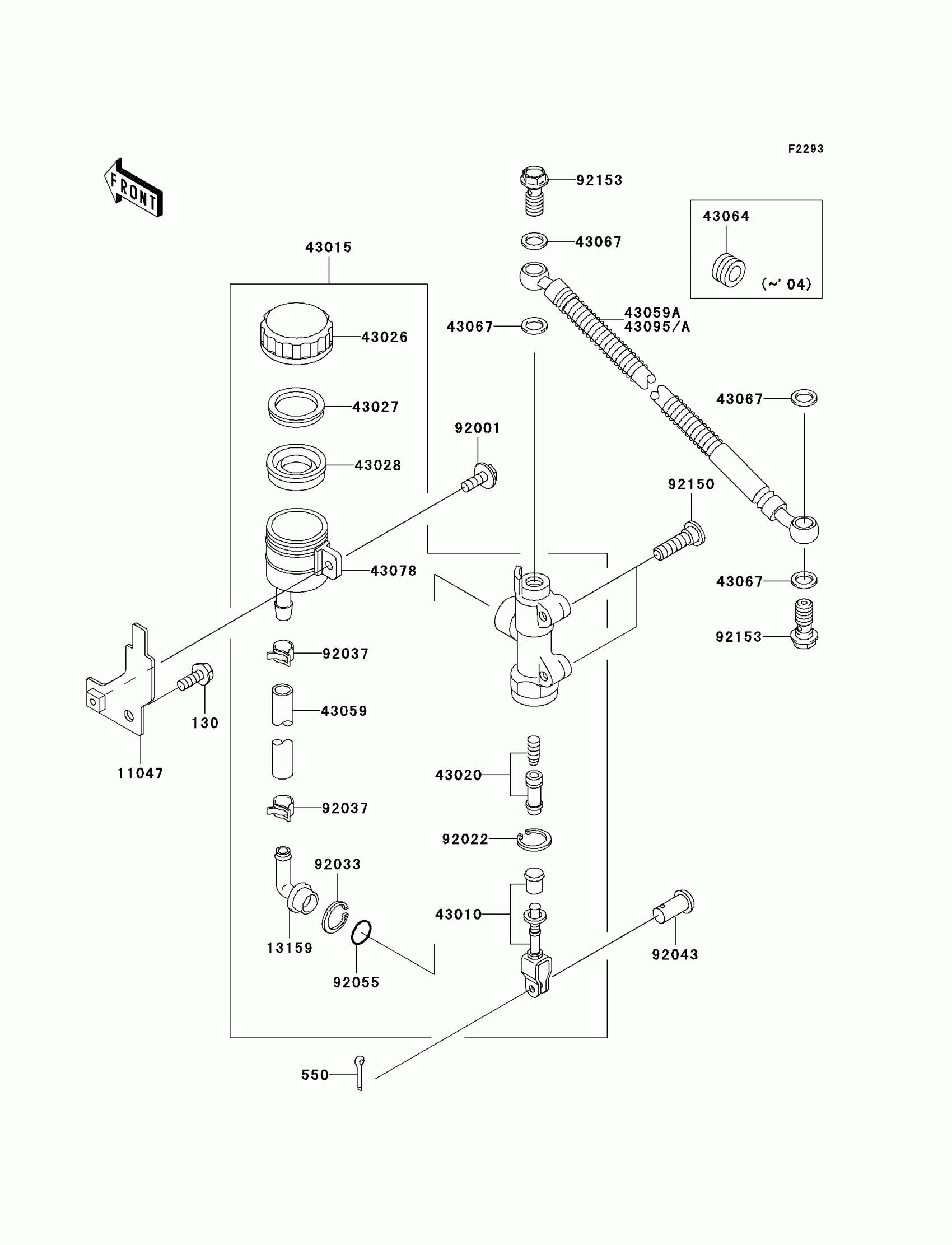

Kawasaki ZZR600 (Canada Only) Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

550

PIN COTTER 2.0X15

550D2015

$1.04

11047

BRACKET,RESERVOIR TANK

11047-1940

$9.02

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1055

$69.04

43015

CYLINDER-ASSY-MASTER,RR

43015-1510

$433.44

43020

PISTON-COMP-BRAKE

43020-1073

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1566

$39.57

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095A

HOSE-BRAKE,RR

43095-1382

Unavailable

92001

BOLT,W/P,6X16

92001-1860

$4.31

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,SOCKET,8X30

92150-1843

$3.90

92153

BOLT,OIL,L=23

92153-0627

$5.48
