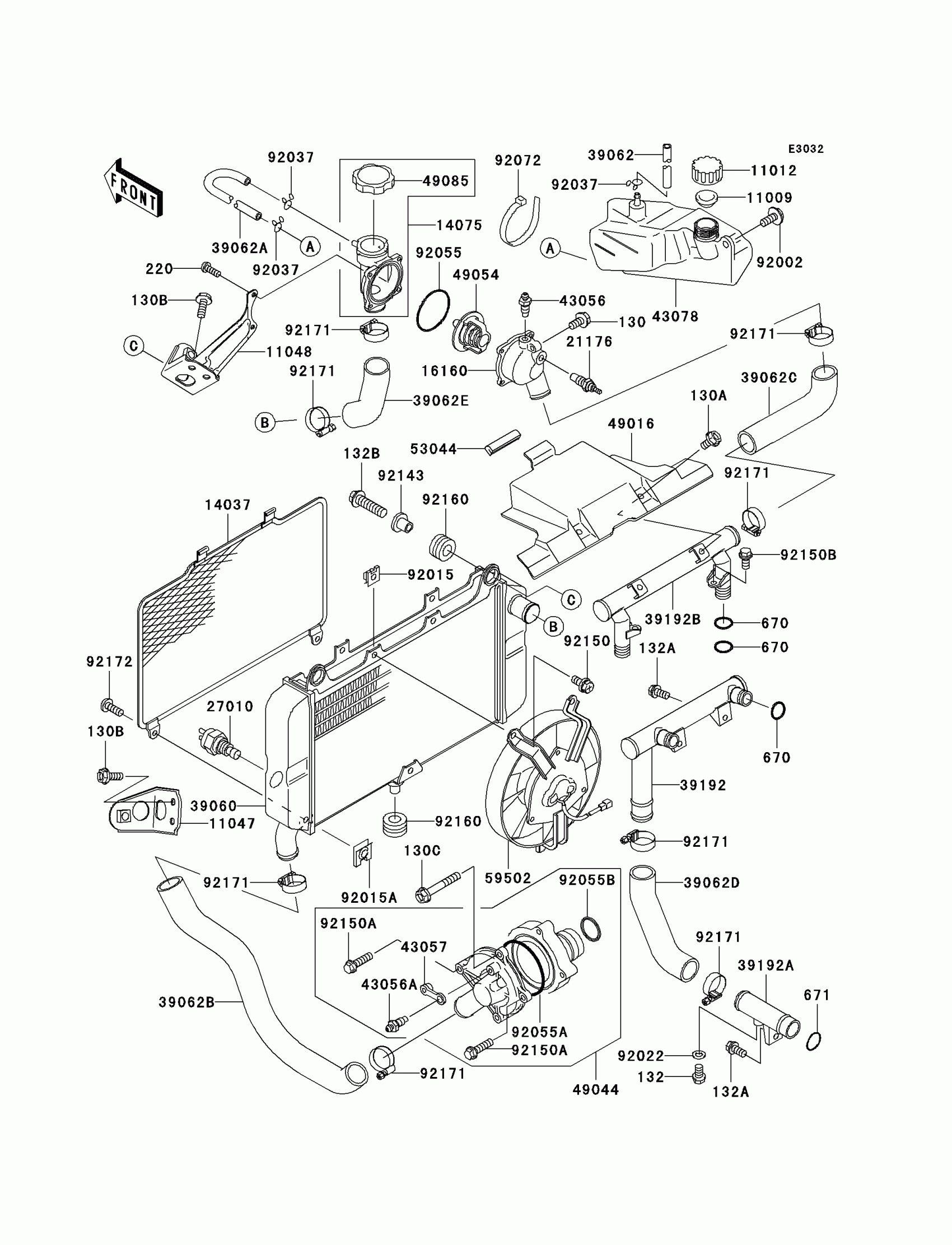

Kawasaki ZZR600 (Canada Only) Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11047
BRACKET,RADIATOR,UPP,LH
11047-1925
$15.89
11048
BRACKET,THERMOSTAT BODY
11048-1269
$25.59
14037
SCREEN,RADIATOR
14037-1171
$96.85
14075
CAP-ASSY
14075-1068
$170.71
16160
BODY,THERMOSTAT
16160-1117
$83.86
21176
SENSOR,WATER
21176-1054
$73.59
27010
SWITCH,FAN
27010-1202
$98.81
39060
RADIATOR
39060-1115
$678.56
39062
HOSE-COOLING
39062-1075
$26.45
39062A
HOSE-COOLING,RESERVOIR
39062-1285
$26.99
39062B
HOSE-COOLING,RADIATOR-PUMP
39062-1526
$70.55
39062C
HOSE-COOLING,HEAD-THERMOSTAT
39062-1528
$35.72
39062D
HOSE-COOLING,PUMP-CYLINDER
39062-1546
$42.12
39062E
HOSE-COOLING,THERMO-RADIATOR
39062-1547
$30.54
39192
PIPE-WATER
39192-1033
$138.44
39192A
PIPE-WATER
39192-1034
$57.35
39192B
PIPE-WATER
39192-1039
$132.80
43056
BREATHER
43056-003
$24.57
43056A
BREATHER-BRAKE
43056-1051
$15.74
43057
CAP-BREATHER
43057-1001
$4.91
43078
RESERVOIR
43078-1135
$72.42
49016
COVER-SEAL,HEAT
49016-1161
$35.35
49044
PUMP-WATER
49044-1087
$327.27
49054
THERMOSTAT
49054-1051
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1067
$53.94
53044
TRIM,L=40
53044-1174
$4.31
59502
FAN-ASSY
59502-1094
$796.93
92002
BOLT,6X16
92002-1720
$4.31
92015
NUT
92015-1487
$4.80
92015A
NUT,6MM
92015-1758
$6.88
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,53.5X2.6
92055-112
$6.63
92055A
RING-O,WATER PUMP INSIDE
92055-1423
$9.37
92055B
RING-O,33.2X2.4
92055-1424
$6.27
92072
BAND,L=202
92072-1195
$1.56
92143
COLLAR
92143-1450
$9.91
92150
BOLT,6X12
92150-1186
$3.37
130
BOLT-FLANGED,6X12
130G0612
$1.69
130A
BOLT-FLANGED,6X12
130H0612
$1.69
130B
BOLT-FLANGED,6X18
130J0618
$1.69
130C
BOLT-FLANGED
130Z0640
$2.84
132
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
132B
BOLT-FLANGED-SMALL,8X30
132J0830
$4.15
220
SCREW-PAN-CROS,5X14
220D0514
$4.04
670
O RING,16MM
670B2016
$1.36
671
O RING,25MM
671B2525
$5.00
92150A
BOLT,6X22
92150-1379
$4.87
92150B
BOLT,FLANGED-SMALL,6X12
92150-1841
$4.31
92160
DAMPER
92160-1007
$5.52
92171
CLAMP
92171-0179
$8.20
92172
SCREW,TAPPING,6X16
92172-0010
$3.16
