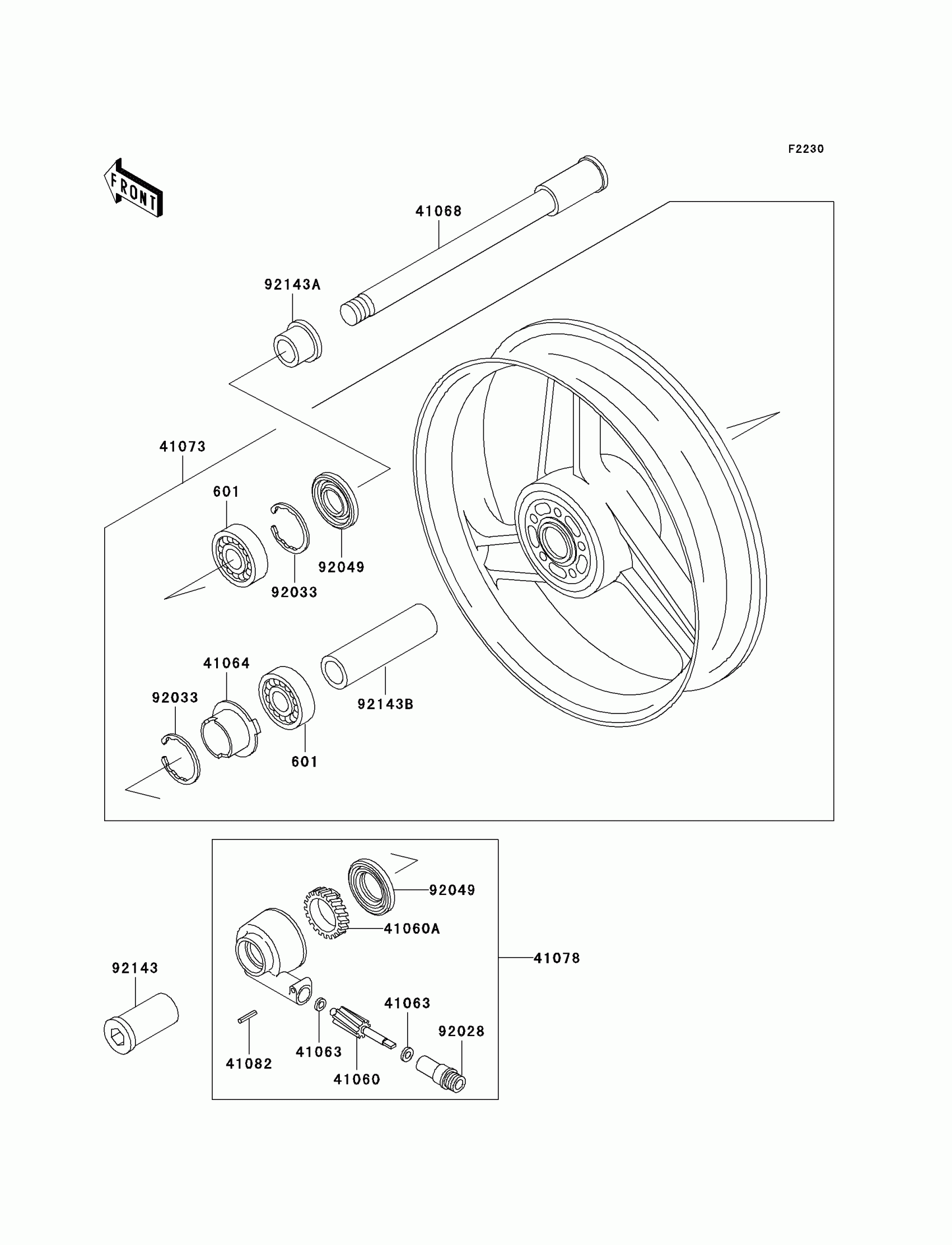

Kawasaki ZZR600 (Canada Only) Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6004UUC3

601B6004UU

$28.82

41060

GEAR-METER SCREW,9T

41060-1123

$20.35

41060A

GEAR-METER SCREW,23T

41060-1138

$30.89

41063

WASHER,5.1X9X0.4

41063-001

$4.69

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR

41068-1311

$72.40

41073

WHEEL-ASSY,FR,G.GRAY

41073-1518-GE

$943.66

41078

CASE-ASSY-METER GEAR

41078-1076

$118.99

41082

PIN,SPRING

41082-001

$3.92

92028

BUSHING,SPEEDOMETER

92028-1066

$11.29

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92143

COLLAR,FR AXLE,L=43.5

92143-1301

$24.01

92143A

COLLAR,FR AXLE,L=25.5

92143-1359

$25.19

92143B

COLLAR,FR HUB,L=86.5

92143-1479

$32.95
