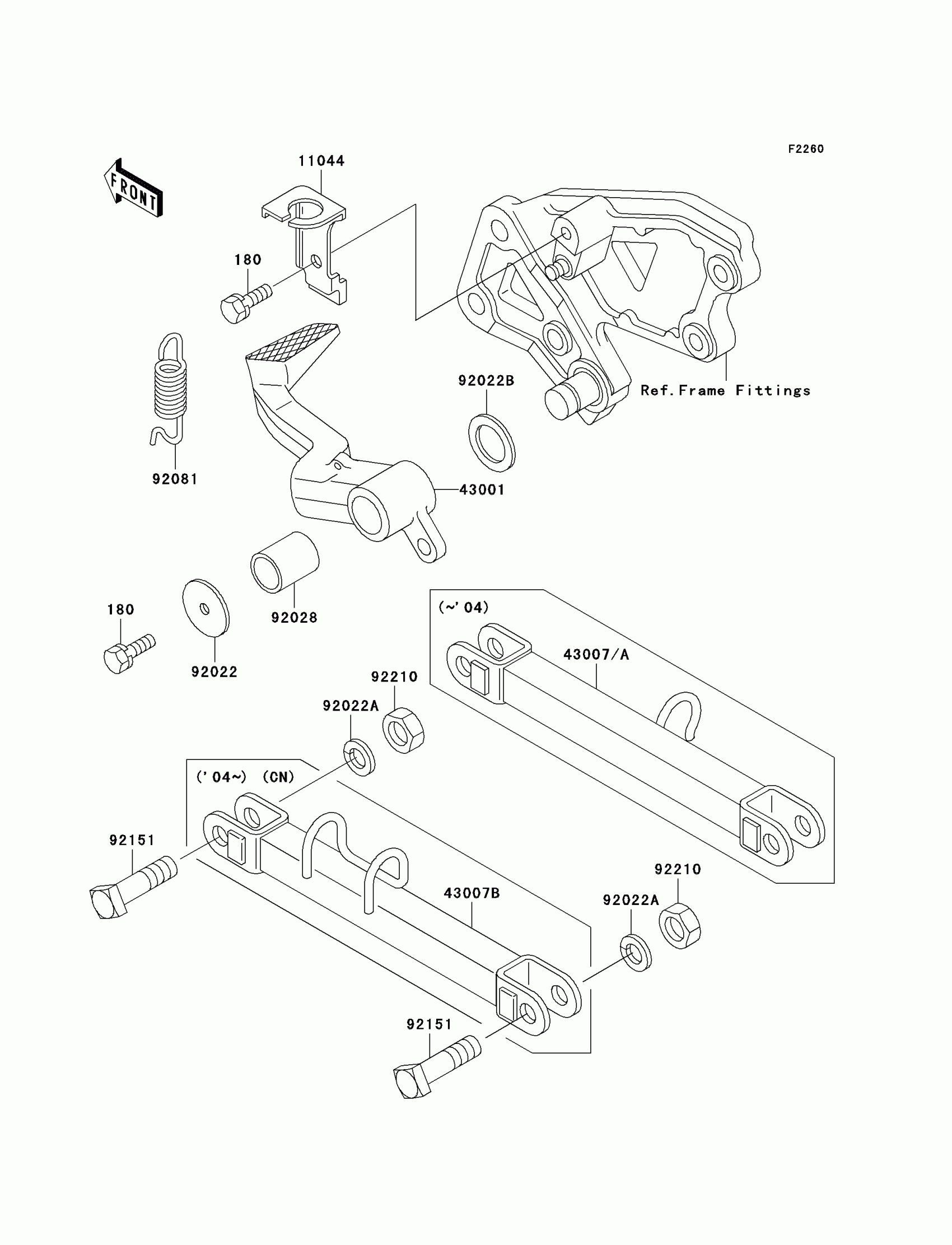

Kawasaki ZZR600 (Canada Only) Brake Pedal/Torque Link Diagram

#

Description
Price

180

BOLT-UPSET-WS,6X14

180H0614

$1.20

11044

BRACKET,RR BRAKE SWITCH

11044-1107

$10.62

43001

LEVER-BRAKE,PEDAL

43001-1224

$104.16

43007B

ROD-TORQUE,SILVER

43007-1192-TX

Unavailable

92022

WASHER,7X28X1.6

92022-1282

$4.69

92022A

WASHER,SPRING,10MM

92022-1540

$4.11

92022B

WASHER,15.3X24X1

92022-326

$3.92

92028

BUSHING,BRAKE PEDAL

92028-1282

$14.10

92081

SPRING,BRAKE PEDAL

92081-1833

$10.19

92151

BOLT,10X37

92151-1293

$4.60

92210

NUT,LOCK,10MM

92210-1184

$6.11
