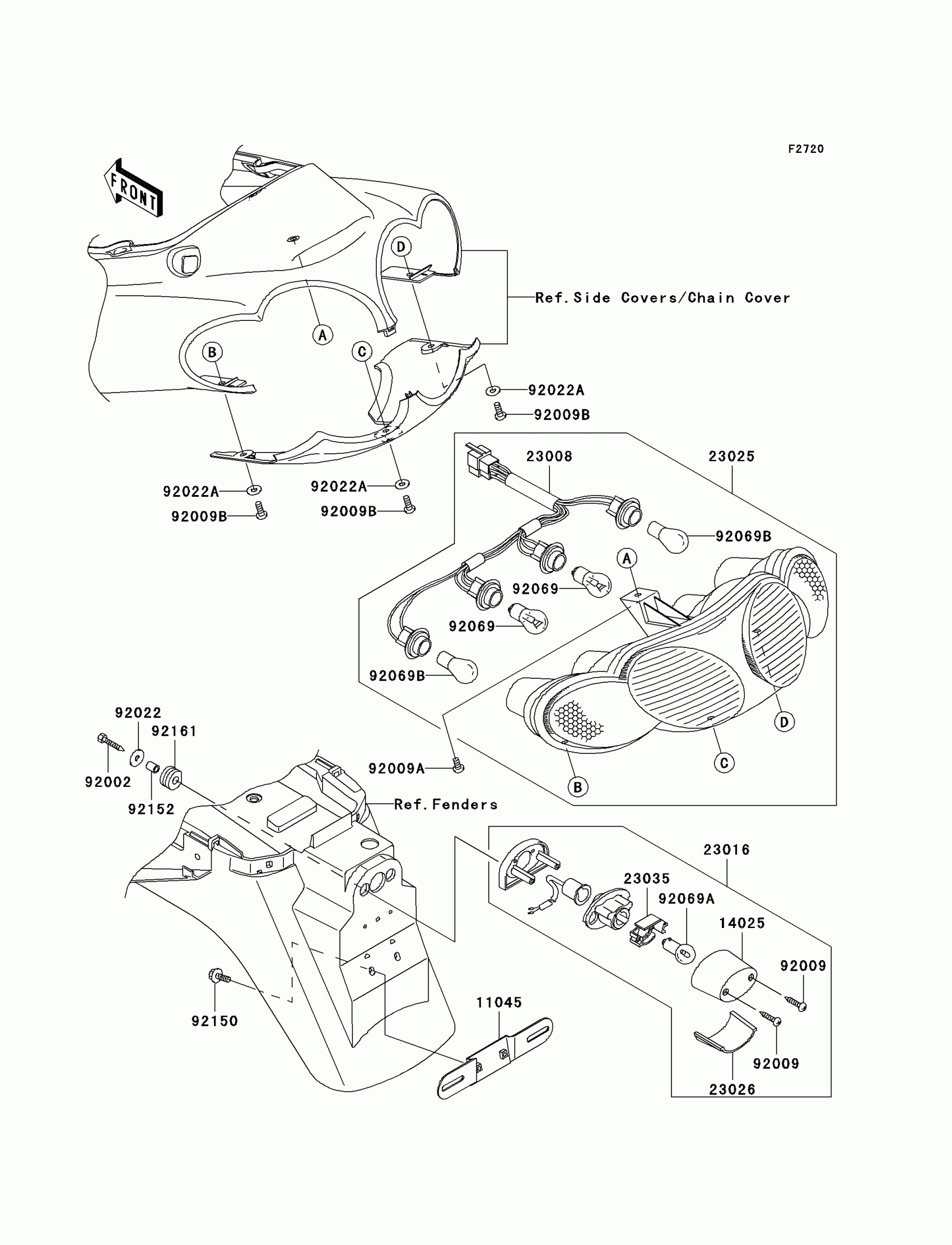

Kawasaki ZZR1200 Taillight(s)(C1/C2) Diagram

Description

Price

11045

BRACKET,LICENSE

11045-1387

$16.69

14025

COVER,LICENSE LAMP

14025-1725

$18.40

23008

SOCKET-ASSY,TAIL LAMP

23008-1667

$27.06

23016

LAMP-ASSY,LICENSE

23016-1193

$79.19

23025

LAMP-TAIL

23025-1324

$382.17

23026

LENS,LICENSE LAMP

23026-1064

$26.12

23035

REFLECTOR-LAMP,LICENSE

23035-1060

$23.41

92002

BOLT,TAPPING,5X25

92002-1831

Unavailable

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92009A

SCREW,6X12

92009-1744

$3.13

92009B

SCREW,6X16

92009-3771

$4.45

92022

WASHER,5.5X20X1.2

92022-1581

Unavailable

92022A

WASHER,6.5X16X1.0

92022-1654

$3.65

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

BULB,12V 5W

92069-1055

$5.18

92069B

BULB,12V 21W

92069-1125

$8.52

92150

BOLT,6X16

92150-1909

$4.49

92152

COLLAR,6X9X11.5

92152-1458

Unavailable

92161

DAMPER

92161-1313

Unavailable
