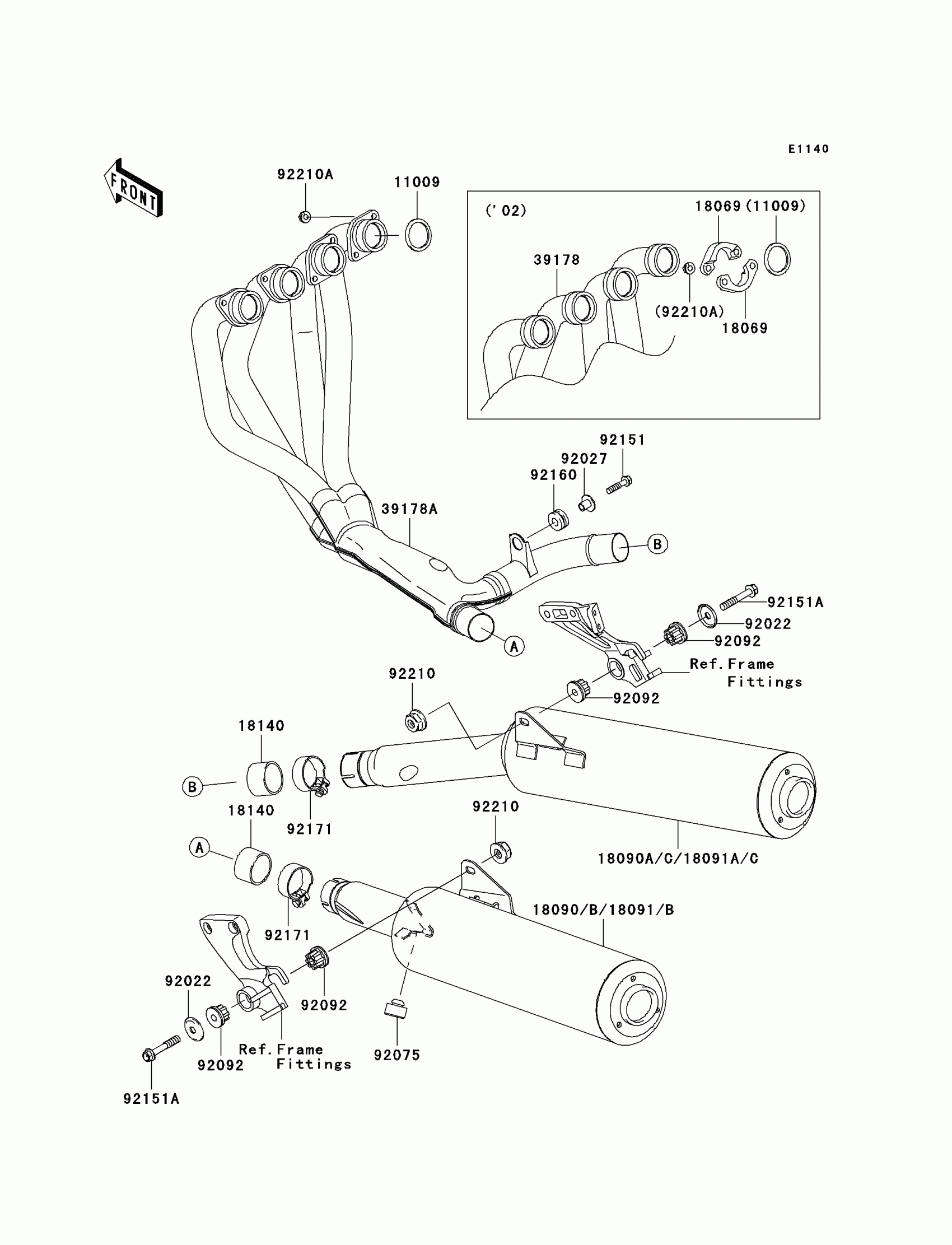

Kawasaki ZZR1200 Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE H

11009-1840

$8.17

18140

GASKET-MUFFLER

18140-1057

$14.26

39178A

MANIFOLD-COMP-EXHAUST

39178-1358

$1,379.85

92022

WASHER

92022-289

$16.33

92027

COLLAR,FUEL TANK FITT

92027-1134

$10.28

92075

DAMPER

92075-015

$5.00

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92151

BOLT,FLANGED,8X35

92151-1537

$2.67

92151A

BOLT,10X57

92151-1771

$7.51

92160

DAMPER

92160-1007

$5.52

92171

CLAMP

92171-1568

$27.31

92210

NUT,10MM

92210-1102

$4.18

92210A

NUT,8MM

92210-1114

$2.46

18091

BODY-COMP-MUFFLER,LH

18091-1071

$1,266.73

18091A

BODY-COMP-MUFFLER,RH

18091-1072

$1,266.73

18091B

BODY-COMP-MUFFLER,LH

18091-1075

$1,266.73

18091C

BODY-COMP-MUFFLER,RH

18091-1076

$1,266.73
