Description

Price

172

BOLT-STUD,6X14

172G0614

$1.74

311

NUT-HEX,6MM

311G0600

$2.19

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1155

$85.12

13165

PAWL

13165-1120

$14.10

13236

LEVER-COMP,GEAR POSITION

13236-1103

$19.85

13236A

LEVER-COMP,GEAR POSITION

13236-1216

$12.22

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1283

$115.97

13242A

LEVER-ASSY-CHANGE,BOSS

13242-1392

$54.91

39110

ROD-ASSY-TIE

39110-1129

$24.05

92004

STUD,CHANGE PEDAL,PIVOT

92004-1164

$18.22

92015

NUT,6MM

92015-1443

$3.92

92015A

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,12.5X22X1.2

92022-1593

$4.50

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92026A

SPACER

92026-1217

$5.52

92026B

SPACER,13.3X18X1.0

92026-1532

$4.46

92033

RING-SNAP,TYPE-E,10MM

92033-1178

$4.26

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$10.19

92144

SPRING

92144-1029

$7.77

92144A

SPRING,GEAR POSITION

92144-1523

$8.79

92144B

SPRING

92144-1856

$9.82

92150

BOLT,RETURN SPRING

92150-1869

$8.58

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

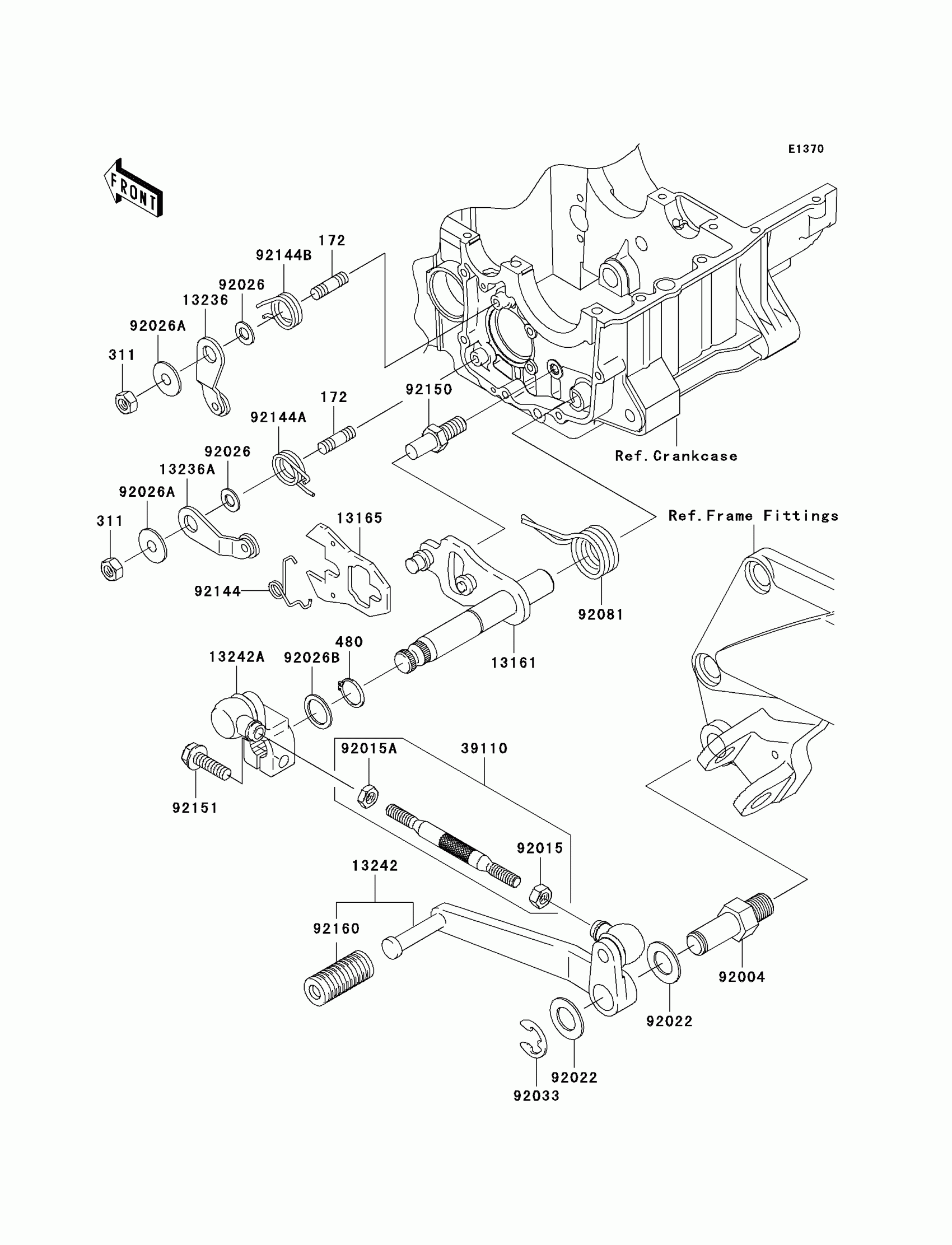

Kawasaki ZZR1200 Gear Change Mechanism Diagram

BOLT-STUD,6X14

NUT-HEX,6MM

CIRCLIP-TYPE-C,13MM

LEVER-COMP-CHANGE SHAFT

PAWL

LEVER-COMP,GEAR POSITION

LEVER-COMP,GEAR POSITION

LEVER-ASSY-CHANGE,PEDAL

LEVER-ASSY-CHANGE,BOSS

ROD-ASSY-TIE

STUD,CHANGE PEDAL,PIVOT

NUT,6MM

NUT,LEFT HANDED,6MM

WASHER,12.5X22X1.2

SPACER,6.3X12X1.0

SPACER

SPACER,13.3X18X1.0

RING-SNAP,TYPE-E,10MM

SPRING,CHANGE PEDAL RETURN

SPRING

SPRING,GEAR POSITION

SPRING

BOLT,RETURN SPRING

BOLT,FLANGED,6X20

DAMPER,CHANGE PEDAL
