Description

Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

44005

PIPE-LEFT FORK OUTER,P.SILVER

44005-1429-458

$558.35

44006

PIPE-RIGHT FORK OUTER,P.SILVER

44006-1429-458

$558.35

44013

PIPE-FORK INNER

44013-1504

$441.49

44023

CYLINDER-SET-FORK

44023-0010

$395.85

44026

SPRING-FRONT FORK

44026-1762

$101.61

44029

SEAT-FORK SPRING

44029-0004

$148.08

44037

HOLDER-FORK UNDER

44037-0008

$842.04

44039

HOLDER-FORK UPPER,P.SILVER

44039-0007-458

$346.06

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1142

$18.82

44065A

BUSHING-FRONT FORK

44065-1143

$18.82

44075

DAMPER-SET-FORK,P.SILVER

44075-0016-458

$1,935.70

55020

GUARD,FORK

55020-1691

$9.83

92001

BOLT,FORK CYLINDER

92001-1309

$7.62

92002

BOLT,SOCKET,8X45

92002-1847

$5.16

92015

NUT

92015-1795

$5.52

92022

WASHER

92022-1299

$8.58

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1496

$22.50

92055

RING-O

92055-1123

$6.22

92093

SEAL,FORK OUTER TUBE

92093-1480

$18.58

92143

COLLAR,FORK,L=90

92143-1645

$25.61

92153

BOLT,FLANGED,8X45

92153-1154

$3.67

92153A

BOLT,FLANGED,10X45

92153-1155

$3.67

92200

WASHER

92200-1349

$10.52

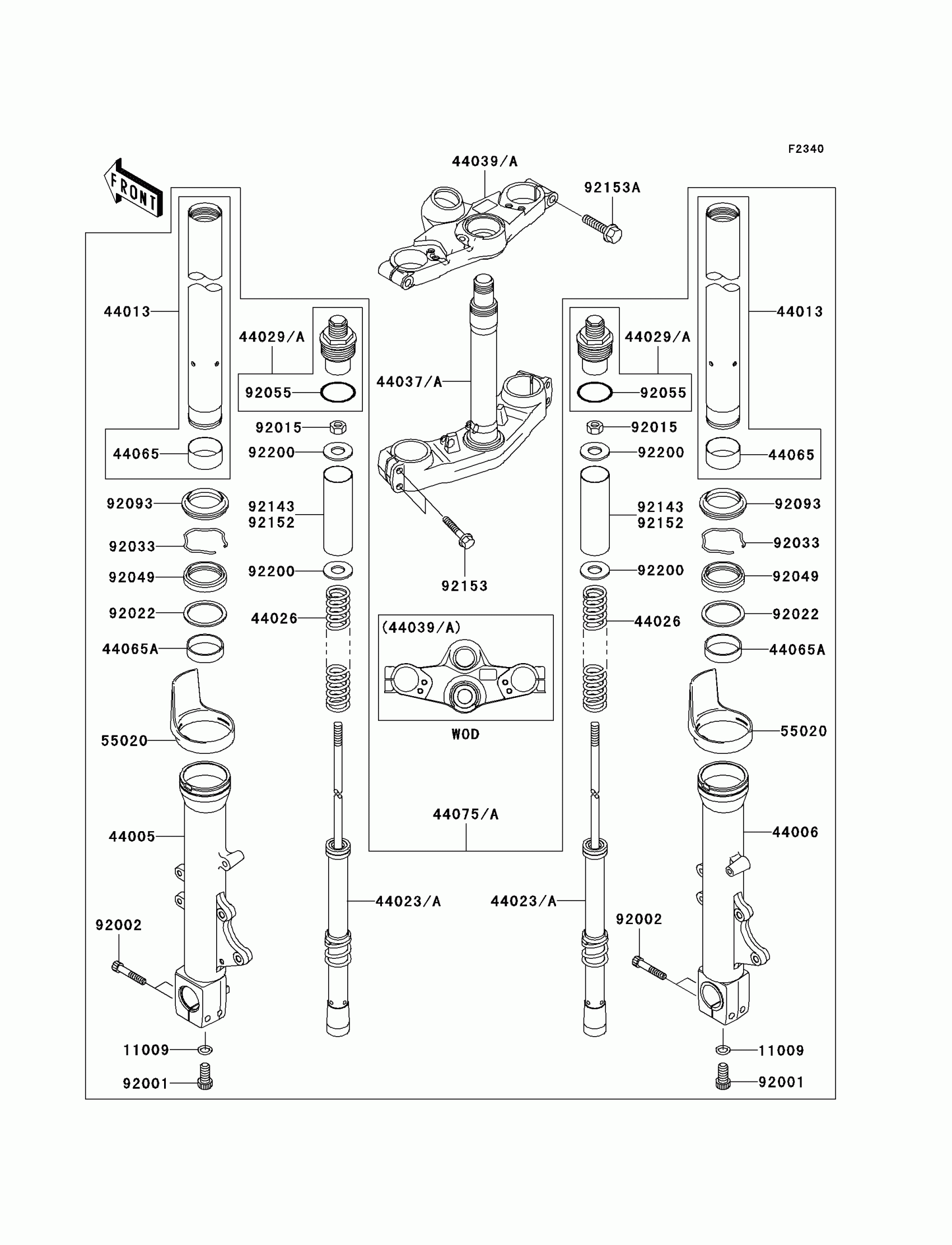

Kawasaki ZZR1200 Front Fork Diagram

GASKET,FORK CYLINDER BOLT

PIPE-LEFT FORK OUTER,P.SILVER

PIPE-RIGHT FORK OUTER,P.SILVER

PIPE-FORK INNER

CYLINDER-SET-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER

HOLDER-FORK UPPER,P.SILVER

BUSHING-FRONT FORK,INNER PIPE

BUSHING-FRONT FORK

DAMPER-SET-FORK,P.SILVER

GUARD,FORK

BOLT,FORK CYLINDER

BOLT,SOCKET,8X45

NUT

WASHER

RING-SNAP

SEAL-OIL,FORK OUTER TUBE

RING-O

SEAL,FORK OUTER TUBE

COLLAR,FORK,L=90

BOLT,FLANGED,8X45

BOLT,FLANGED,10X45

WASHER
