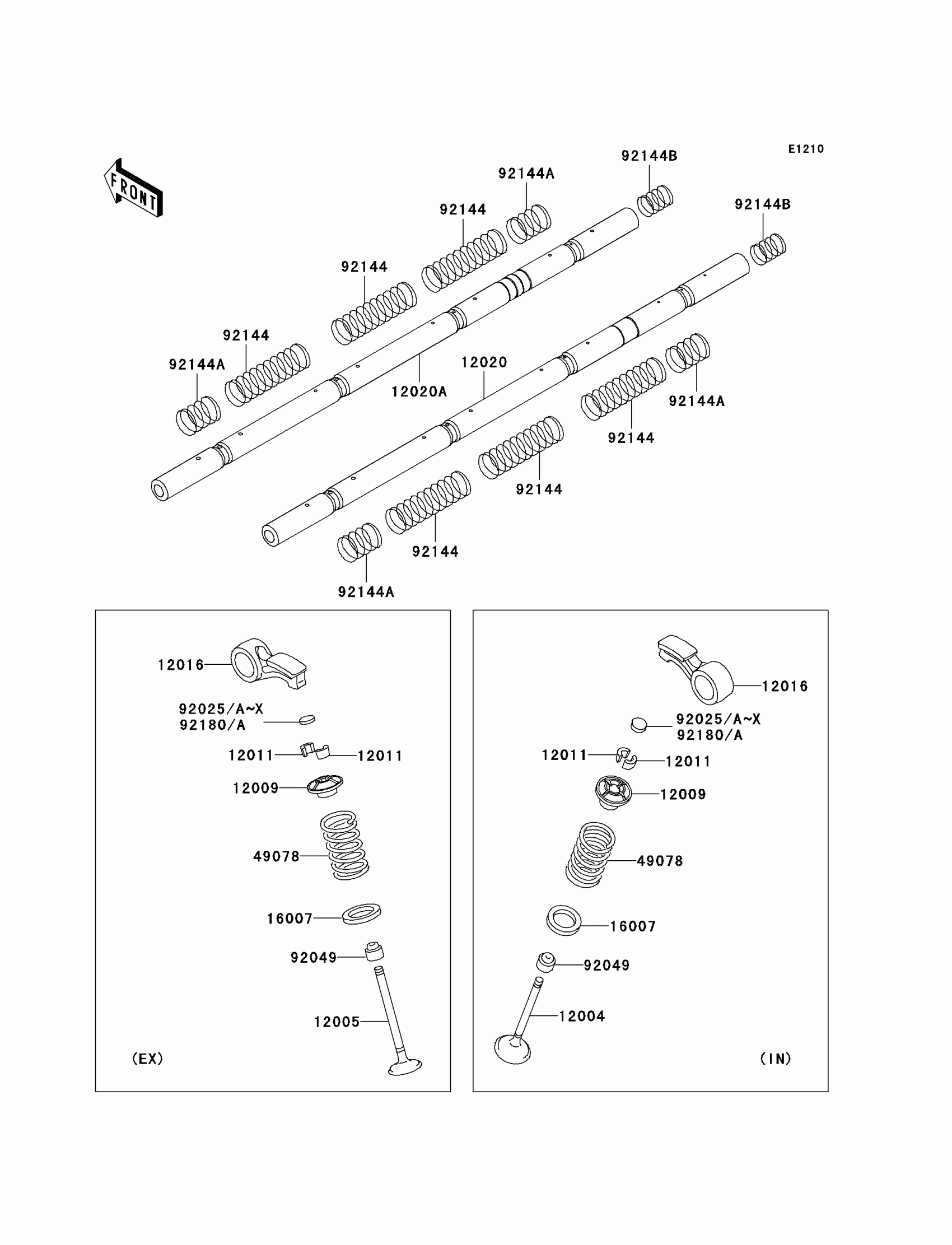

Kawasaki ZRX1200R Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-1115
$44.63
12005
VALVE-EXHAUST
12005-1240
$71.81
12009
RETAINER-VALVE SPRING
12009-1058
$12.76
12011
COLLET
12011-1051
$1.96
12016
ARM-ROCKER
12016-1105
Unavailable
12020
SHAFT-ROCKER,INTAKE
12020-1062
$81.86
12020A
SHAFT-ROCKER,EXHAUST
12020-1063
$81.86
16007
SEAT-SPRING,17.5X23.8X0.5
16007-1178
$6.16
49078
SPRING-ENGINE VALVE
49078-1153
$17.03
92025
SHIM,T=2.00
92025-1870
Unavailable
92025A
SHIM,T=2.05
92025-1871
Unavailable
92025B
SHIM,T=2.10
92025-1872
Unavailable
92025C
SHIM,T=2.15
92025-1873
Unavailable
92025D
SHIM,T=2.20
92025-1874
Unavailable
92025E
SHIM,T=2.25
92025-1875
Unavailable
92025F
SHIM,T=2.30
92025-1876
Unavailable
92025G
SHIM,T=2.35
92025-1877
Unavailable
92025H
SHIM,T=2.40
92025-1878
Unavailable
92025I
SHIM,T=2.45
92025-1879
Unavailable
92025J
SHIM,T=2.50
92025-1880
Unavailable
92025K
SHIM,T=2.55
92025-1881
Unavailable
92025L
SHIM,T=2.60
92025-1882
Unavailable
92025M
SHIM,T=2.65
92025-1883
Unavailable
92025N
SHIM,T=2.70
92025-1884
Unavailable
92025O
SHIM,T=2.75
92025-1885
Unavailable
92025P
SHIM,T=2.80
92025-1886
Unavailable
92025Q
SHIM,T=2.85
92025-1887
Unavailable
92025R
SHIM,T=2.90
92025-1888
Unavailable
92025S
SHIM,T=2.95
92025-1889
Unavailable
92025T
SHIM,T=3.00
92025-1890
Unavailable
92025U
SHIM,T=2.425
92025-1982
Unavailable
92025V
SHIM,T=2.475
92025-1983
Unavailable
92025W
SHIM,T=2.525
92025-1984
Unavailable
92025X
SHIM,T=2.575
92025-1985
Unavailable
92049
SEAL-OIL,VSB58.558
92049-1218
$4.08
92144
SPRING,ROCKER ARM,LONG
92144-1254
$7.27
92144A
SPRING,ROCKER ARM,SHORT
92144-1255
$7.27
92144B
SPRING
92144-1256
$7.27
92180
SHIM,T=2.375
92180-1058
Unavailable
92180A
SHIM,T=2.625
92180-1059
Unavailable
