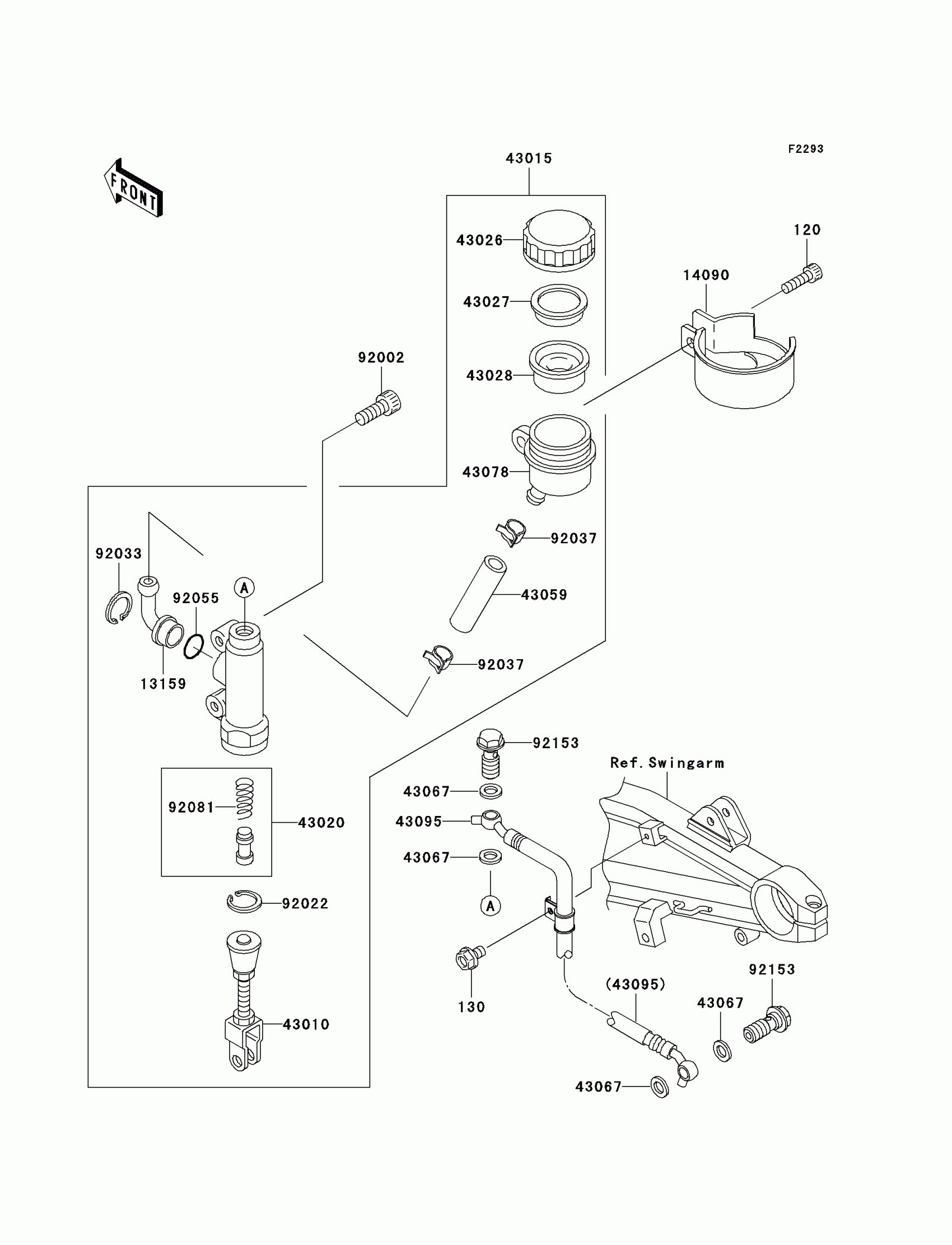

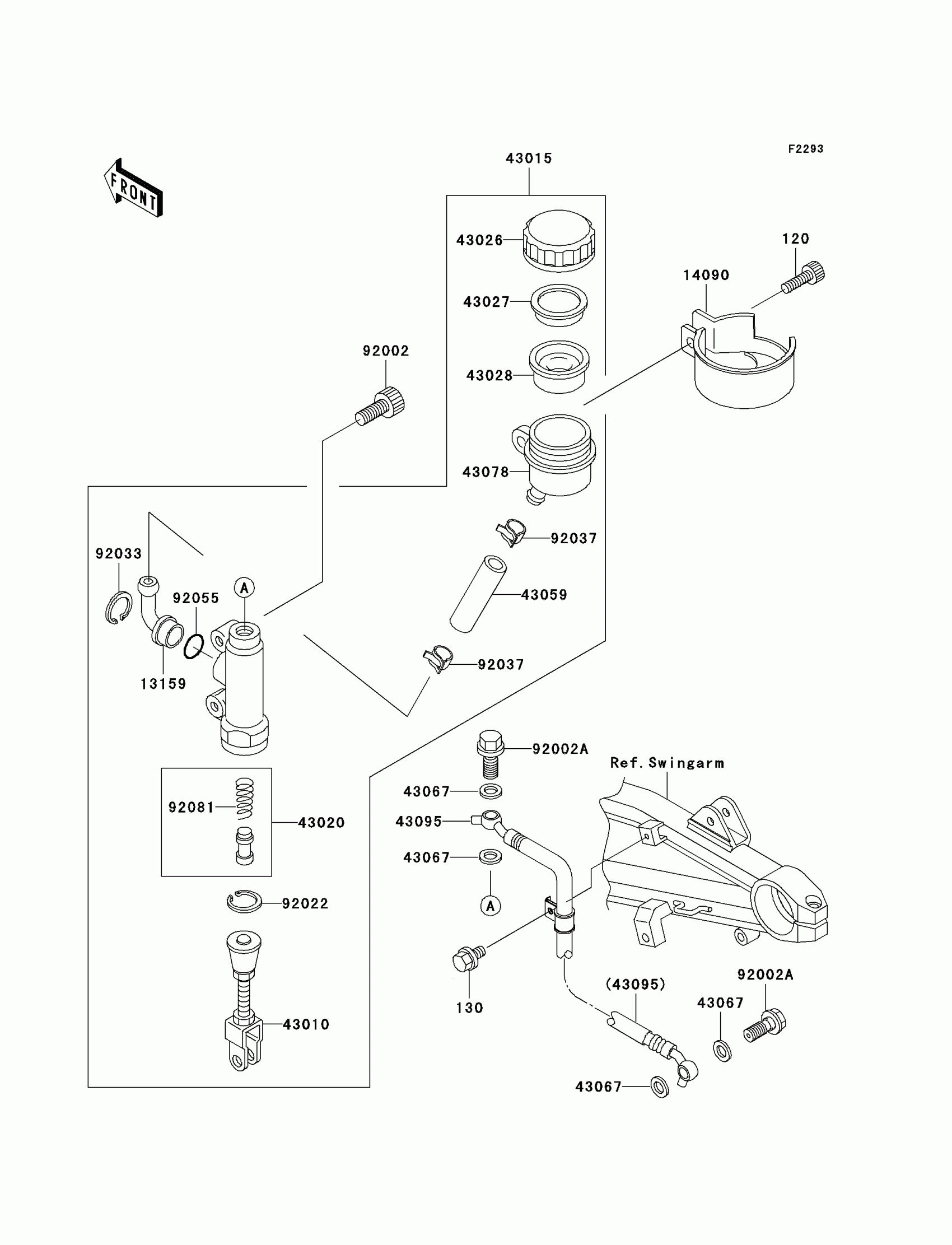

Kawasaki ZRX1200R Rear Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

130

BOLT-FLANGED

130J0610

$2.33

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

14090

COVER,RESERVOIR TANK

14090-1482

$22.32

43010

ROD-ASSY-BRAKE

43010-1077

$64.93

43015

CYLINDER-ASSY-MASTER,RR

43015-1677

$358.02

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1990

$36.33

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1165

$30.28

43095

HOSE-BRAKE,RR

43095-1200

Unavailable

92002

BOLT,SOCKET,8X20

92002-1178

$5.05

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23
