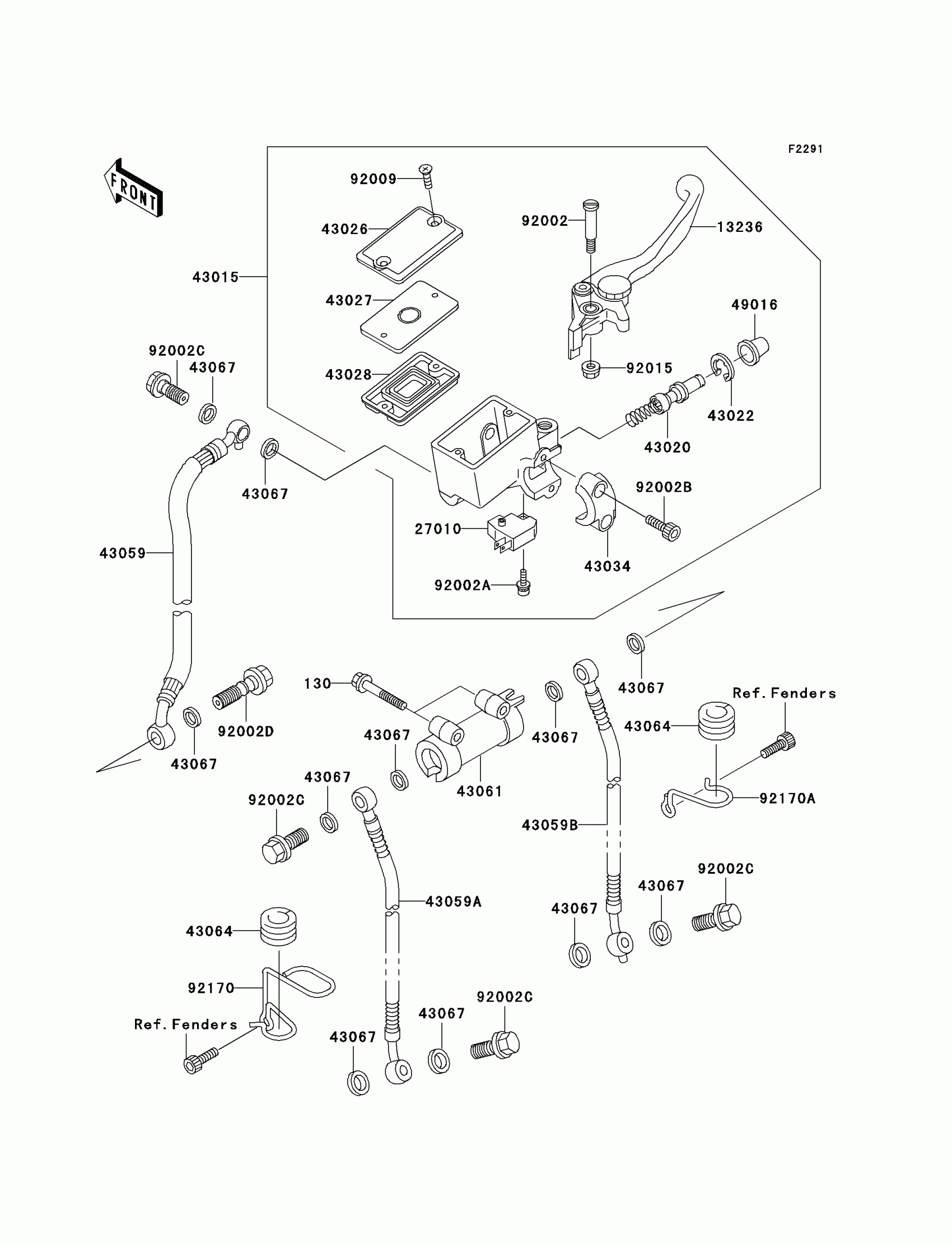

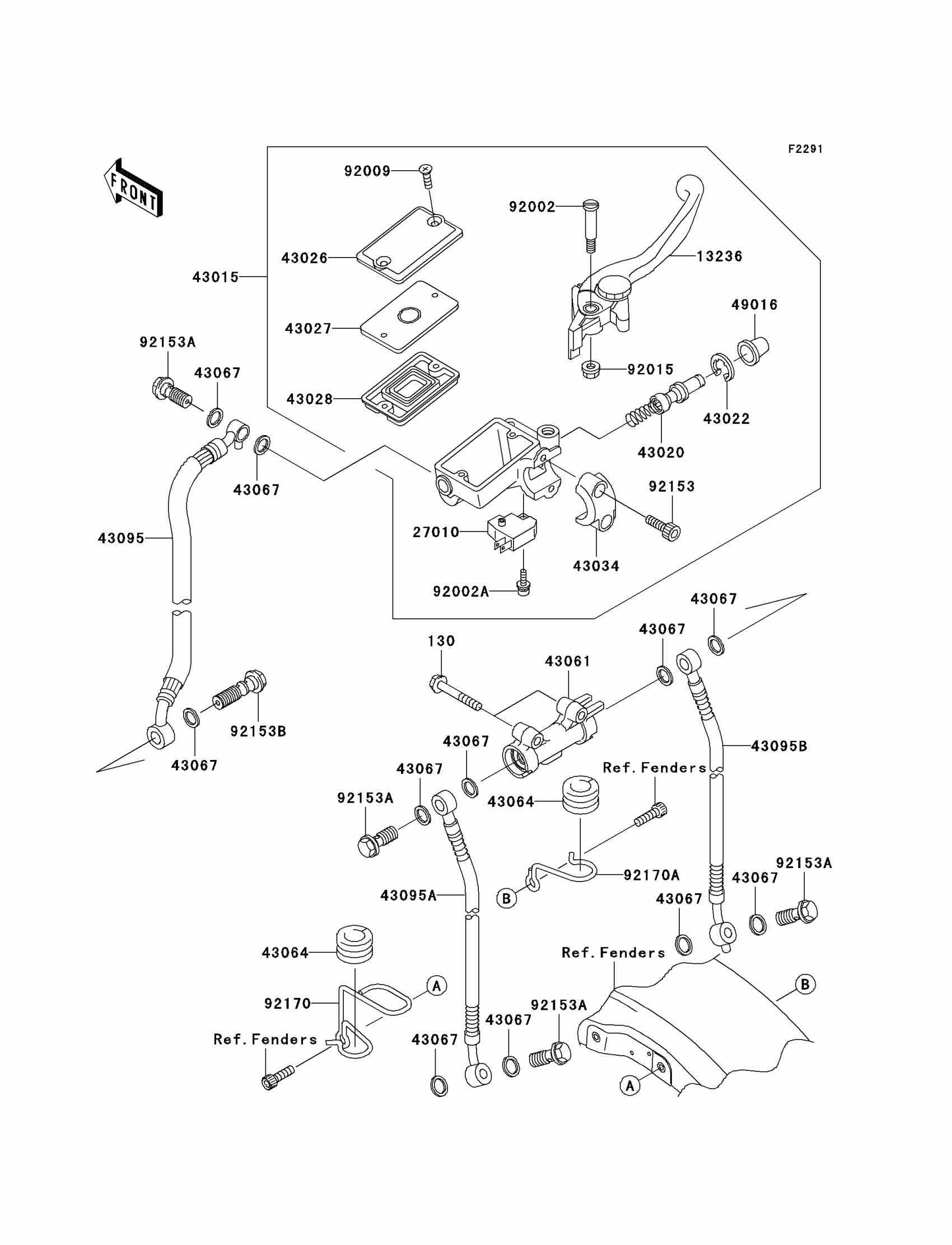

Kawasaki ZRX1200R Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X40

130J0640

$5.01

13236

LEVER-COMP,FRONT BRAKE

13236-1221

$48.29

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1650

$408.98

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43059

HOSE-BRAKE,FR,UPP

43059-1986

$90.52

43059A

HOSE-BRAKE,FR,LWR,LH

43059-1987

$96.51

43059B

HOSE-BRAKE,FR,LWR,RH

43059-1988

Unavailable

43061

JOINT-BRAKE

43061-1002

$72.14

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43067

WASHER,10.5X15X1.5

43067-001

$2.15

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92002D

BOLT,OIL,L=37

92002-1909

$11.83

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92170

CLAMP,HOSE

92170-1737

$18.50

92170A

CLAMP,HOSE

92170-1738

$13.80
