Description

Price

13271

PLATE,STAY,LH

13271-1698

$35.59

13271A

PLATE,STAY,RH

13271-1699

$33.39

35063

STAY,FR,LH

35063-0192

$214.76

35063A

STAY,FR,RH

35063-0193

$214.76

35063B

STAY,RR,LH

35063-0194

$204.93

35063C

STAY,RR,RH

35063-0195

$214.76

46075

GRIP,RR,LH,F.BLACK

46075-1141-21

$134.06

46075A

GRIP,RR,RH,F.BLACK

46075-1142-21

$126.81

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT

92015-1700

$8.58

92071

GROMMET,AIR FILTER

92071-1028

$7.27

92072

BAND,TOOL

92072-1417

$18.92

92150

BOLT,SOCKET,6X14

92150-1836

$4.69

92150A

BOLT,SOCKET,8X20

92150-1839

$2.15

92150B

BOLT,SOCKET,8X30

92150-1843

$3.90

92151

BOLT,FLANGED,8X25

92151-1204

$5.45

92170

CLAMP,DRAIN

92170-1777

$8.19

11050

BRACKET,TOOL BAND

11050-1115

$9.45

14090

COVER,TOOL CASE

14090-1794

$48.62

32098

CASE-TOOL

32098-1116

$92.12

32098A

CASE-TOOL

32098-1136

$275.02

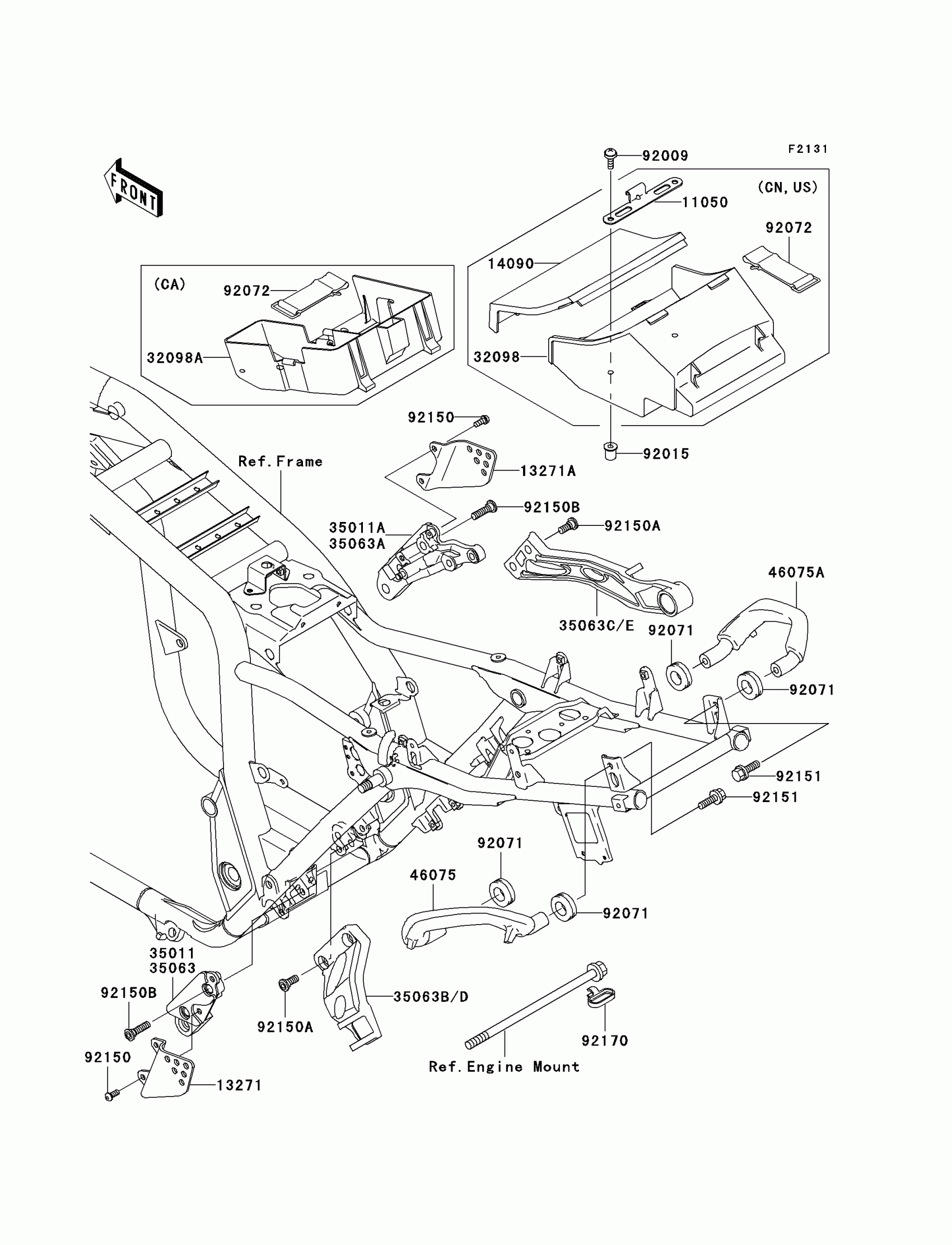

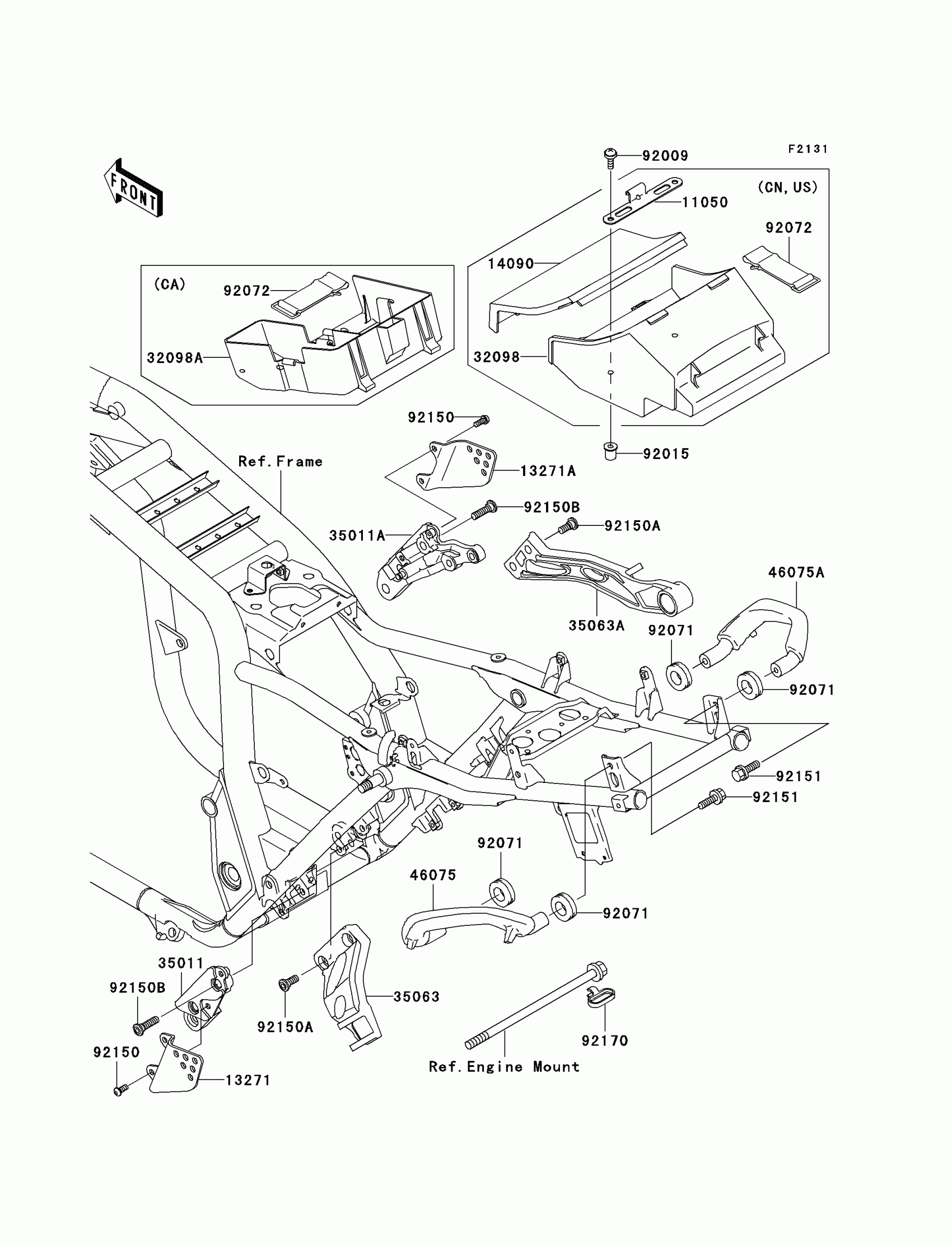

Kawasaki ZRX1200R Frame Fittings Diagram

PLATE,STAY,LH

PLATE,STAY,RH

STAY,FR,LH

STAY,FR,RH

STAY,RR,LH

STAY,RR,RH

GRIP,RR,LH,F.BLACK

GRIP,RR,RH,F.BLACK

SCREW,6X18

NUT

GROMMET,AIR FILTER

BAND,TOOL

BOLT,SOCKET,6X14

BOLT,SOCKET,8X20

BOLT,SOCKET,8X30

BOLT,FLANGED,8X25

CLAMP,DRAIN

BRACKET,TOOL BAND

COVER,TOOL CASE

CASE-TOOL

CASE-TOOL
