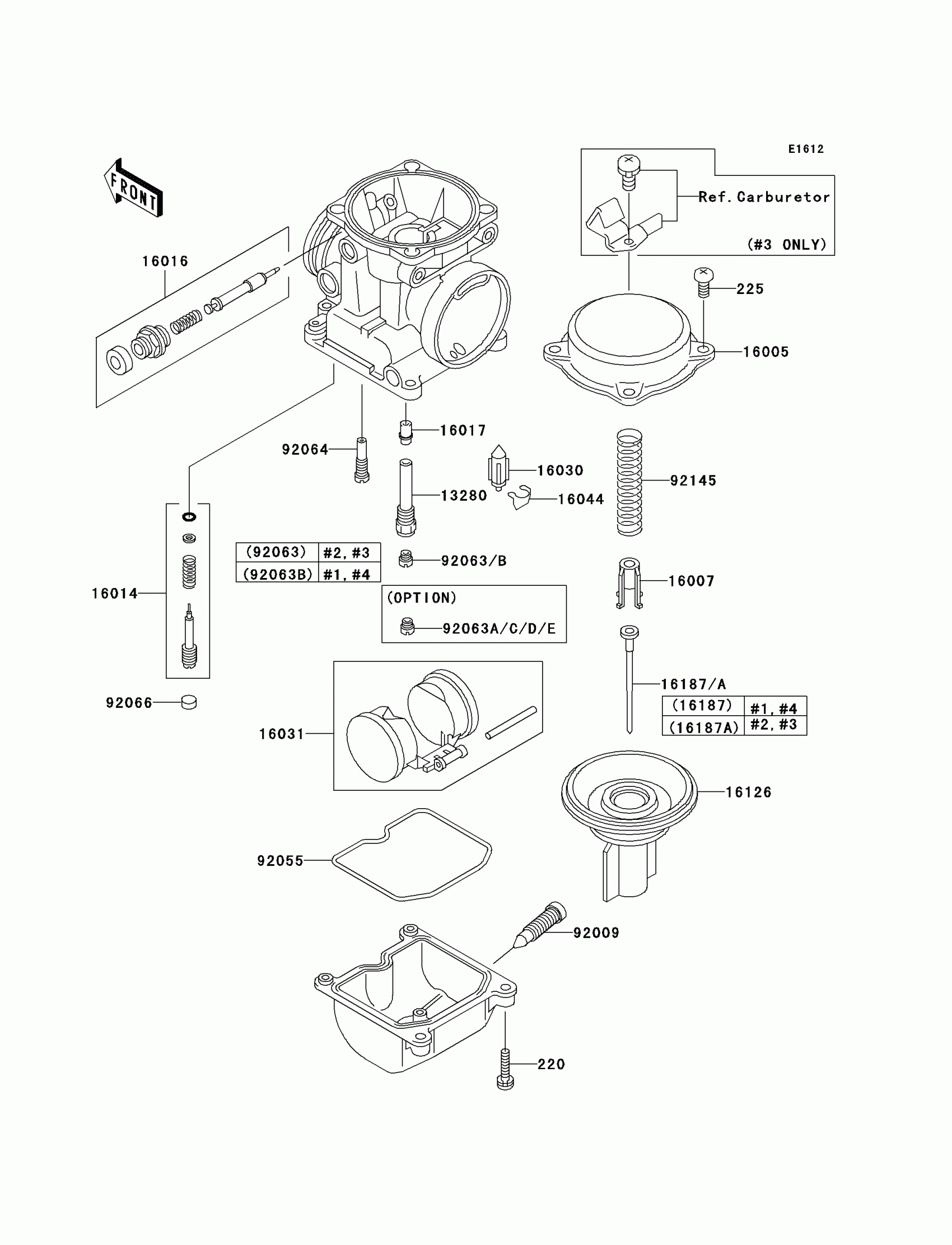

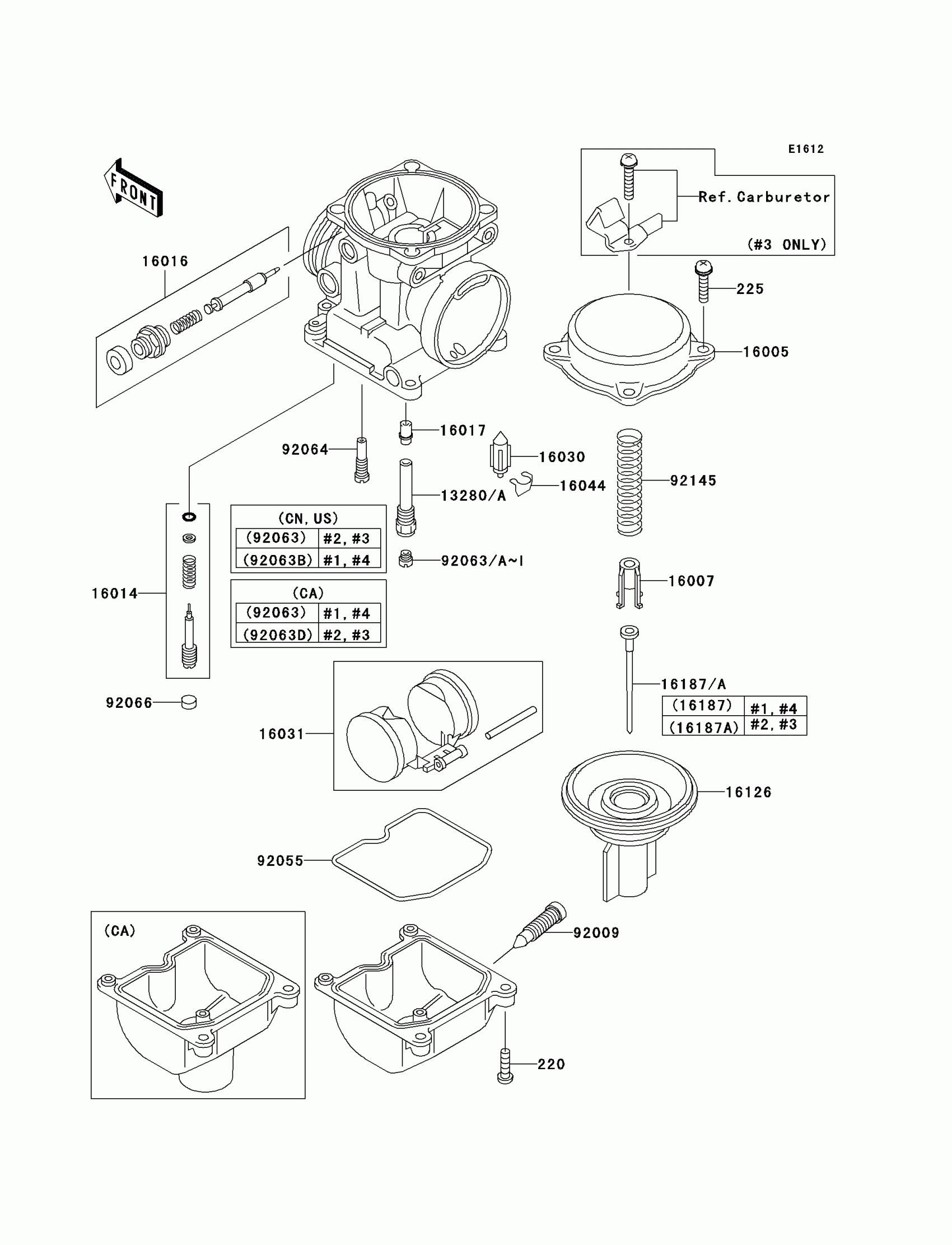

Kawasaki ZRX1200R Carburetor Parts Diagram
#
Description
Price
16005
TOP-CHAMBER,MIXING,27/60
16005-1057
$45.23
16007
SEAT-SPRING,VALVE
16007-1117
$25.03
16014
SCREW-PILOT AIR
16014-1080
$22.09
16016
PLUNGER,STARTER
16016-1090
$66.52
16017
JET-NEEDLE
16017-1440
$52.54
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1077
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE,VACUUM
16126-1338
$195.63
16187
NEEDLE-JET,NAGZ
16187-1200
$40.11
16187A
NEEDLE-JET,NAGU
16187-1201
$40.11
92009
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92055
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92063
JET-MAIN,#95
92063-1001
$15.04
92063A
JET-MAIN,#90
92063-1003
Unavailable
92063C
JET-MAIN,#92
92063-1004
Unavailable
92063E
JET-MAIN,#98
92063-1005
Unavailable
220
SCREW-PAN-CROS,4X14
220D0414
$4.60
225
SCREW-PAN-WSP-CROS,4X18
225C0418
$4.01
92064
JET-PILOT,#35
92064-1101
$17.03
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92145
SPRING,VACUUM VALVE
92145-1064
$29.95
13280
HOLDER,NEEDLE JET
13280-0101
$35.25
13280A
HOLDER,NEEDLE JET
13280-1054
$34.37
92063B
JET-MAIN,#92
92063-1004
$15.04
92063D
JET-MAIN,#98
92063-1005
$15.04
92063F
JET-MAIN,#100
92063-1006
Unavailable
92063G
JET-MAIN,#100
92063-1008
Unavailable
92063H
JET-MAIN,#88
92063-1024
Unavailable
92063I
JET-MAIN,#102
92063-1115
Unavailable
