Description

Price

13168

LEVER,STARTER

13168-1245

$123.33

13169

PLATE,STARTER CABLE

13169-1871

$27.35

14025

COVER,AIR CUT VALVE

14025-1903

$58.45

15003

CARBURETOR-ASSY

15003-0036

$2,046.55

15011

CARBURETOR,LH,OUTSIDE

15011-0043

Unavailable

15011A

CARBURETOR,LH,INSIDE

15011-0044

Unavailable

15011B

CARBURETOR,RH,INSIDE

15011-0045

Unavailable

15011C

CARBURETOR,RH,OUTSIDE

15011-0046

Unavailable

16021

SCREW-THROTTLE STOP

16021-1204

$108.77

21176

SENSOR,THROTTLE

21176-1073

$490.70

43028

DIAPHRAGM,4.9MM,AIR CUT VALVE

43028-1084

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING

92005-1310

$33.74

92005A

FITTING

92005-1314

$40.52

92005B

FITTING,FUEL

92005-1392

$27.78

92009

SCREW

92009-1262

$6.61

92009A

SCREW,5X10

92009-1365

$7.34

92009B

SCREW

92009-1781

$2.76

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-1142

$4.31

92037B

CLAMP,TUBE

92037-1185

$6.15

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

223

SCREW-PAN-WS-CROS,4X20

223C0420

$4.30

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223B

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28

92037C

CLAMP,TUBE

92037-1201

$4.60

92037D

CLAMP

92037-2082

$1.45

92055

RING-O

92055-1245

$5.57

92059

TUBE,3.5X6.5X180

92059-1140

$23.25

92068

PLUG,12X25

92068-006

$4.26

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,STARTER LEVER

92081-1762

$24.32

92143

COLLAR

92143-1907

$9.50

92144

SPRING

92144-1451

$9.58

92144A

SPRING

92144-1885

Unavailable

92144B

SPRING,THROTTLE ADJUST CNT

92144-1986

$6.87

92145

SPRING,FUEL TUBE

92145-1420

$8.02

92191

TUBE,FUEL

92191-1007

$13.32

92191A

TUBE

92191-1017

$11.40

92191B

TUBE,AIR VENT

92191-1118

$38.08

92200

WASHER

92200-1369

$4.62

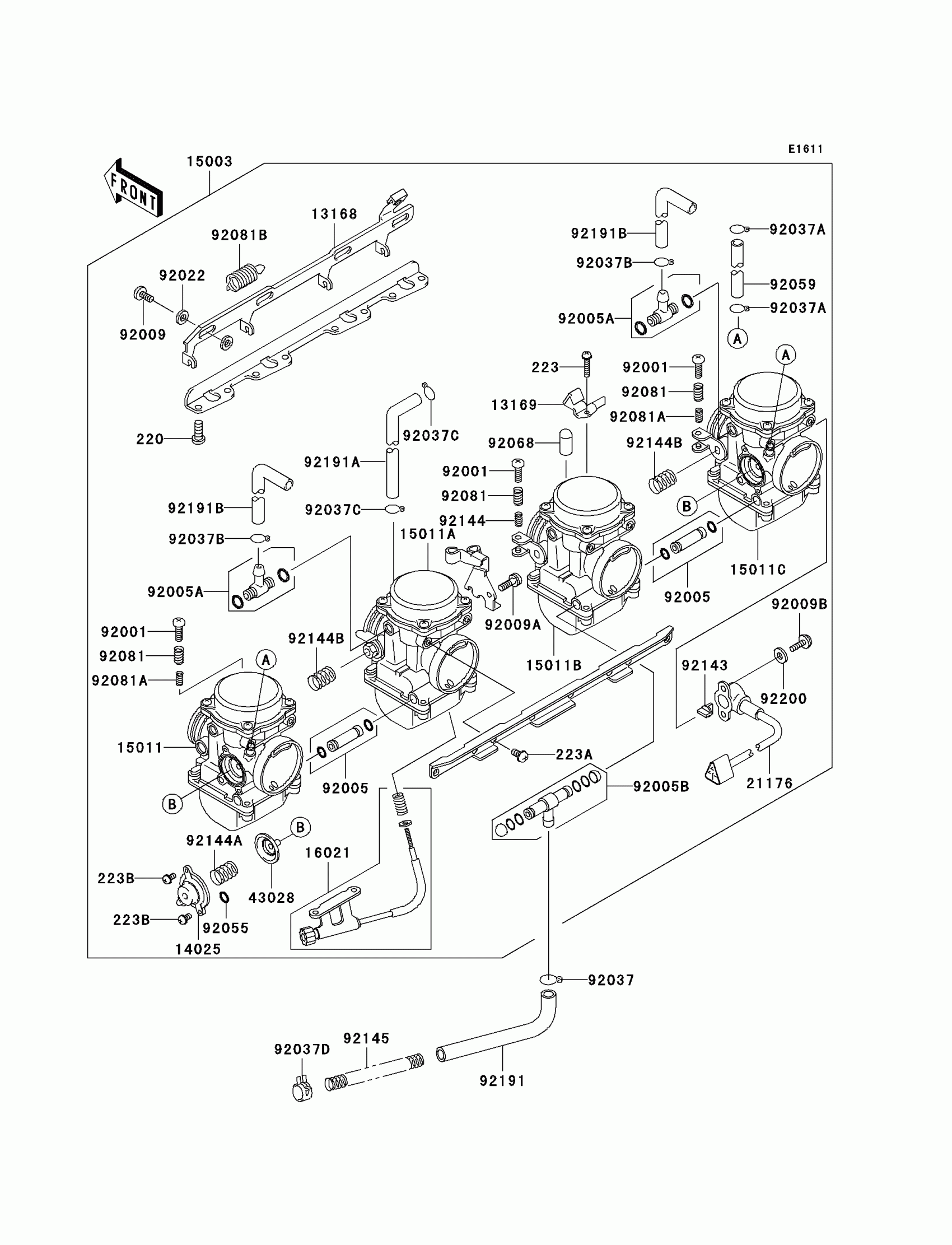

Kawasaki ZRX1200R Carburetor(CN,US) Diagram

LEVER,STARTER

PLATE,STARTER CABLE

COVER,AIR CUT VALVE

CARBURETOR-ASSY

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

SCREW-THROTTLE STOP

SENSOR,THROTTLE

DIAPHRAGM,4.9MM,AIR CUT VALVE

BOLT,THROTTLE ADJUST

FITTING

FITTING

FITTING,FUEL

SCREW

SCREW,5X10

SCREW

WASHER,6.1X11X0.8,POLYACETAL

CLAMP-HOSE

CLAMP,TUBE

CLAMP,TUBE

SCREW-PAN-CROS,6X16

SCREW-PAN-WS-CROS,4X20

SCREW-PAN-WS-CROS,5X10

SCREW-PAN-WS-CROS,4X8

CLAMP,TUBE

CLAMP

RING-O

TUBE,3.5X6.5X180

PLUG,12X25

SPRING

SPRING,THROTTLE ADJUST LWR

SPRING,STARTER LEVER

COLLAR

SPRING

SPRING

SPRING,THROTTLE ADJUST CNT

SPRING,FUEL TUBE

TUBE,FUEL

TUBE

TUBE,AIR VENT

WASHER
