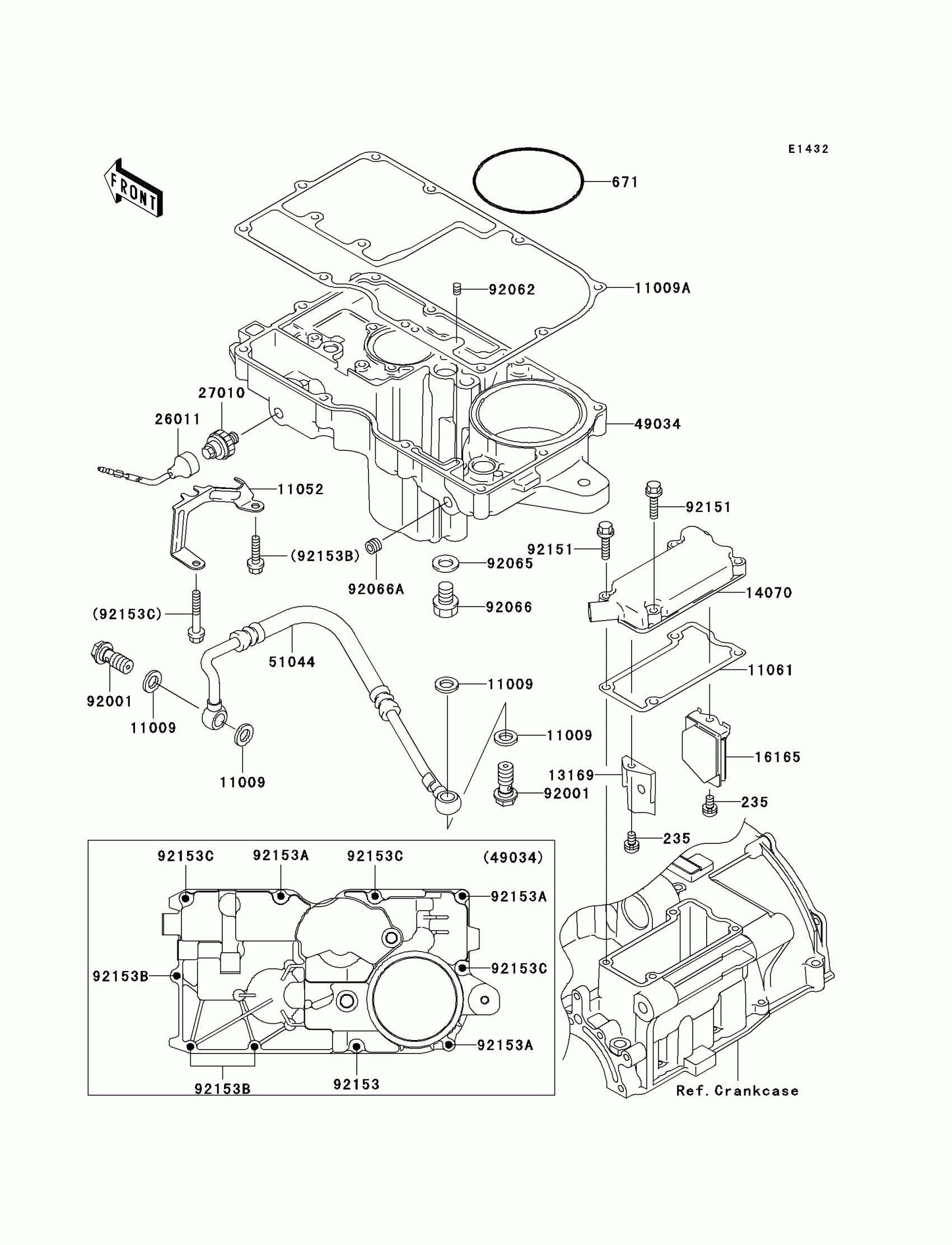

Kawasaki ZRX1200R Breather Cover/Oil Pan Diagram

Description

Price

235

SCREW-PAN-WP-CROS,6X10

235B0610

$3.51

671

O RING,90MM

671B2590

$9.91

11009

GASKET,14X19.5X1.4

11009-1461

$4.96

11009A

GASKET,OIL PAN

11009-1981

$25.51

11052

BRACKET

11052-1961

$12.24

11061

GASKET,BREATHER BODY

11061-1102

$11.31

13169

PLATE,BREATHER

13169-1967

$7.60

14070

BODY-BREATHER

14070-1086

$88.15

16165

SEPARATOR,OIL

16165-1053

$48.91

26011

WIRE-LEAD

26011-1807

$21.12

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

49034

PAN-OIL

49034-1139

$217.64

51044

TUBE-ASSY,OIL

51044-1199

$142.03

92001

BOLT,14X28.5

92001-1930

$9.51

92062

NOZZLE,6X8,BLACK

92062-1079

$8.58

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG,PT1/8X7

92066-1342

$6.51

92151

BOLT,FLANGED,6X25

92151-1546

$2.37

92153

BOLT,6X25

92153-1054

$2.80

92153A

BOLT,6X40

92153-1055

$3.29

92153B

BOLT,6X25

92153-1071

$2.80

92153C

BOLT,6X40

92153-1072

$3.29
