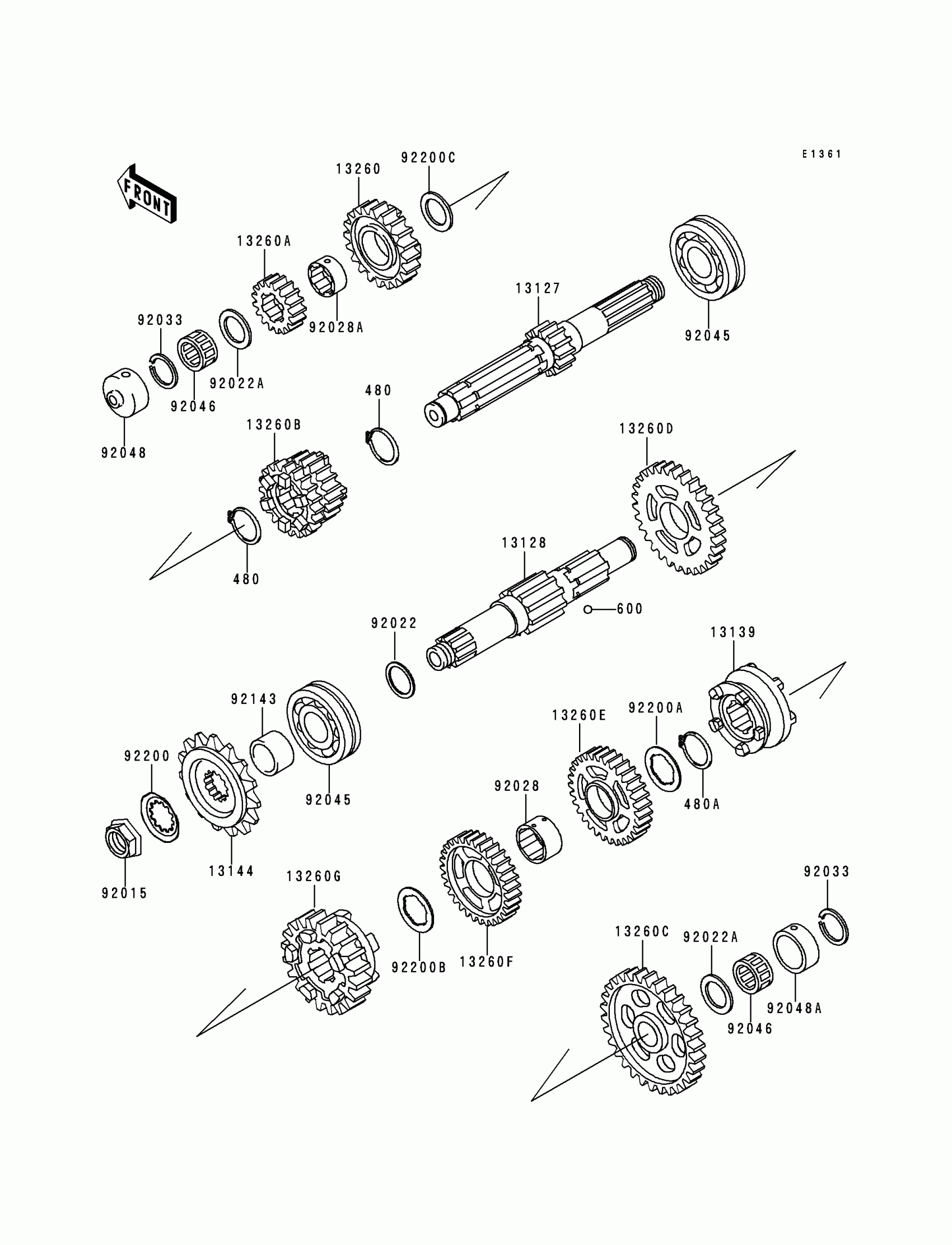

Kawasaki ZRX1100 Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

480A

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1257

$265.97

13128

SHAFT-TRANSMISSION OUTPUT

13128-1218

$249.43

13139

SHIFTER

13139-1079

$124.20

13144

SPROCKET-OUTPUT,17T

13144-1283

$51.52

13260

GEAR,INPUT TOP,28T

13260-1500

Unavailable

13260A

GEAR,INPUT 2ND,19T

13260-1663

$151.54

13260B

GEAR,INPUT 3RD&4TH,23T&26T

13260-1664

$236.42

13260C

GEAR,OUTPUT LOW,41T

13260-1665

$216.79

13260D

GEAR,OUTPUT 2ND,37T

13260-1666

$197.47

13260E

GEAR,OUTPUT 3RD,34T

13260-1667

$197.47

13260F

GEAR,OUTPUT 4TH,31T

13260-1668

$208.48

13260G

GEAR,OUTPUT TOP,29T

13260-1669

$197.47

92015

NUT,20MM

92015-1210

$18.81

92022

WASHER,28.3X42X2.9

92022-1219

$15.04

92022A

WASHER,22.3X35X1.6

92022-212

$9.91

92028

BUSHING,OUTPUT,3RD&4TH

92028-1753

$40.69

92028A

BUSHING,INPUT,TOP GEAR

92028-1802

$41.67

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92045

BEARING-BALL

92045-1186

$64.88

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92048

RACE,INPUT SHAFT

92048-1052

$55.84

92048A

RACE,30X38X15

92048-1053

$28.71

92143

COLLAR,28X40X33.5

92143-1731

$32.25

92200

WASHER,TOOTHED,23.9X45X1.0

92200-1234

$6.07

92200A

WASHER,TOOTHED,28X40X2

92200-1277

$11.99

92200B

WASHER,29.9X40X1.5

92200-1278

$11.99

92200C

WASHER,25.5X35.5X1.5

92200-1340

$6.47
