Description

Price

410

W-PLAIN-S

410E1000

$0.44

601

BEARING-BALL,#6004

601A6004

$9.04

33001

ARM-COMP-SWING

33001-1522

Unavailable

33032

SHAFT-SWING ARM

33032-1182

$110.48

42036

SLEEVE,REAR AXLE,LH,A.GOLD

42036-1153-ES

$65.05

42036A

SLEEVE,SWING ARM,L=213.5

42036-1259

$58.48

42036B

SLEEVE,REAR AXLE,RH,A.GOLD

42036-1265-ES

$71.67

49001

NIPPLE-GREASE

49001-1051

$2.11

55020

GUARD,CHAIN

55020-1614

$36.17

92002

BOLT,SOCKET,10X40

92002-1452

$7.14

92033

RING-SNAP,42MM

92033-1041

$4.64

92046

BEARING-NEEDLE,BM2817

92046-1111

$17.68

92046A

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92143

COLLAR,SWING ARM,L=12.5

92143-1227

$6.84

92210

NUT,PIVOT,16MM

92210-1077

$14.95

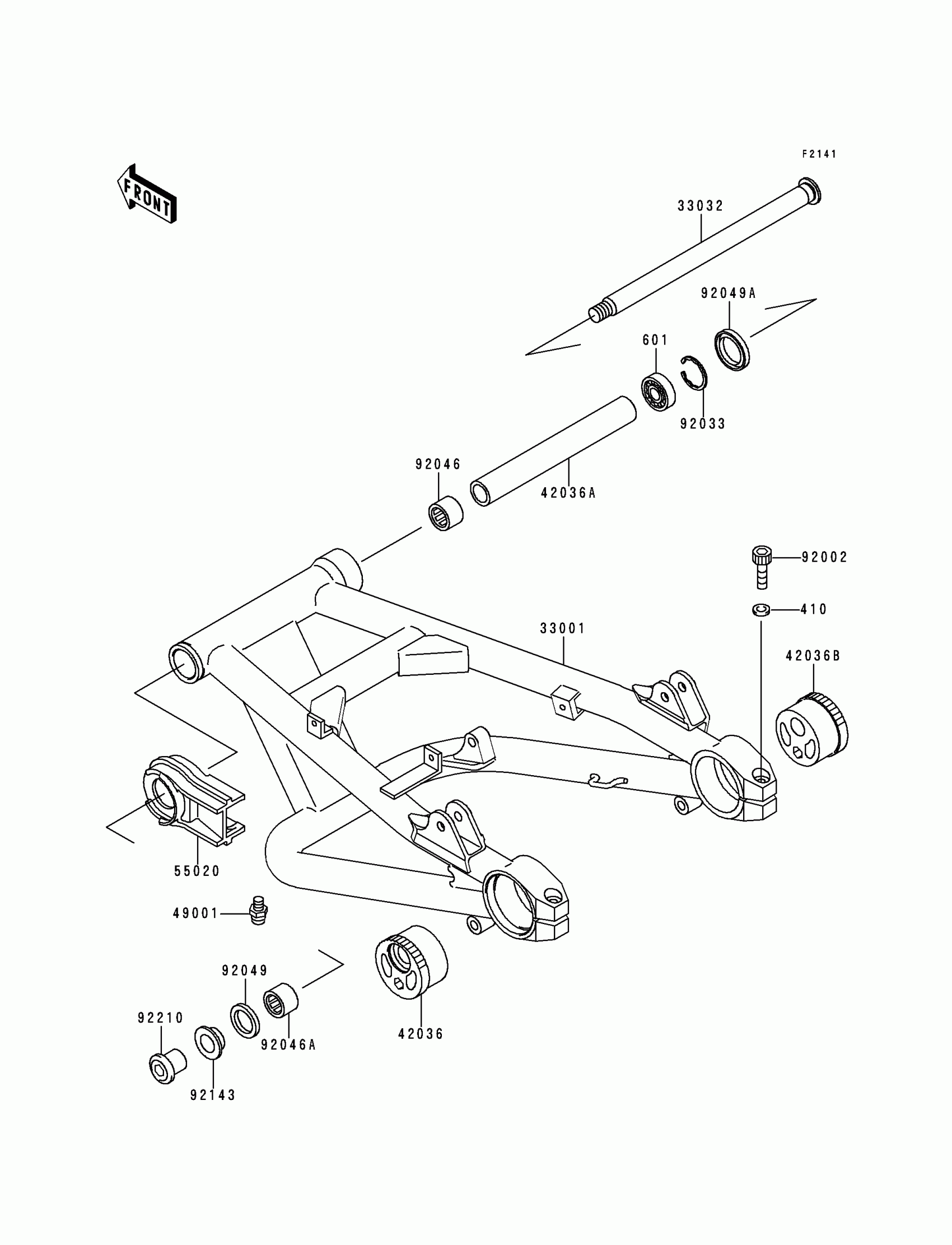

Kawasaki ZRX1100 Swingarm Diagram
