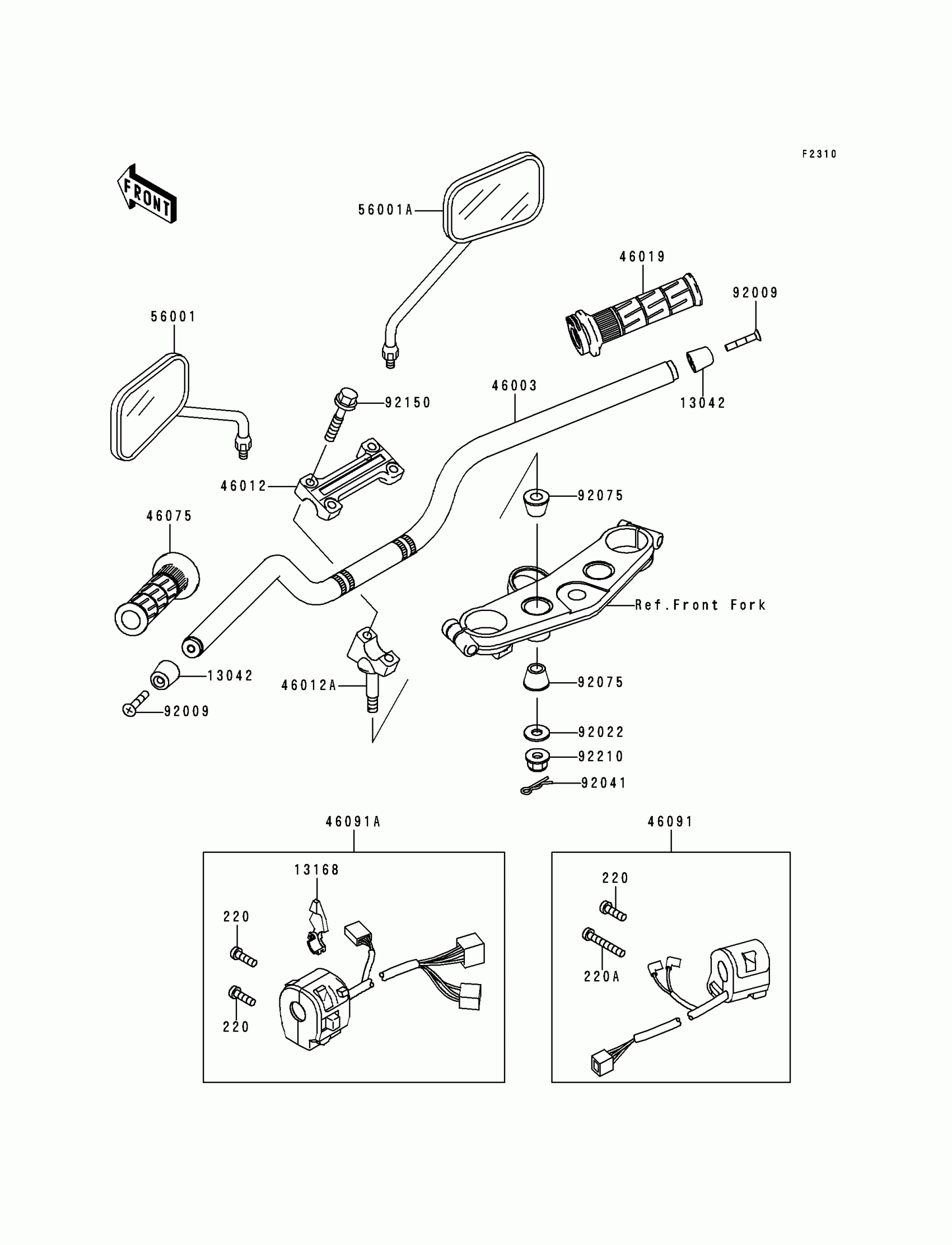

Kawasaki ZRX1100 Handlebar Diagram

#

Description
Price

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X40

220C0540

Unavailable

13042

WEIGHT,HANDLE

13042-1005

$29.48

13168

LEVER,CHOKE

13168-1516

$7.46

46003

HANDLE

46003-1461

Unavailable

46012

HOLDER-HANDLE,UPP

46012-1266

$119.68

46012A

HOLDER-HANDLE,LWR

46012-1274

$74.58

46019

GRIP-ASSY,THROTTLE

46019-1090

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46091

HOUSING-ASSY-CONTROL,RH

46091-1672

$157.71

46091A

HOUSING-ASSY-CONTROL,LH

46091-1716

Unavailable

56001

MIRROR-ASSY,LH

56001-1473

$92.11

56001A

MIRROR-ASSY,RH

56001-1474

Unavailable

92009

SCREW,8X45

92009-1257

$3.57

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92041

COTTER,8MM

92041-1060

$3.15

92075

DAMPER,HANDLE HOLDER

92075-039

$3.57

92150

BOLT,FLANGED,8X35

92150-1835

$6.59

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39
