Description

Price

311

NUT-HEX

311C0500

$0.43

14090

COVER,SPEEDO&TACHOMETER

14090-1603

$34.03

14090A

COVER,METER,LWR

14090-1607

$103.89

14090B

COVER,PILOT BOX,UPP

14090-1618

$78.73

14090C

COVER,METER HOUSING

14090-1842

$121.59

23008

SOCKET-ASSY,METER

23008-1583

$172.09

25008

BRACKET-METER

25008-1213

$70.10

25009

WASHER,5.2X16X1.2

25009-004

$3.65

25015

TACHOMETER,X1000R/MIN

25015-1345

$449.32

25023

COVER-METER CASE,UPP

25023-1230

$149.12

28011

METER,FUEL

28011-1160

Unavailable

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92009A

SCREW,TAPPING,3X16

92009-1391

$3.65

92009B

SCREW,TAPPING,4X14

92009-1503

$3.65

92009C

SCREW,TAPPING,4X16

92009-1601

$3.24

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92069A

BULB,14V 3W,T6.5

92069-1068

$5.00

92069B

BULB,12V 1.7W,T6.5

92069-1070

$6.52

92077

KNOB,METER

92077-1073

$18.32

92160

DAMPER

92160-1178

$5.64

25005

SPEEDOMETER,KPH

25005-1621

Unavailable

25005A

SPEEDOMETER,MPH

25005-1622

$327.58

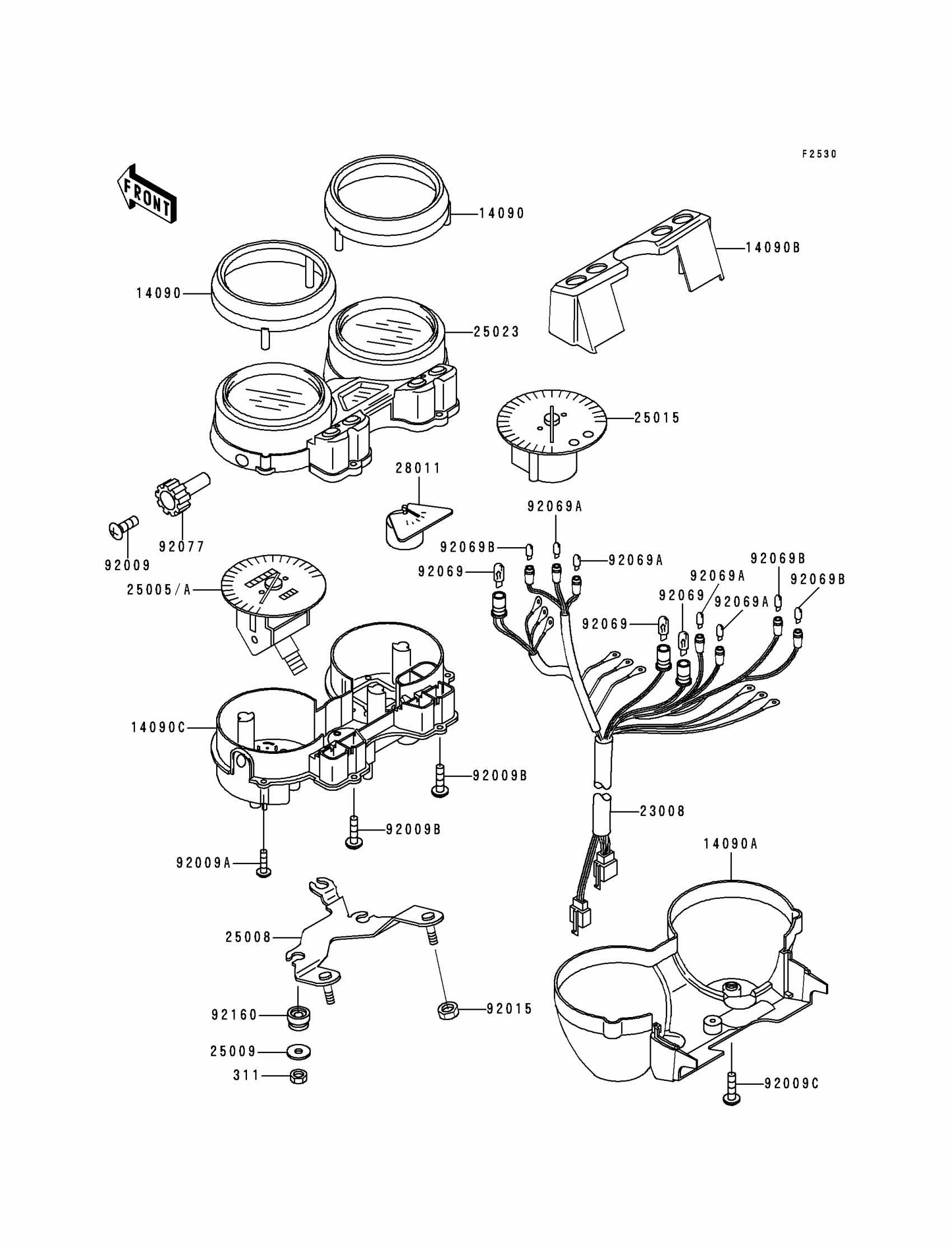

Kawasaki ZRX1100 Meter(s) Diagram

NUT-HEX

COVER,SPEEDO&TACHOMETER

COVER,METER,LWR

COVER,PILOT BOX,UPP

COVER,METER HOUSING

SOCKET-ASSY,METER

BRACKET-METER

WASHER,5.2X16X1.2

TACHOMETER,X1000R/MIN

COVER-METER CASE,UPP

METER,FUEL

SCREW,2X6,BLACK

SCREW,TAPPING,3X16

SCREW,TAPPING,4X14

SCREW,TAPPING,4X16

NUT,FLANGED,6MM,BLACK

BULB,12V 1.7W,T10

BULB,14V 3W,T6.5

BULB,12V 1.7W,T6.5

KNOB,METER

DAMPER

SPEEDOMETER,KPH

SPEEDOMETER,MPH
