Description

Price

224

SCREW-PAN-WP-CROS

224C0625

$1.00

13091

HOLDER

13091-1562

$8.96

13169

PLATE,CHAIN GUIDE

13169-1748

$15.45

21007

ROTOR,PULSING

21007-1277

$49.62

21119

IGNITER

21119-1491

Unavailable

21121

COIL-IGNITION,#1

21121-1267

$160.51

21121A

COIL-IGNITION,#2

21121-1268

$150.43

21160

CAP-ASSY-PLUG

21160-1087

$54.45

59026

COIL-PULSING

59026-1132

$147.42

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT

92015-1700

$8.58

92070

PLUG-SPARK,CR9EK(NGK)

92070-1145

$10.53

92070A

PLUG-SPARK,CR8EK(NGK)

92070-1158

$10.53

92070B

Not Available As Spare Part - Friction Washer

Unavailable

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92150

BOLT,SOCKET,5X14

92150-1180

$3.92

92150A

BOLT,FLANGED-SMALL,6X12

92150-1841

$4.31

92160

DAMPER

92160-1091

$5.24

92200

WASHER,ROTOR

92200-1173

$9.59

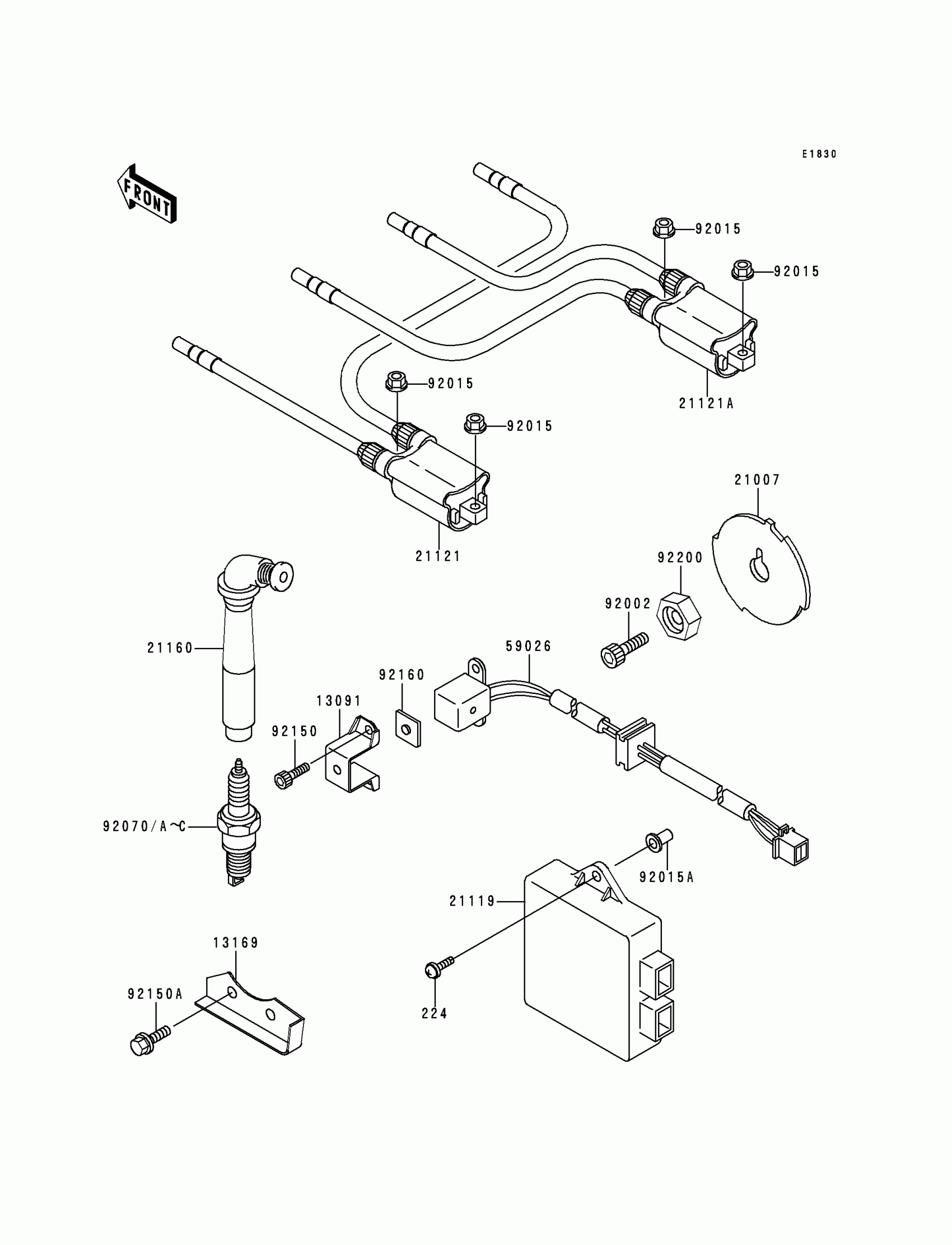

Kawasaki ZRX1100 Ignition System Diagram

SCREW-PAN-WP-CROS

HOLDER

PLATE,CHAIN GUIDE

ROTOR,PULSING

IGNITER

COIL-IGNITION,#1

COIL-IGNITION,#2

CAP-ASSY-PLUG

COIL-PULSING

BOLT,SOCKET,8X25

NUT,FLANGED,6MM

NUT

PLUG-SPARK,CR9EK(NGK)

PLUG-SPARK,CR8EK(NGK)

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

BOLT,SOCKET,5X14

BOLT,FLANGED-SMALL,6X12

DAMPER

WASHER,ROTOR
