2000 Kawasaki ZRX1100 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

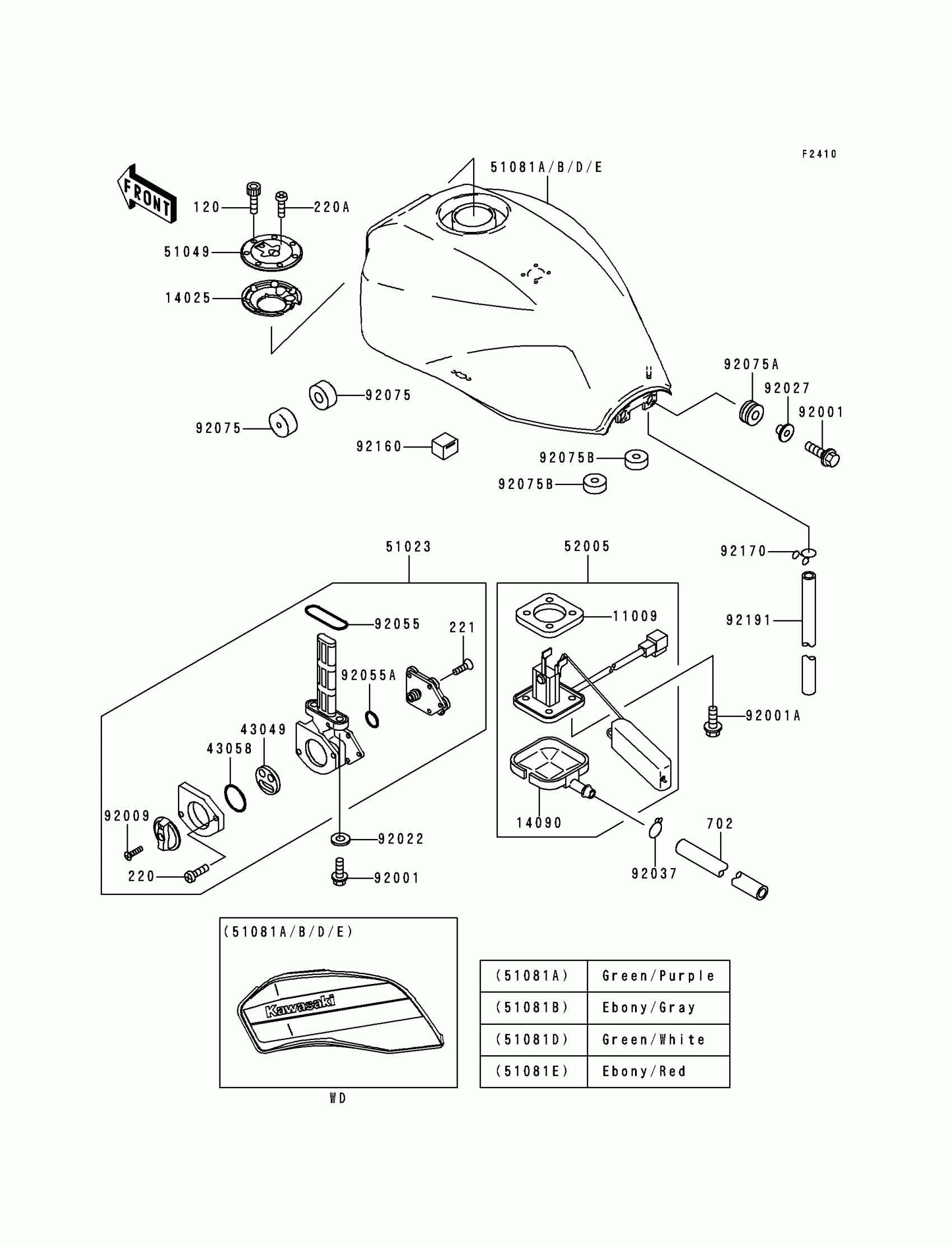

2000 Kawasaki ZRX1100 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120R0512

1

$4.08

In stock

220

1

$0.63

In stock

220A

SCREW-PAN-CROSS

220C0508

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

702

1

$10.53

In stock

11009

GASKET,FUEL GAUGE

11009-1656

1
Out of stock

14025

COVER,TANK CAP

14025-1913

1

$19.98

In stock

14090

COVER,FUEL GAUGE

14090-1624

1

$16.00

In stock

43049

PACKING,TAP VALVE

43049-1075

1
Out of stock

43058

RING,TAP LEVER

43058-1083

1

$6.90

In stock

51023

TAP-ASSY,FUEL

51023-1219

1

$131.35

In stock

51049

CAP-TANK,FUEL

51049-1079

1

$136.32

In stock

51081D

TANK-COMP-FUEL,GREEN/WHITE

51081-5196-U7

1
Out of stock

52005

GAUGE,FUEL

52005-1117

1
Out of stock

92001

BOLT,6X25

92001-1524

1

$1.78

In stock

92001A

BOLT,FUEL GAUGE

92001-1705

1
Out of stock

92009

SCREW,4X12

92009-1742

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

1

$3.97

In stock

92055A

RING-O

92055-1539

1

$5.11

In stock

92075

DAMPER,FUEL TANK

92075-101

1

$4.93

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92075B

DAMPER

92075-1737

1

$6.82

In stock

92160

DAMPER

92160-1626

1

$5.14

In stock

92170

CLAMP,TUBE

92170-1834

1

$3.70

In stock

92191

TUBE,7X12X600

92191-1138

1

$19.19

In stock

51081B

TANK-COMP-FUEL,EBONY/GRAY

51081-5089-T4

1
Out of stock

51081E

TANK-COMP-FUEL,EBONY/RED

51081-5219-J3

1
Out of stock
